- RS Stock No.:
- 207-8547
- Mfr. Part No.:
- 22320 EK/C3
- Brand:
- SKF
Available to back order for despatch 29/07/2024
Price Each
£653.78
(exc. VAT)
£784.54
(inc. VAT)
Units | Per unit |
---|---|
1 + | £653.78 |
- RS Stock No.:
- 207-8547
- Mfr. Part No.:
- 22320 EK/C3
- Brand:
- SKF
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- SE
Product Details

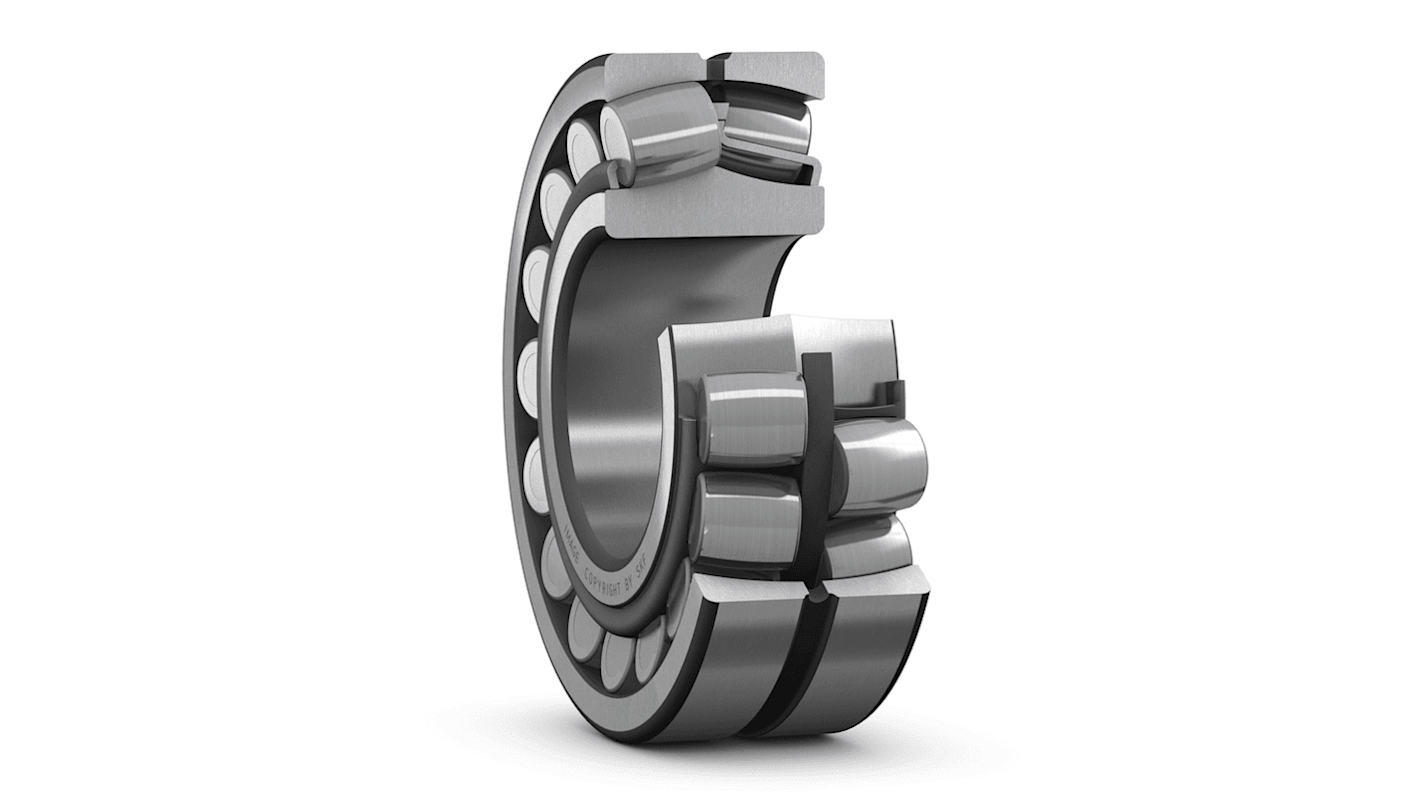

SKF Spherical Roller Bearing, 100 mm ID, 215 mm OD - 22320 EK/C3
This spherical roller bearing from SKF is ideal for handling very heavy radial and axial loads where misalignment or shaft deflections are likely. Its rollers, outer ring raceway and inner ring raceways are made of steel for superior durability and resistance to corrosion, making it a good choice for use in harsh industrial environments. Cylindrical steel rollers help maintain separation between the bearing's moving parts to reduce friction, minimising wear keeping maintenance needs low.
• Tapered bore allows for quick installation and simple manoeuvrability along the shaft
• Dynamic load rating of 847 kN and static load rating of 950 kN for powerful performance in heavy-duty applications
• Annular groove and three lubrication holes make greasing simple for ease of maintenance
• Heat-stabilised up to +200°C for use in high-temperature environments
• Dynamic load rating of 847 kN and static load rating of 950 kN for powerful performance in heavy-duty applications
• Annular groove and three lubrication holes make greasing simple for ease of maintenance
• Heat-stabilised up to +200°C for use in high-temperature environments
Application Information
• Wind energy
• Mining machinery
• Construction equipment
• Mining machinery
• Construction equipment
Can I use this bearing in high-speed applications?
This bearing has a reference speed of 2400 rpm (rotations per minute) and a limiting speed of 3000 rpm, so it's suitable for applications involving high speeds.
Specifications
Attribute | Value |
---|---|
Inside Diameter | 100mm |
Outside Diameter | 215mm |
Roller Bearing Type | Spherical |
Race Width | 73mm |
Bore Type | Tapered |
Material | Steel |
Static Load Rating | 950kN |
Dynamic Load Rating | 847kN |
