- RS Stock No.:
- 207-8545
- Mfr. Part No.:
- 22320 EJA/VA405
- Brand:
- SKF
Available to back order for despatch 29/07/2024
Price Each
£752.60
(exc. VAT)
£903.12
(inc. VAT)
Units | Per unit |
---|---|
1 + | £752.60 |
- RS Stock No.:
- 207-8545
- Mfr. Part No.:
- 22320 EJA/VA405
- Brand:
- SKF
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- SE
Product Details

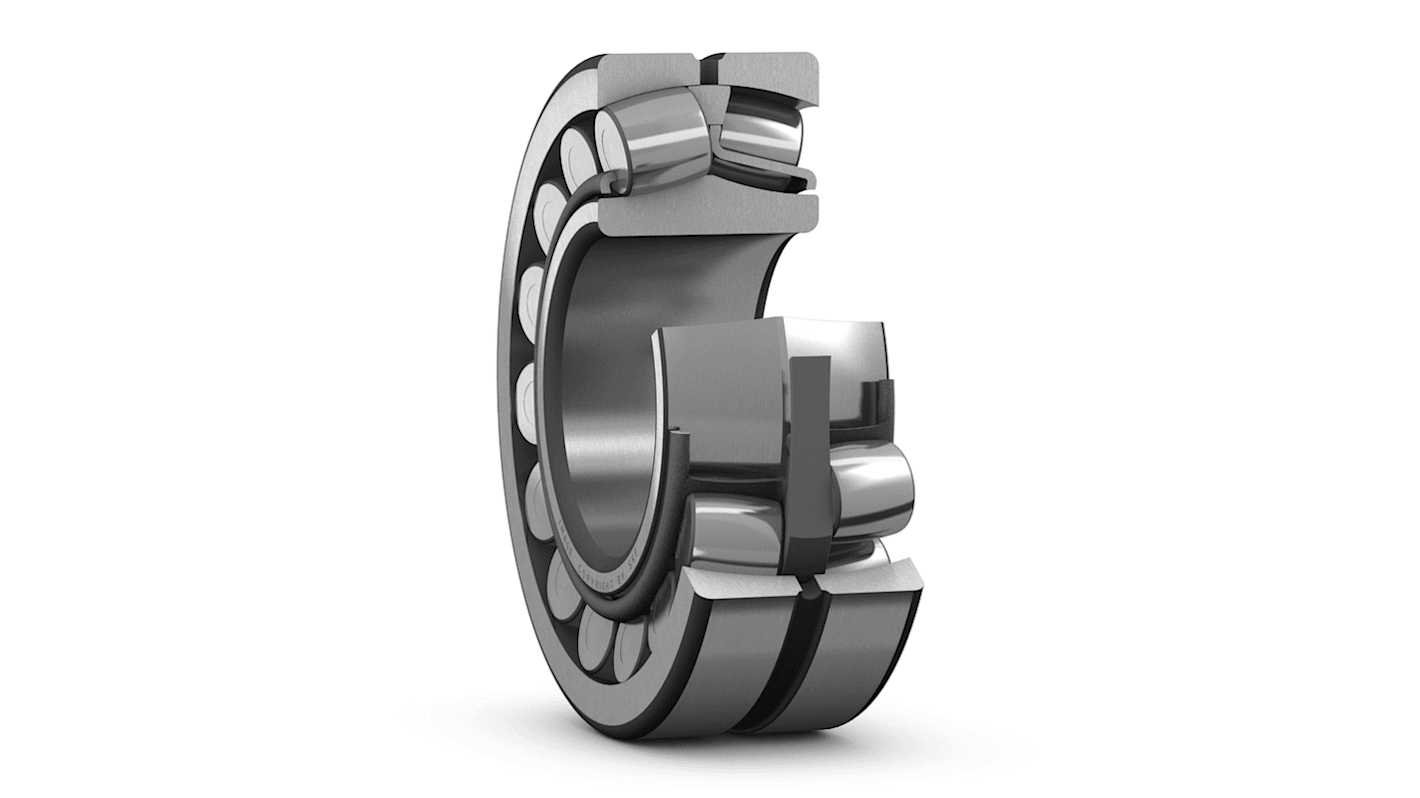

SKF Spherical Roller Bearing, 100 mm ID, 215 mm OD - 22320 EJA/VA405
Make light work of heavy loads with this robust roller bearing from SKF. It's a sturdy option for handling challenging radial or axial load applications where shaft deflection or misalignment is likely to occur. The bearing's optimised internal design gives it increased load-carrying capacity, so it can handle heavy-duty jobs. Its strong steel cage withstands high temperatures and is resistant to corrosion, making it suitable for use in demanding environments. This bearing is particularly well-suited for applications that experience high levels of vibration.
• High dynamic load rating of 847 kN for use in extremely heavy-duty applications
• Efficient lubrication thanks to its annular groove and three lubrication holes on the outer ring
• SKF-patented self-guiding rollers for reduced friction and minimum heat generation
• High dimensional stability to reduce the risk of the bearing cracking under strain
• Efficient lubrication thanks to its annular groove and three lubrication holes on the outer ring
• SKF-patented self-guiding rollers for reduced friction and minimum heat generation
• High dimensional stability to reduce the risk of the bearing cracking under strain
Application Information
• Wind power generation industry
• Mining and metals industries
• Material handling
• Mining and metals industries
• Material handling
Does this bearing need a lot of maintenance?
The roller bearing is a low-maintenance choice thanks to its ability to accommodate misalignment. It also produces low levels of friction, so day-to-day wear is minimised. Thanks to the three holes on the outer ring, it's simple to apply lubricatant.
The roller bearing is a low-maintenance choice thanks to its ability to accommodate misalignment. It also produces low levels of friction, so day-to-day wear is minimised. Thanks to the three holes on the outer ring, it's simple to apply lubricant.
Specifications
Attribute | Value |
---|---|
Inside Diameter | 100mm |
Outside Diameter | 215mm |
Roller Bearing Type | Spherical |
Race Width | 73mm |
Material | Steel |
Static Load Rating | 950000N |
Cage Material | Steel |
Number of Rows | 2 |
Dynamic Load Rating | 847000N |
End Type | Open |
Reference Speed | 2400rpm |
Limiting Speed | 3000rpm |
Fatigue Limit Load | 88000N |
