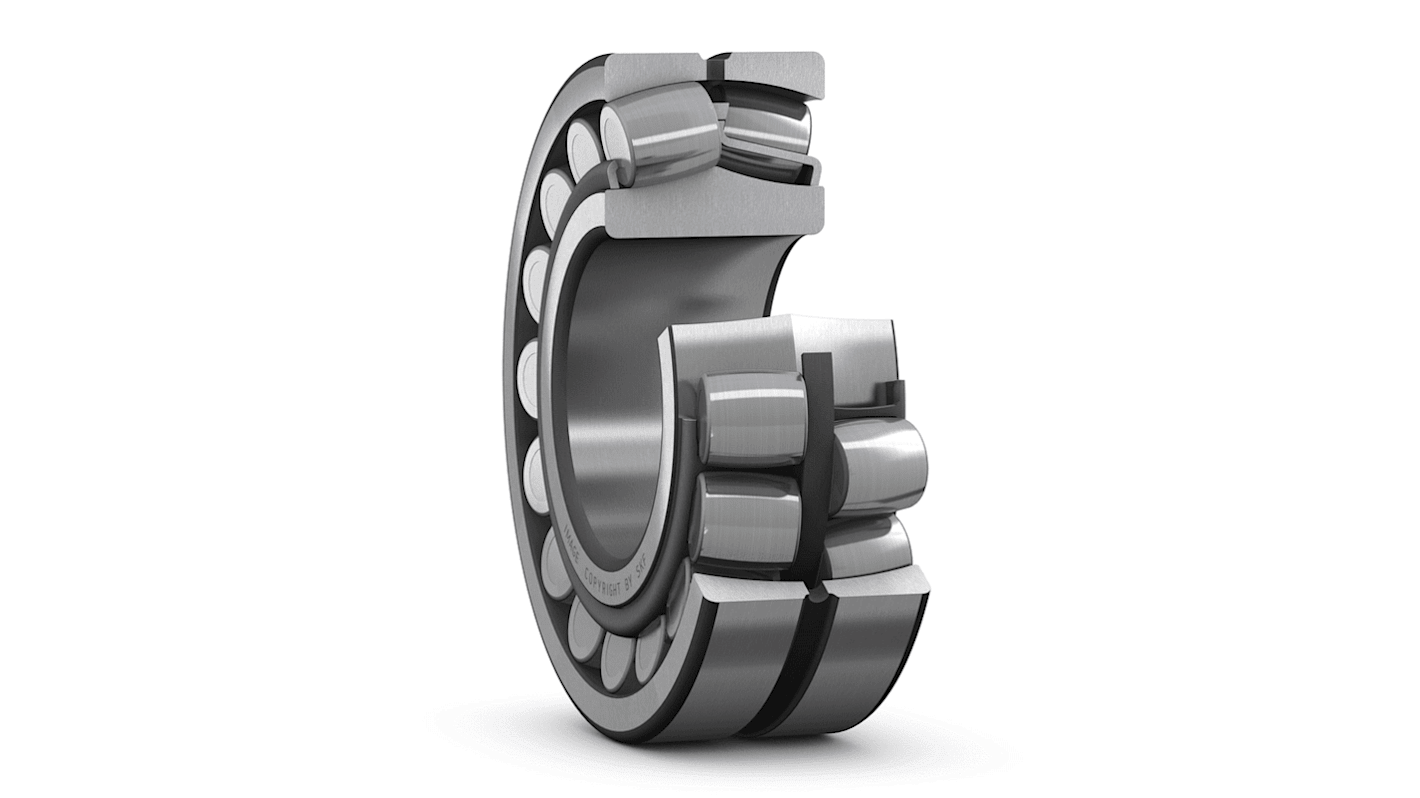

SKF 22226 EK 130mm I.D Spherical Roller Bearing, 230mm O.D
- RS Stock No.:
- 207-8475
- Mfr. Part No.:
- 22226 EK
- Brand:
- SKF
Subtotal (1 unit)*
£680.94
(exc. VAT)
£817.13
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £680.94 |
*price indicative
- RS Stock No.:
- 207-8475
- Mfr. Part No.:
- 22226 EK
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 130mm | |
Outside Diameter | 230mm | |
Roller Bearing Type | Spherical | |
Race Width | 64mm | |
Bore Type | Tapered | |
Static Load Rating | 930kN | |
Number of Rows | 2 | |
Roller Material | Steel | |
Dynamic Load Rating | 758kN | |
End Type | Open | |
Reference Speed | 2600rpm | |
Limiting Speed | 3600rpm | |
Fatigue Limit Load | 88kN | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 130mm | ||
Outside Diameter 230mm | ||
Roller Bearing Type Spherical | ||
Race Width 64mm | ||
Bore Type Tapered | ||
Static Load Rating 930kN | ||
Number of Rows 2 | ||
Roller Material Steel | ||
Dynamic Load Rating 758kN | ||
End Type Open | ||
Reference Speed 2600rpm | ||
Limiting Speed 3600rpm | ||
Fatigue Limit Load 88kN | ||
- COO (Country of Origin):
- SE
SKF Roller Bearing, 130 mm ID, 230 mm OD - 22226 EK
Use this roller bearing from SKF when you need an effective way to support a rotating shaft. It's a versatile choice as it can accommodate both radial and axial movement. Two separate rows of symmetrical cylinder-shaped rollers enable it to handle very heavy loads. The roller bearing is made of steel, giving it a good level of strength, durability and resistance to corrosion. This will ensure reliable performance and a long lifespan, even in harsh industrial settings. It includes three lubrication holes to make greasing simple.
• Compact structure
• High precision
• Tapered bore type
• Inside diameter of 130 mm
• Outside diameter of 230 mm
• Mass of 11 kg
• High precision
• Tapered bore type
• Inside diameter of 130 mm
• Outside diameter of 230 mm
• Mass of 11 kg
Application Information
• Mining industry
• Construction
• Marine equipment
• Processing and packaging applications
• Construction
• Marine equipment
• Processing and packaging applications
What type of maintenance does this component require?
A benefit of this roller bearing is that it has a rounded raceway that allows it to handle initial shaft misalignment, as well as shaft deflection. This means that you'll rarely need to carry out maintenance or repairs to keep your bearing systems functional.
