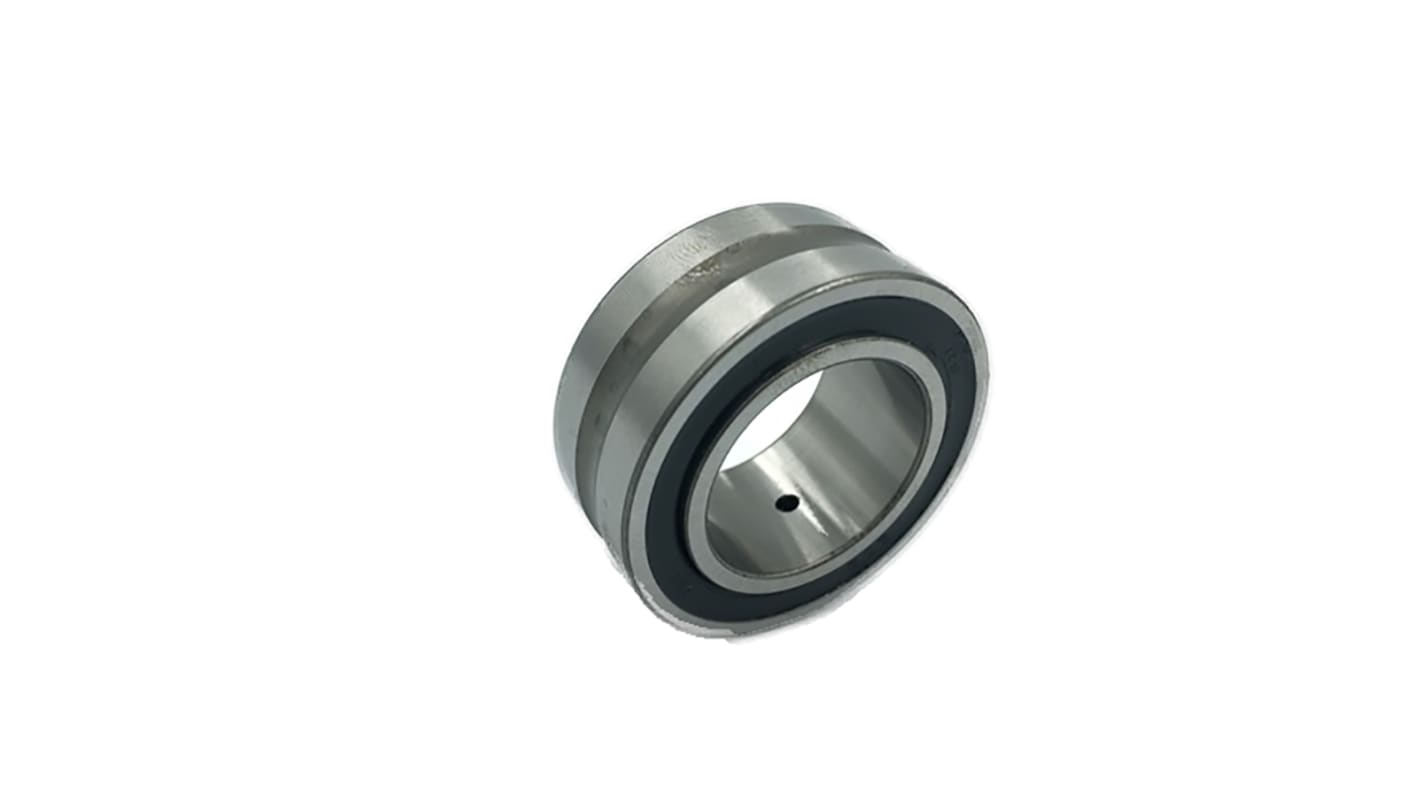

INA NA4900-2RSR-XL 10 mm I.D Roller Bearing Needle, 22 mm O.D
- RS Stock No.:
- 194-7279
- Mfr. Part No.:
- NA4900-2RSR-XL
- Brand:
- INA
Bulk discount available
Subtotal (1 unit)*
£35.28
(exc. VAT)
£42.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £35.28 |
| 5 - 9 | £33.87 |
| 10 - 24 | £33.16 |
| 25 + | £32.45 |
*price indicative
- RS Stock No.:
- 194-7279
- Mfr. Part No.:
- NA4900-2RSR-XL
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Roller Bearing | |
| Inside Diameter | 10 mm | |
| Race Width | 14mm | |
| Bore Type | Parallel | |
| End Type | Sealed | |
| Static Load Rating | 6.9kN | |
| Outside Diameter | 22 mm | |
| Standards/Approvals | No | |
| Dynamic Load Rating | 7.7kN | |
| Bearing Type | Needle | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Roller Bearing | ||
Inside Diameter 10 mm | ||
Race Width 14mm | ||
Bore Type Parallel | ||
End Type Sealed | ||
Static Load Rating 6.9kN | ||
Outside Diameter 22 mm | ||
Standards/Approvals No | ||
Dynamic Load Rating 7.7kN | ||
Bearing Type Needle | ||
The Bearings can support high to very high radial forces
Are used when the load carrying capacity or accuracy of drawn cup needle roller bearings with open ends is no longer sufficient and the high load capacity of cylindrical roller bearings is not yet required
Can only support radial loads and, as a result, are highly suitable for use as non-locating bearings (they permit axial displacement of the shaft relative to the housing in the bearing)
Permit high speeds in spite of line contact
Compensate misalignments between the shaft and housing (aligning needle roller bearings)
Require only a very small radial design envelope, particularly if the bearing arrangement is designed without an inner ring
Are available in numerous sizes and designs
Result in particularly compact, cost-effective and economical bearing arrangements
