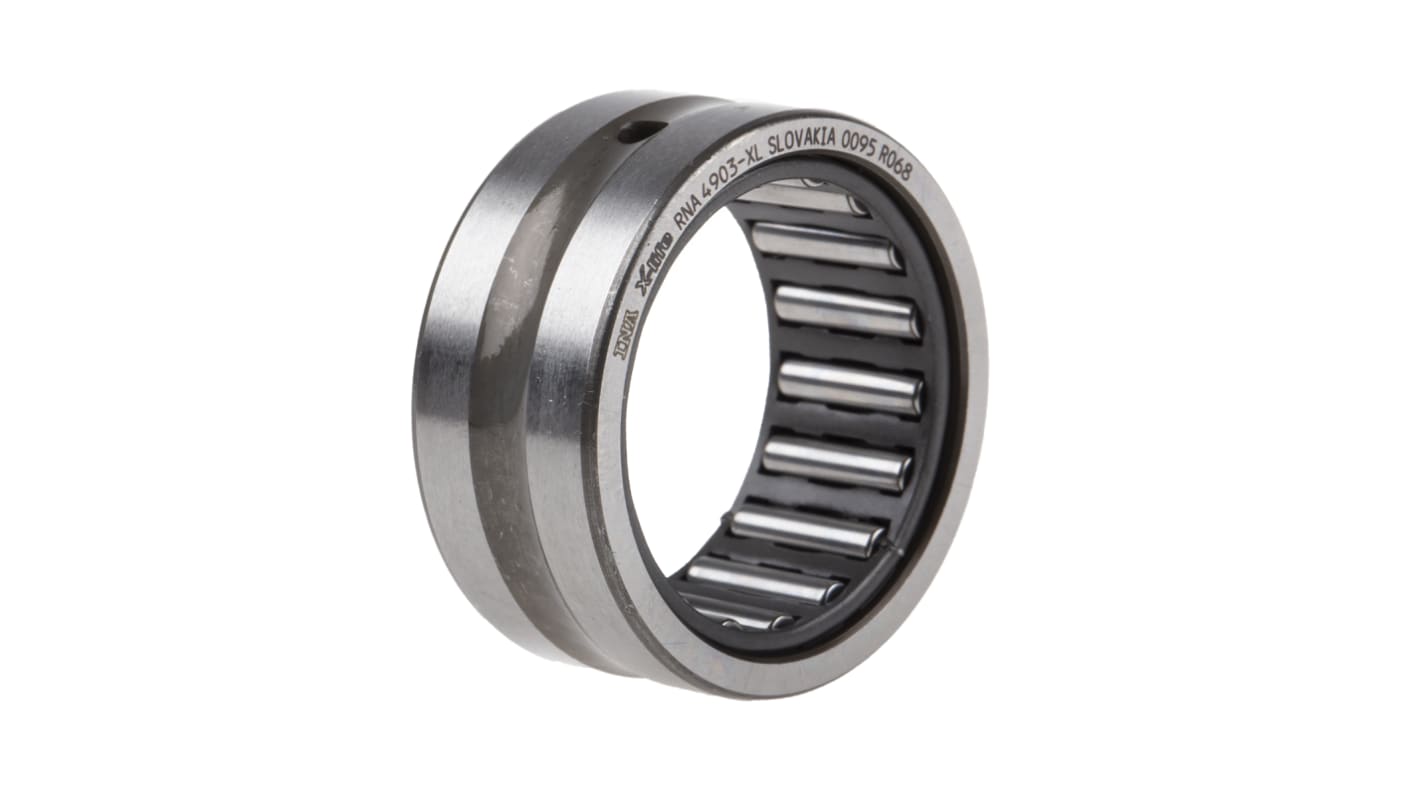

INA RNA4903-XL 22 mm ID Roller Bearing Needle, 30 mm OD
- RS Stock No.:
- 174-1412
- Mfr. Part No.:
- RNA4903-XL
- Brand:
- INA
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£25.53
(exc. VAT)
£30.64
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £25.53 |
| 5 - 9 | £24.52 |
| 10 - 24 | £23.99 |
| 25 + | £23.49 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
Learn more about RS Better World products
- RS Stock No.:
- 174-1412
- Mfr. Part No.:
- RNA4903-XL
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Roller Bearing | |
| Inside Diameter | 22mm | |
| Race Width | 13mm | |
| Bore Type | Parallel | |
| Cage Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 14.6kN | |
| Limiting Speed | 20000rpm | |
| Maximum Speed - Grease | 12000rpm | |
| Maximum Speed - Oil | 21000rpm | |
| Standards/Approvals | No | |
| End Type | Open | |
| Dynamic Load Rating | 12.4kN | |
| Outside Diameter | 30mm | |
| Better World Claim | Extended Product Life, Saves Energy | |
| Better World Product | Yes | |
| Bearing Type | Needle | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Roller Bearing | ||
Inside Diameter 22mm | ||
Race Width 13mm | ||
Bore Type Parallel | ||
Cage Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 14.6kN | ||
Limiting Speed 20000rpm | ||
Maximum Speed - Grease 12000rpm | ||
Maximum Speed - Oil 21000rpm | ||
Standards/Approvals No | ||
End Type Open | ||
Dynamic Load Rating 12.4kN | ||
Outside Diameter 30mm | ||
Better World Claim Extended Product Life, Saves Energy | ||
Better World Product Yes | ||
Bearing Type Needle | ||
Needle roller bearings with ribs are single or double row units comprising machined outer rings with ribs, needle roller and cage assemblies and removable inner rings. Needle roller bearings with ribs are X-life bearings. These bearings have optimised raceway surfaces. This gives higher load carrying capacity and longer rating life.
Needle roller bearings without inner ring
Needle roller bearings with inner ring
Displacement of the inner ring
Sealing
Lubrication
Sealing rings and wider inner rings
Operating temperature
Cages
Suffixes
