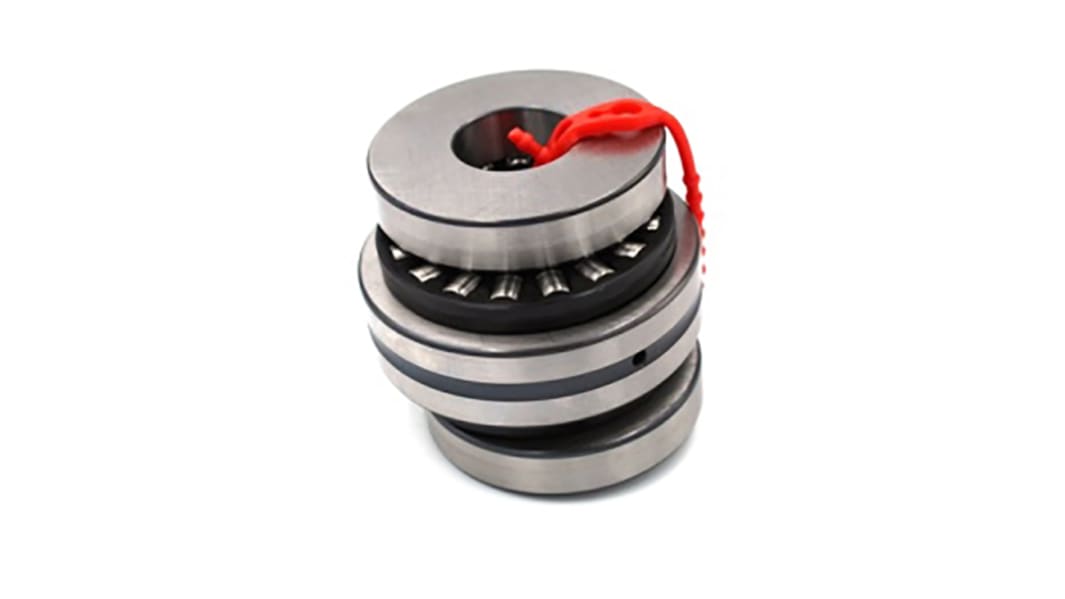

INA ZARN2052-TV-A 20mm I.D Combined Needle Roller & Cylindrical Roller Thrust Bearing Combined Needle Roller &
- RS Stock No.:
- 191-4545
- Mfr. Part No.:
- ZARN2052-TV-A
- Brand:
- INA
Save 3% when you buy 5 units
Subtotal (1 unit)*
£567.56
(exc. VAT)
£681.07
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £567.56 |
5 + | £544.86 |
*price indicative
- RS Stock No.:
- 191-4545
- Mfr. Part No.:
- ZARN2052-TV-A
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | INA | |
Inside Diameter | 20mm | |
Outside Diameter | 52mm | |
Roller Bearing Type | Combined Needle Roller & Cylindrical Roller Thrust Bearing | |
Race Width | 46mm | |
Bore Type | Parallel | |
Static Load Rating | 22400 (Radial) N, 76000 (Axial) N | |
Number of Rows | 2 | |
Dynamic Load Rating | 14900 (Radial) N, 33500 (Axial) N | |
End Type | Open | |
Fatigue Limit Load | 3400 (Radial) N, 6400 (Axial) N | |
Select all | ||
---|---|---|
Brand INA | ||
Inside Diameter 20mm | ||
Outside Diameter 52mm | ||
Roller Bearing Type Combined Needle Roller & Cylindrical Roller Thrust Bearing | ||
Race Width 46mm | ||
Bore Type Parallel | ||
Static Load Rating 22400 (Radial) N, 76000 (Axial) N | ||
Number of Rows 2 | ||
Dynamic Load Rating 14900 (Radial) N, 33500 (Axial) N | ||
End Type Open | ||
Fatigue Limit Load 3400 (Radial) N, 6400 (Axial) N | ||
