SKF NKX 15 Z 15mm I.D Combined Needle Roller & Thrust Ball Bearing Combined Needle Roller & Thrust Ball Bearing, 24mm
- RS Stock No.:
- 588-487
- Mfr. Part No.:
- NKX 15 Z
- Brand:
- SKF
Subtotal (1 pack of 20 units)*
£750.55
(exc. VAT)
£900.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 + | £750.55 | £37.528 |
*price indicative
- RS Stock No.:
- 588-487
- Mfr. Part No.:
- NKX 15 Z
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 15mm | |
Outside Diameter | 24mm | |
Roller Bearing Type | Combined Needle Roller & Thrust Ball Bearing | |
Race Width | 23mm | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 15mm | ||
Outside Diameter 24mm | ||
Roller Bearing Type Combined Needle Roller & Thrust Ball Bearing | ||
Race Width 23mm | ||
- COO (Country of Origin):
- SK

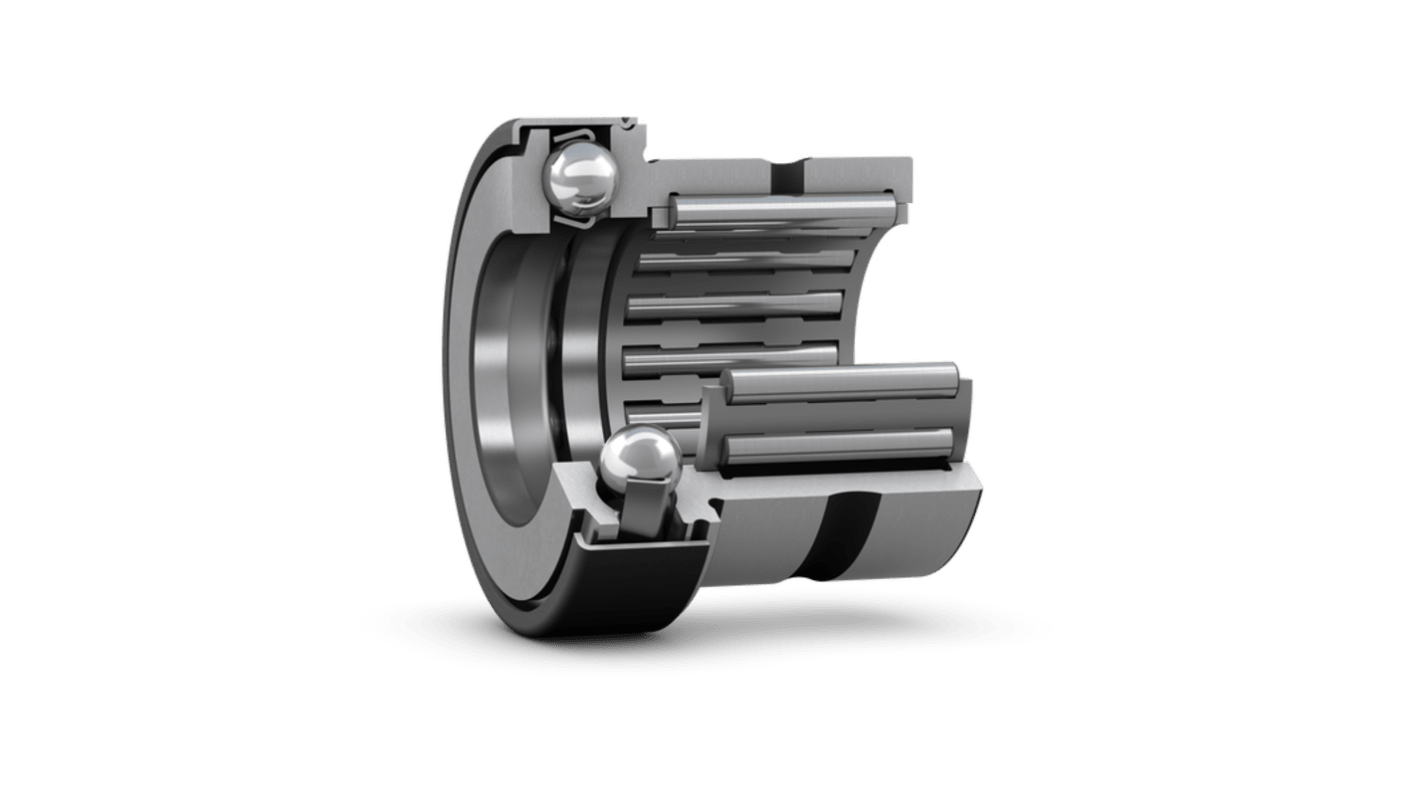

The SKF Bearings consist of a radial needle roller bearing combined with a thrust ball bearing. Together they can accommodate both radial loads and axial loads in one direction. In addition, they can operate at relatively high speeds. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space. The thrust part is capped with a cover that forms a gap-type seal to retain the grease in the bearings.
Accommodate radial and axial loads in one direction
High load carrying capacity
Relatively high-speed capability
Low cross section
Non-separable design
High load carrying capacity
Relatively high-speed capability
Low cross section
Non-separable design
