Timken A5069/A5144 Taper 17.46 mm ID Roller Bearing, 36.53 mm OD
- RS Stock No.:
- 137-1957
- Mfr. Part No.:
- A5069/A5144
- Brand:
- Timken
Bulk discount available
Subtotal (1 unit)*
£55.99
(exc. VAT)
£67.19
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £55.99 |
| 5 - 9 | £53.76 |
| 10 - 24 | £52.63 |
| 25 + | £51.51 |
*price indicative
- RS Stock No.:
- 137-1957
- Mfr. Part No.:
- A5069/A5144
- Brand:
- Timken
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Timken | |
| Product Type | Roller Bearing | |
| Inside Diameter | 17.46mm | |
| Bore Type | Parallel | |
| Cage Material | Steel | |
| Roller Material | Steel | |
| Bearing Dynamic Load Rating | 13kN | |
| Outside Diameter | 36.53mm | |
| Cone Width | 7.93mm | |
| End Type | Open | |
| Standards/Approvals | No | |
| Static Load Rating | 11.6kN | |
| Bearing Type | Taper | |
| Select all | ||
|---|---|---|
Brand Timken | ||
Product Type Roller Bearing | ||
Inside Diameter 17.46mm | ||
Bore Type Parallel | ||
Cage Material Steel | ||
Roller Material Steel | ||
Bearing Dynamic Load Rating 13kN | ||
Outside Diameter 36.53mm | ||
Cone Width 7.93mm | ||
End Type Open | ||
Standards/Approvals No | ||
Static Load Rating 11.6kN | ||
Bearing Type Taper | ||
- COO (Country of Origin):
- US
Tapered Roller Bearings - TS (Tapered Single) Imperial/Metric

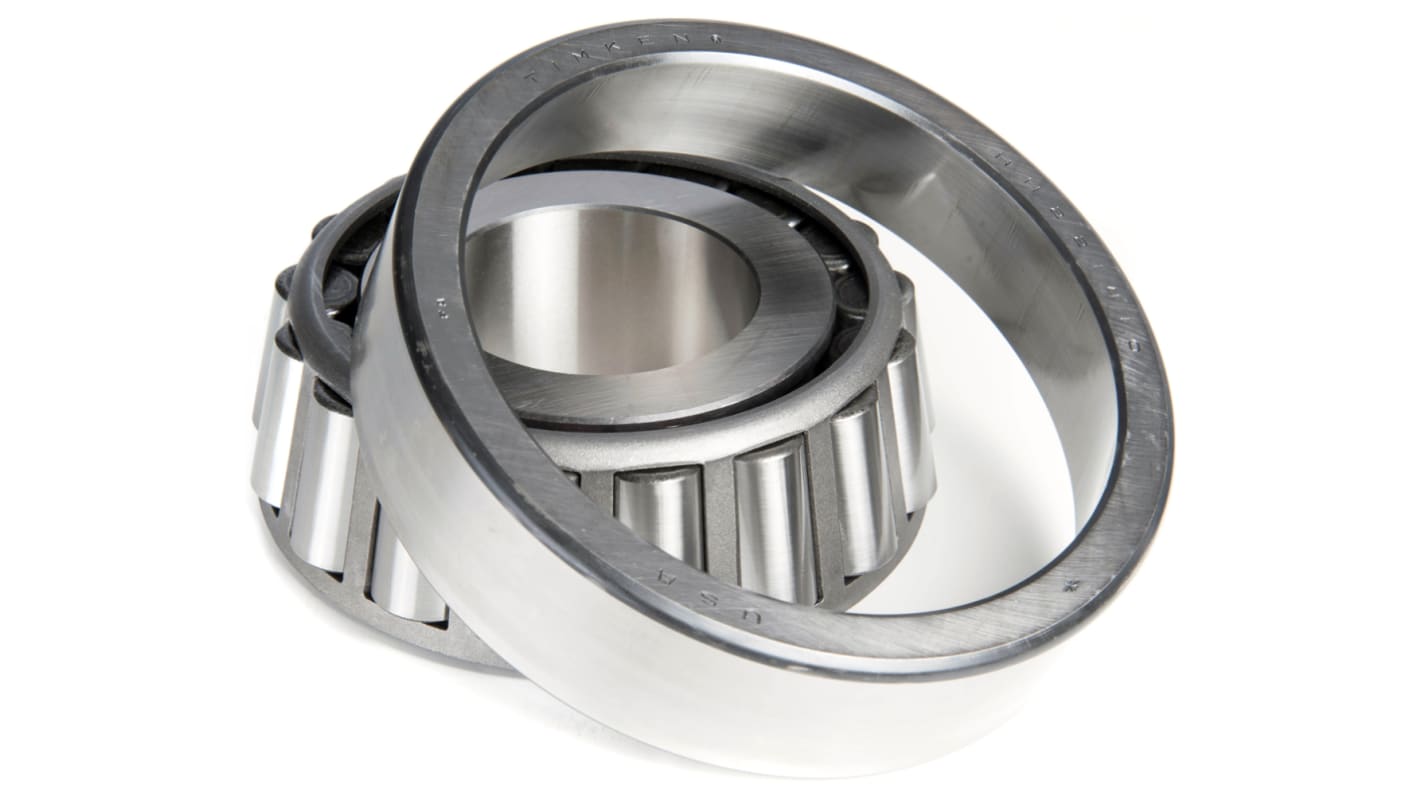

These bearings are the most basic and most widely used type of tapered roller bearings. They consist of two main separable parts, the cone (inner ring) assembly and the cup (outer ring). They are typically mounted in opposing pairs on a shaft.
Features and Benefits
• Imperial / Metric;• One piece stamped steel cage retains rollers on the cone;• Inner diameter range 7.937 mm to 863.600 mm;• Outer diameter range 31.991 mm to 1060.000 mm;• Single cone and cup
Product Application Information
Typical applications include, vehicle front wheels, differential and pinion configurations, conveyor rolls, machine tool spindles and trailer wheels.
