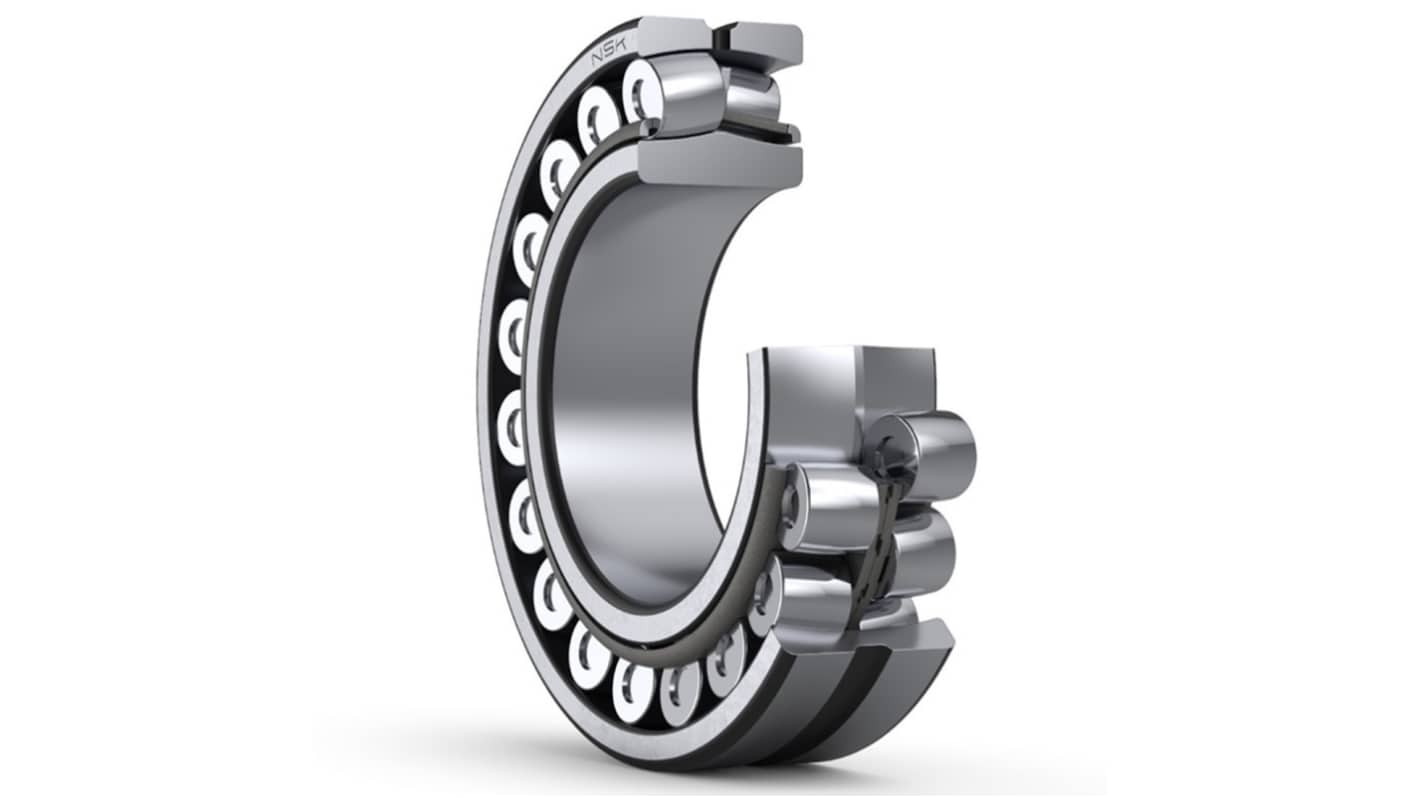

NSK 22209EAKE4C3 Straight 45 mm ID Spherical Roller Bearing, 85 mm OD
- RS Stock No.:
- 643-945
- Mfr. Part No.:
- 22209EAKE4C3
- Brand:
- NSK
Subtotal (1 unit)*
£79.46
(exc. VAT)
£95.35
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £79.46 |
*price indicative
- RS Stock No.:
- 643-945
- Mfr. Part No.:
- 22209EAKE4C3
- Brand:
- NSK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 45mm | |
| Race Width | 23mm | |
| Bore Type | Straight | |
| Cage Material | Steel | |
| Standards/Approvals | ISO 15312 | |
| Maximum Speed - Grease | 6000rpm | |
| End Type | Open | |
| Bearing Material | Steel | |
| Number of Rows | 2 | |
| Series | 222 | |
| Maximum Speed - Oil | 7500rpm | |
| Outside Diameter | 85mm | |
| Dynamic Load Rating | 118000N | |
| Internal Clearance | C3 | |
| Static Load Rating | 111000N | |
| Select all | ||
|---|---|---|
Brand NSK | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 45mm | ||
Race Width 23mm | ||
Bore Type Straight | ||
Cage Material Steel | ||
Standards/Approvals ISO 15312 | ||
Maximum Speed - Grease 6000rpm | ||
End Type Open | ||
Bearing Material Steel | ||
Number of Rows 2 | ||
Series 222 | ||
Maximum Speed - Oil 7500rpm | ||
Outside Diameter 85mm | ||
Dynamic Load Rating 118000N | ||
Internal Clearance C3 | ||
Static Load Rating 111000N | ||
Non Compliant
- COO (Country of Origin):
- JP
The NSK Spherical roller bearing with a 45 mm bore, 85 mm outer diameter, and 23 mm width, designed for high radial loads and moderate axial loads in compact assemblies. Its steel cage and open design enable efficient lubrication via grooves and holes, while the C3 clearance accommodates thermal expansion and shaft misalignment. It delivers stable performance across grease, oil-bath, and forced oil circulation systems.
ISO 15312 compliant
Supports dynamic and static load
Easy maintenance with lubrication access
