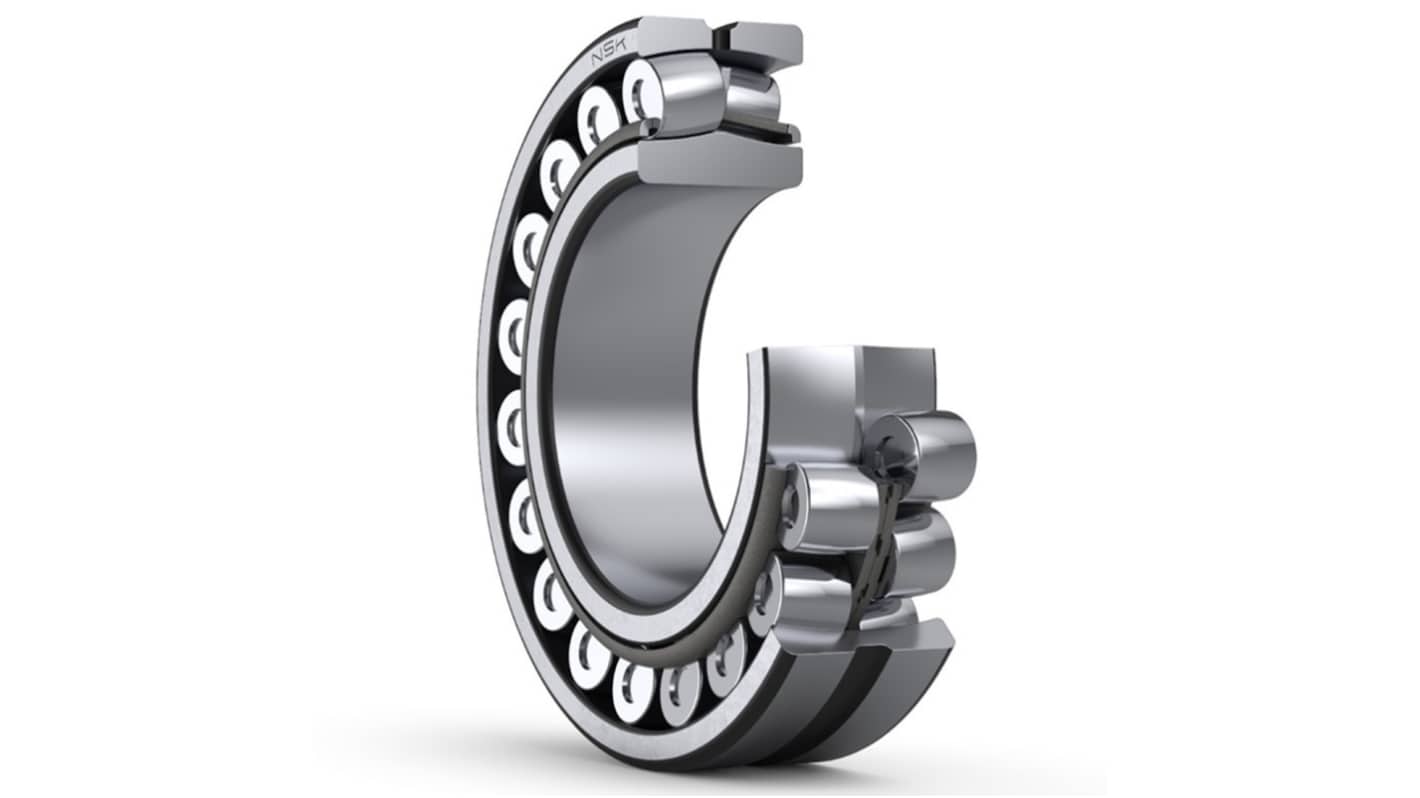

NSK 22309EAE4 Straight 45 mm ID Spherical Roller Bearing, 100 mm OD
- RS Stock No.:
- 643-748
- Mfr. Part No.:
- 22309EAE4
- Brand:
- NSK
Subtotal (1 unit)*
£101.75
(exc. VAT)
£122.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £101.75 |
*price indicative
- RS Stock No.:
- 643-748
- Mfr. Part No.:
- 22309EAE4
- Brand:
- NSK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 45mm | |
| Race Width | 36mm | |
| Bore Type | Straight | |
| Cage Material | Steel | |
| Bearing Material | Steel | |
| Number of Rows | 2 | |
| Dynamic Load Rating | 207000N | |
| Static Load Rating | 195000N | |
| Maximum Speed - Oil | 5600rpm | |
| Series | 223 | |
| Standards/Approvals | ISO 15312 | |
| End Type | Open | |
| Maximum Speed - Grease | 4500rpm | |
| Internal Clearance | C0 | |
| Outside Diameter | 100mm | |
| Select all | ||
|---|---|---|
Brand NSK | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 45mm | ||
Race Width 36mm | ||
Bore Type Straight | ||
Cage Material Steel | ||
Bearing Material Steel | ||
Number of Rows 2 | ||
Dynamic Load Rating 207000N | ||
Static Load Rating 195000N | ||
Maximum Speed - Oil 5600rpm | ||
Series 223 | ||
Standards/Approvals ISO 15312 | ||
End Type Open | ||
Maximum Speed - Grease 4500rpm | ||
Internal Clearance C0 | ||
Outside Diameter 100mm | ||
Non Compliant
- COO (Country of Origin):
- JP
The NSK Spherical roller bearing with a 45 mm bore, 100 mm outer diameter, and 36 mm width, designed to handle high radial loads and moderate axial loads in compact industrial applications. Its steel cage and open design include lubrication grooves and holes for efficient grease or oil circulation. With standard internal clearance and double-row roller geometry, it ensures stable performance under misalignment and demanding operating conditions.
ISO 15312 compliant
Supports dynamic and static load
Easy maintenance with lubrication access
