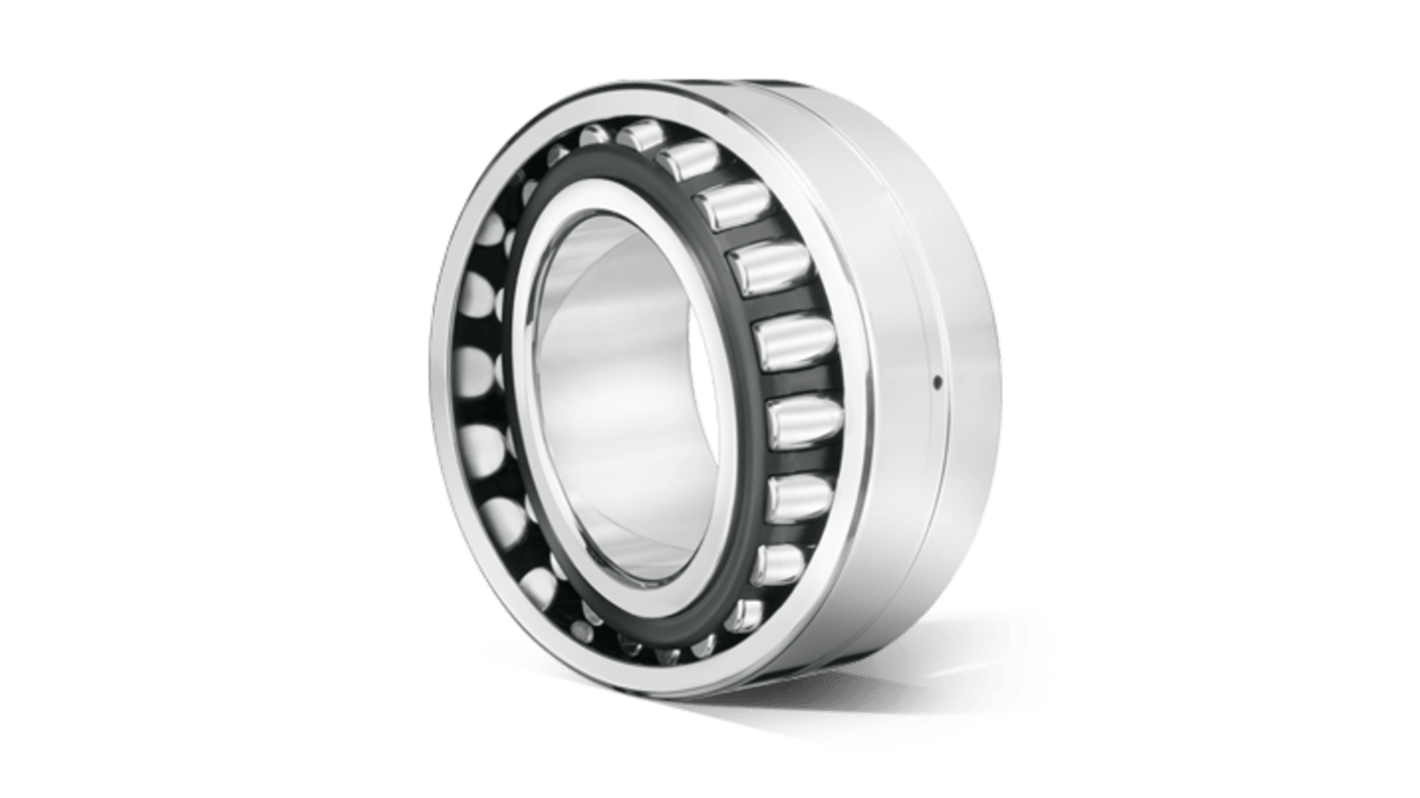

NTN 22232EMKW33C3 Tapered 160 mm ID Spherical Roller Bearing, 290 mm OD
- RS Stock No.:
- 640-269
- Mfr. Part No.:
- 22232EMKW33C3
- Brand:
- NTN
Subtotal (1 unit)*
£1,353.81
(exc. VAT)
£1,624.57
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,353.81 |
*price indicative
- RS Stock No.:
- 640-269
- Mfr. Part No.:
- 22232EMKW33C3
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 160mm | |
| Race Width | 80mm | |
| Bore Type | Tapered | |
| Cage Material | Brass | |
| Dynamic Load Rating | 1220.00kN | |
| End Type | Open | |
| Standards/Approvals | No | |
| Series | 222 | |
| Maximum Speed - Oil | 2100rpm | |
| Maximum Speed - Grease | 1700rpm | |
| Limiting Speed | 2800rpm | |
| Internal Clearance | C3 | |
| Static Load Rating | 1390.00kN | |
| Number of Rows | 2 | |
| Bearing Material | Through Hardened Steel | |
| Outside Diameter | 290mm | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 160mm | ||
Race Width 80mm | ||
Bore Type Tapered | ||
Cage Material Brass | ||
Dynamic Load Rating 1220.00kN | ||
End Type Open | ||
Standards/Approvals No | ||
Series 222 | ||
Maximum Speed - Oil 2100rpm | ||
Maximum Speed - Grease 1700rpm | ||
Limiting Speed 2800rpm | ||
Internal Clearance C3 | ||
Static Load Rating 1390.00kN | ||
Number of Rows 2 | ||
Bearing Material Through Hardened Steel | ||
Outside Diameter 290mm | ||
Non Compliant
- COO (Country of Origin):
- IT
The NTN Spherical Roller Bearing is designed to withstand substantial loads and misalignments, making it ideal for demanding operating conditions. This type of bearing excels in environments such as crushers, vibrating screens, and heavy handling applications. With NTN's ULTAGE design, it delivers exceptional durability and extended service life as a standard feature, offering unparalleled endurance and reliability in harsh conditions.
High impacts resistance
High vibrations resistance
