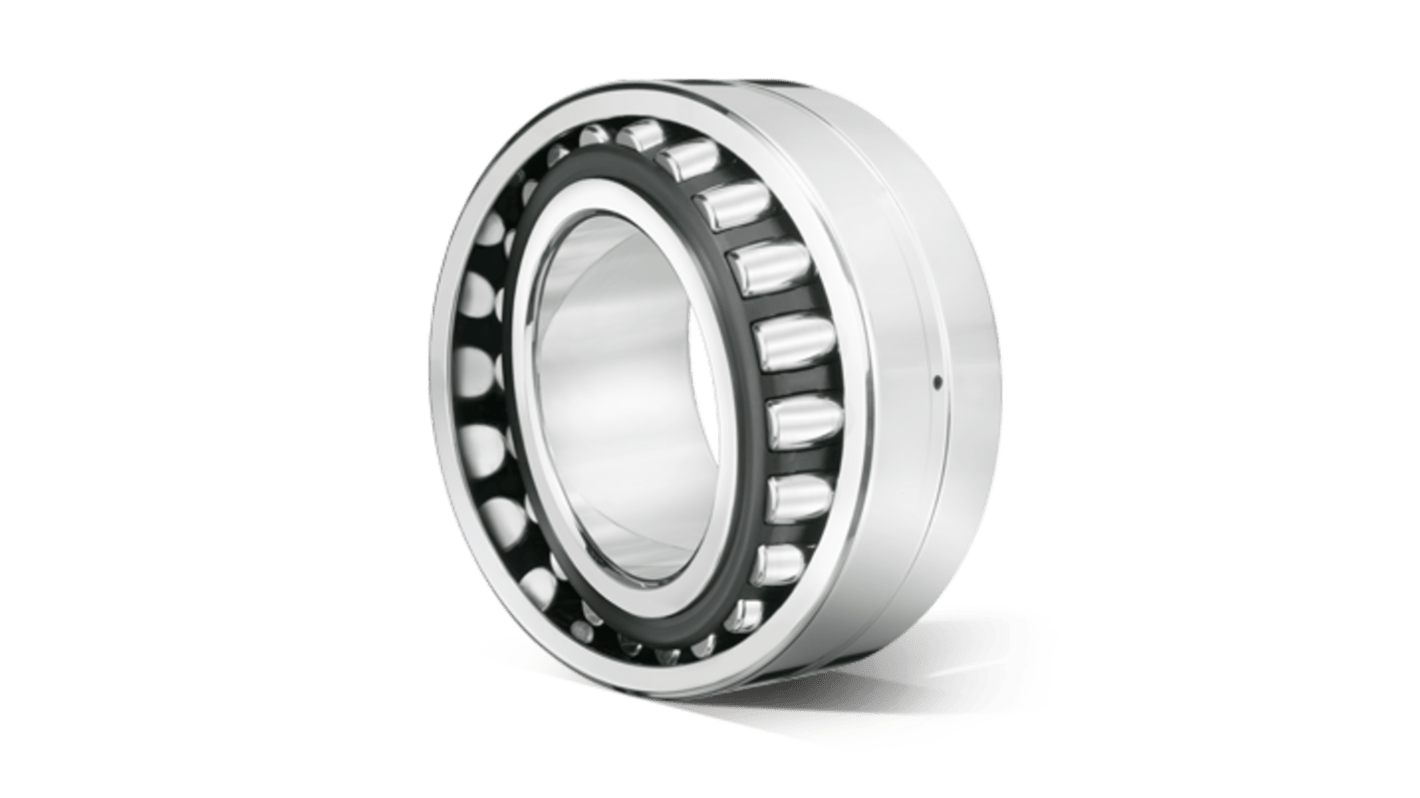

NTN 22213EMKW33C3 Tapered 65 mm ID Spherical Roller Bearing, 120 mm OD
- RS Stock No.:
- 640-246
- Mfr. Part No.:
- 22213EMKW33C3
- Brand:
- NTN
Subtotal (1 unit)*
£162.28
(exc. VAT)
£194.74
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 09 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £162.28 |
*price indicative
- RS Stock No.:
- 640-246
- Mfr. Part No.:
- 22213EMKW33C3
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 65mm | |
| Race Width | 31mm | |
| Bore Type | Tapered | |
| Cage Material | Brass | |
| Maximum Speed - Grease | 4400rpm | |
| Maximum Speed - Oil | 5500rpm | |
| Bearing Material | Through Hardened Steel | |
| Series | 222 | |
| Standards/Approvals | No | |
| End Type | Open | |
| Dynamic Load Rating | 217.00kN | |
| Outside Diameter | 120mm | |
| Internal Clearance | C3 | |
| Static Load Rating | 212.00kN | |
| Limiting Speed | 6900rpm | |
| Number of Rows | 2 | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 65mm | ||
Race Width 31mm | ||
Bore Type Tapered | ||
Cage Material Brass | ||
Maximum Speed - Grease 4400rpm | ||
Maximum Speed - Oil 5500rpm | ||
Bearing Material Through Hardened Steel | ||
Series 222 | ||
Standards/Approvals No | ||
End Type Open | ||
Dynamic Load Rating 217.00kN | ||
Outside Diameter 120mm | ||
Internal Clearance C3 | ||
Static Load Rating 212.00kN | ||
Limiting Speed 6900rpm | ||
Number of Rows 2 | ||
Non Compliant
- COO (Country of Origin):
- IT
The NTN Spherical Roller Bearing is designed to withstand substantial loads and misalignments, making it ideal for demanding operating conditions. This type of bearing excels in environments such as crushers, vibrating screens, and heavy handling applications. With NTN's ULTAGE design, it delivers exceptional durability and extended service life as a standard feature, offering unparalleled endurance and reliability in harsh conditions.
High impacts resistance
High vibrations resistance
