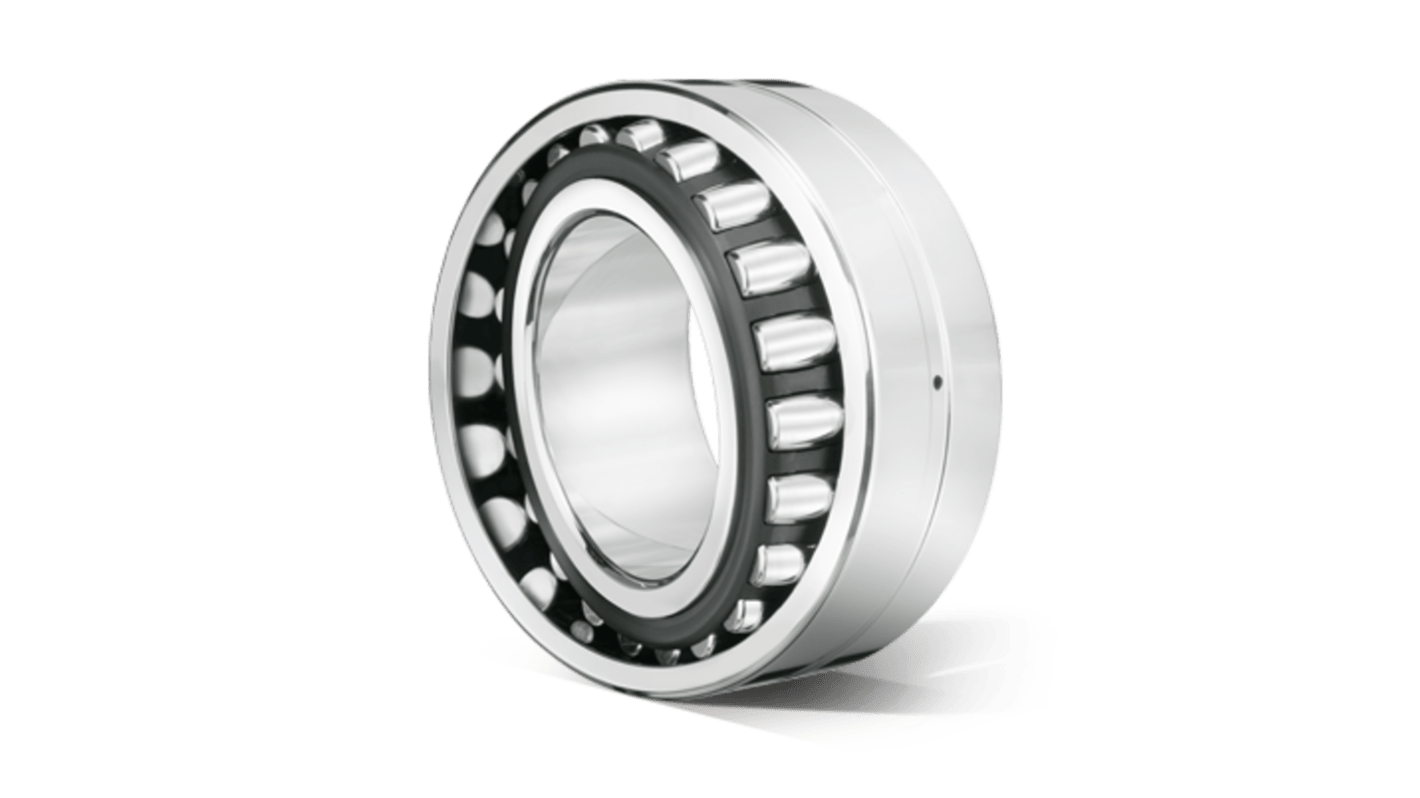

NTN 22320EF800 Round 100 mm ID Spherical Roller Bearing, 215 mm OD
- RS Stock No.:
- 640-217
- Mfr. Part No.:
- 22320EF800
- Brand:
- NTN
Subtotal (1 unit)*
£866.47
(exc. VAT)
£1,039.76
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £866.47 |
*price indicative
- RS Stock No.:
- 640-217
- Mfr. Part No.:
- 22320EF800
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 100 mm | |
| Race Width | 73mm | |
| Bore Type | Round | |
| Cage Material | Brass | |
| Number of Rows | 2 | |
| Bearing Material | Through Hardened Steel | |
| Maximum Speed - Grease | 2100rpm | |
| Limiting Speed | 3100rpm | |
| Maximum Speed - Oil | 2600rpm | |
| Static Load Rating | 844kN | |
| Standards/Approvals | No | |
| Outside Diameter | 215 mm | |
| Series | 223 | |
| Internal Clearance | CN | |
| Dynamic Load Rating | 827kN | |
| End Type | Open | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 100 mm | ||
Race Width 73mm | ||
Bore Type Round | ||
Cage Material Brass | ||
Number of Rows 2 | ||
Bearing Material Through Hardened Steel | ||
Maximum Speed - Grease 2100rpm | ||
Limiting Speed 3100rpm | ||
Maximum Speed - Oil 2600rpm | ||
Static Load Rating 844kN | ||
Standards/Approvals No | ||
Outside Diameter 215 mm | ||
Series 223 | ||
Internal Clearance CN | ||
Dynamic Load Rating 827kN | ||
End Type Open | ||
Non Compliant
- COO (Country of Origin):
- IT
The NTN Spherical Roller Bearing is designed to withstand substantial loads and misalignments, making it ideal for demanding operating conditions. This type of bearing excels in environments such as crushers, vibrating screens, and heavy handling applications. With NTN's ULTAGE design, it delivers exceptional durability and extended service life as a standard feature, offering unparalleled endurance and reliability in harsh conditions.
High impacts resistance
High vibrations resistance
