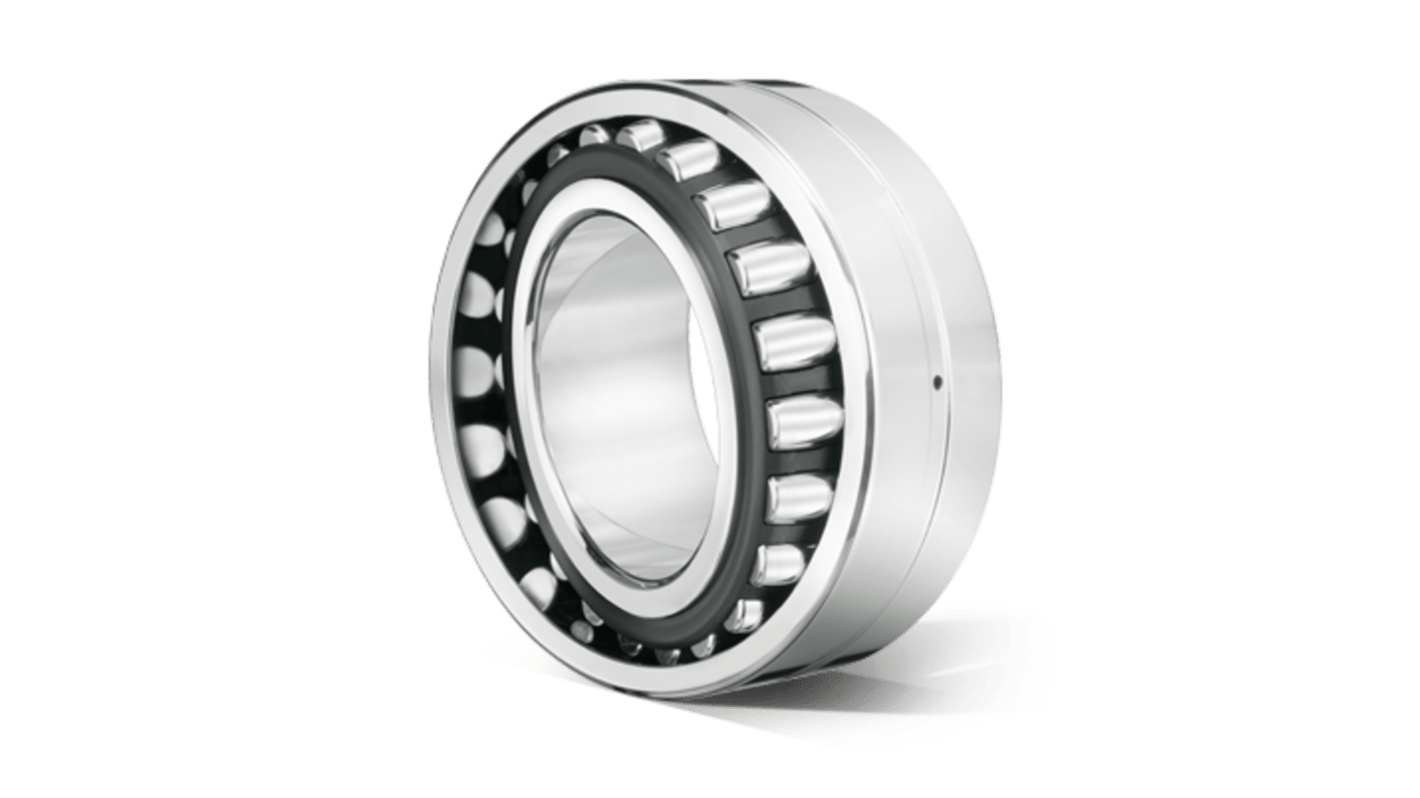

NTN 22322EMKW33C3 Tapered 110 mm ID Spherical Roller Bearing, 240 mm OD
- RS Stock No.:
- 640-141
- Mfr. Part No.:
- 22322EMKW33C3
- Brand:
- NTN
Subtotal (1 unit)*
£996.88
(exc. VAT)
£1,196.26
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £996.88 |
*price indicative
- RS Stock No.:
- 640-141
- Mfr. Part No.:
- 22322EMKW33C3
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 110mm | |
| Race Width | 80mm | |
| Bore Type | Tapered | |
| Cage Material | Brass | |
| Outside Diameter | 240mm | |
| Internal Clearance | C3 | |
| Static Load Rating | 972kN | |
| Number of Rows | 2 | |
| Bearing Material | Through Hardened Steel | |
| End Type | Open | |
| Dynamic Load Rating | 975kN | |
| Standards/Approvals | No | |
| Maximum Speed - Oil | 2400rpm | |
| Series | 223 | |
| Limiting Speed | 2800rpm | |
| Maximum Speed - Grease | 2000rpm | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 110mm | ||
Race Width 80mm | ||
Bore Type Tapered | ||
Cage Material Brass | ||
Outside Diameter 240mm | ||
Internal Clearance C3 | ||
Static Load Rating 972kN | ||
Number of Rows 2 | ||
Bearing Material Through Hardened Steel | ||
End Type Open | ||
Dynamic Load Rating 975kN | ||
Standards/Approvals No | ||
Maximum Speed - Oil 2400rpm | ||
Series 223 | ||
Limiting Speed 2800rpm | ||
Maximum Speed - Grease 2000rpm | ||
Non Compliant
- COO (Country of Origin):
- IT
The NTN Spherical Roller Bearing is designed to withstand substantial loads and misalignments, making it ideal for demanding operating conditions. This type of bearing excels in environments such as crushers, vibrating screens, and heavy handling applications. With NTN's ULTAGE design, it delivers exceptional durability and extended service life as a standard feature, offering unparalleled endurance and reliability in harsh conditions.
High impacts resistance
High vibrations resistance
