NTN 22322EKF800 Tapered 1:12 110 mm ID Spherical Roller Bearing, 240 mm OD
- RS Stock No.:
- 454-829
- Mfr. Part No.:
- 22322EKF800
- Brand:
- NTN
Subtotal (1 unit)*
£1,174.16
(exc. VAT)
£1,408.99
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,174.16 |
*price indicative
- RS Stock No.:
- 454-829
- Mfr. Part No.:
- 22322EKF800
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 110 mm | |
| Race Width | 80mm | |
| Bore Type | Tapered 1:12 | |
| Internal Clearance | C4 | |
| Bearing Material | Through Hardened Steel | |
| Standards/Approvals | RoHS Certificate of Compliance | |
| Maximum Speed - Oil | 2800rpm | |
| Maximum Speed - Grease | 2300rpm | |
| Series | 22322EKF800 | |
| Static Load Rating | 972kN | |
| Limiting Speed | 2800rpm | |
| Dynamic Load Rating | 975kN | |
| Outside Diameter | 240 mm | |
| Race Type | Spherical | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 110 mm | ||
Race Width 80mm | ||
Bore Type Tapered 1:12 | ||
Internal Clearance C4 | ||
Bearing Material Through Hardened Steel | ||
Standards/Approvals RoHS Certificate of Compliance | ||
Maximum Speed - Oil 2800rpm | ||
Maximum Speed - Grease 2300rpm | ||
Series 22322EKF800 | ||
Static Load Rating 972kN | ||
Limiting Speed 2800rpm | ||
Dynamic Load Rating 975kN | ||
Outside Diameter 240 mm | ||
Race Type Spherical | ||
- COO (Country of Origin):
- IT

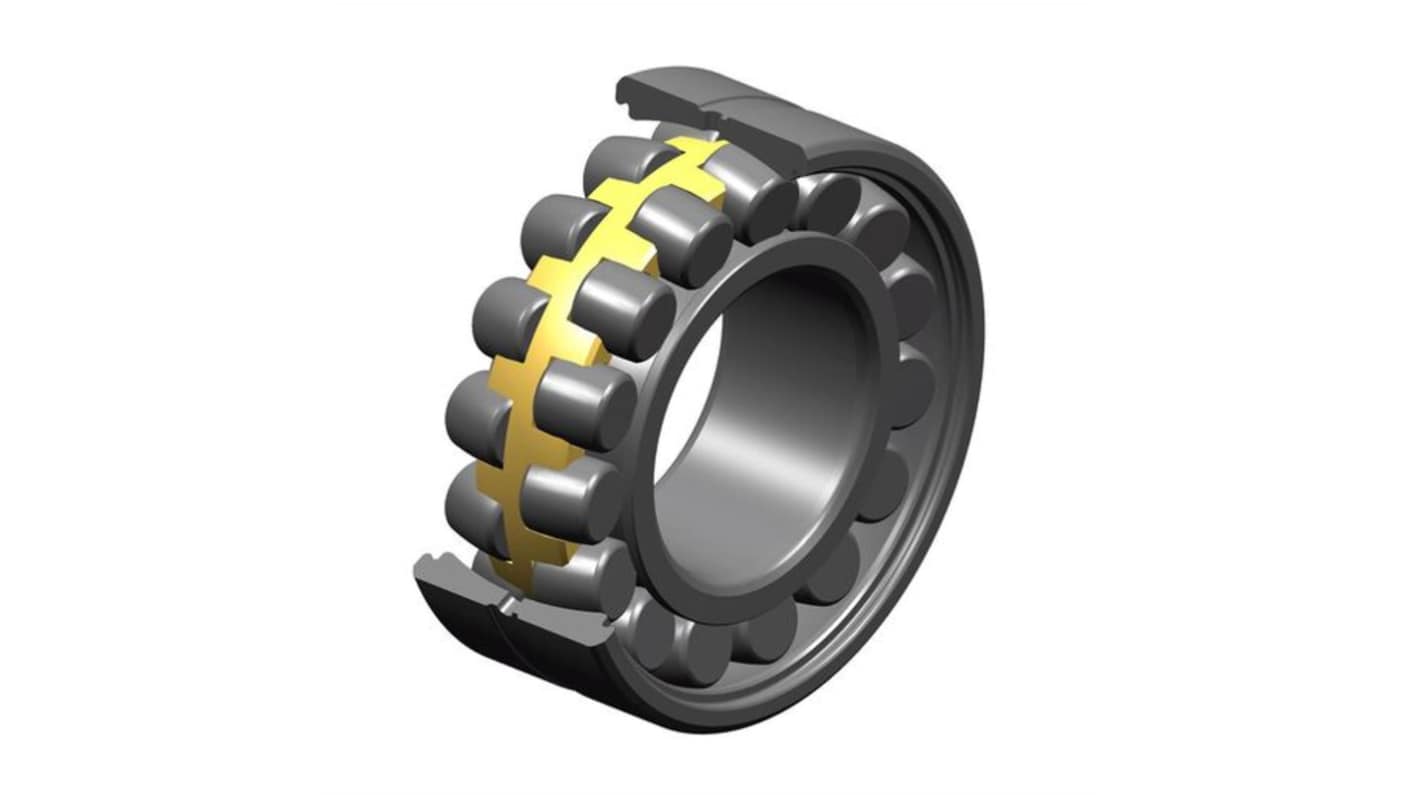

The NTN Spherical Roller Bearing is designed for demanding vibratory applications, providing exceptional performance and reliability. Engineered with a one-piece machined cage, it features lubrication holes on the outer ring and a tapered bore of 1:12, ensuring efficient operation even under extreme conditions. The bearing's unique C4 radial clearance class enhances its capacity to accommodate misalignment, making it ideal for various industrial uses. Manufactured by ntn, this bearing offers a robust construction for long-lasting durability and operational efficiency, catering specifically to the needs of engineers and operational teams seeking high-quality components in challenging applications.
Designed for reliable operation in vibratory settings
Incorporates a one-piece machined cage for better structural integrity
Includes lubrication holes for maintained performance and reduced wear
Features a tapered bore to ensure accurate fitting and alignment
C4 radial clearance accommodates shaft misalignments effectively
Manufactured to withstand high dynamic and static loads
Optimised for high-speed applications with a reference thermal speed of 2300 tr/min
Constructed for a wide operating temperature range, from -40 °C to 200 °C
Lightweight design at 17--15 kg facilitates ease of installation
