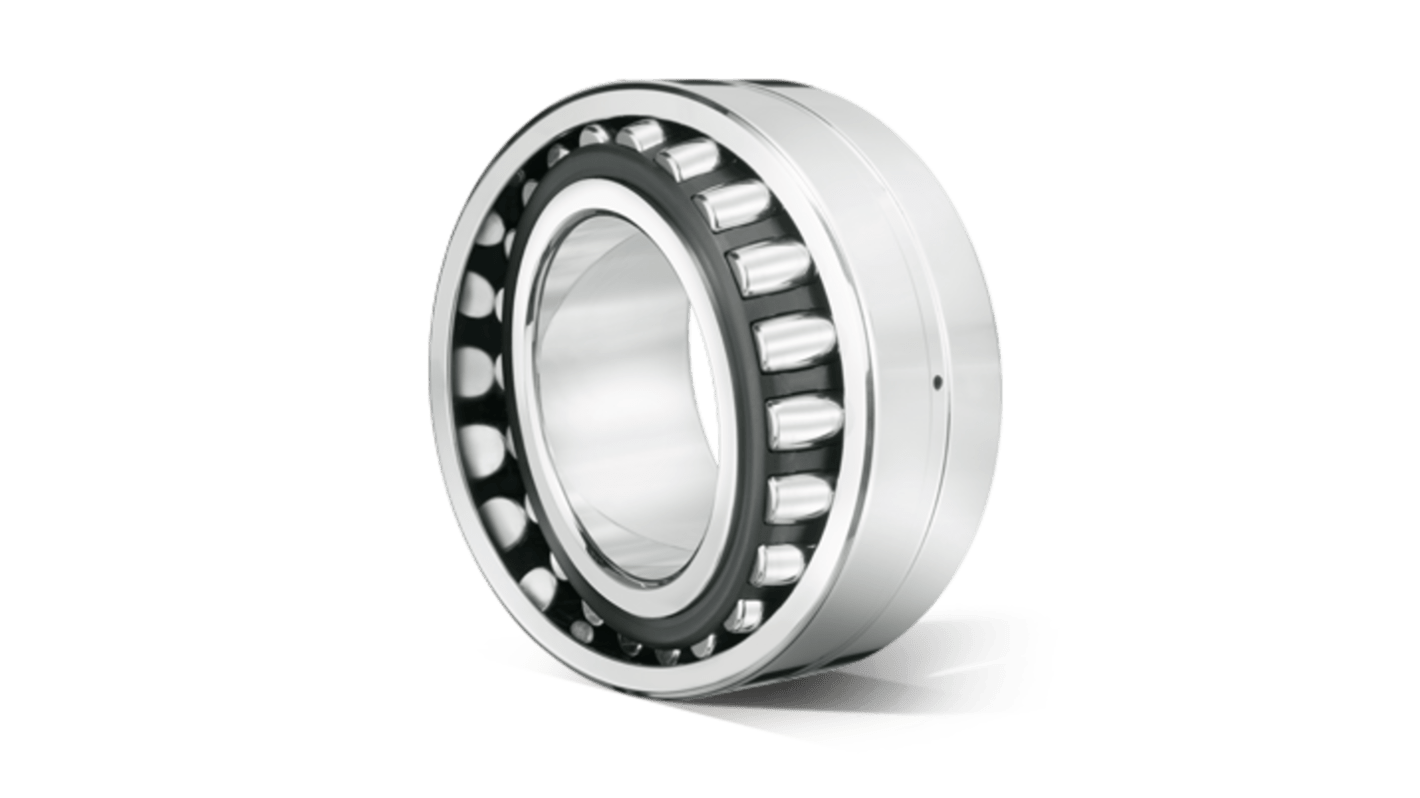

NTN 22319EAKW33C3 Tapered 95 mm ID Spherical Roller Bearing, 200 mm OD
- RS Stock No.:
- 640-135
- Mfr. Part No.:
- 22319EAKW33C3
- Brand:
- NTN
Subtotal (1 unit)*
£488.20
(exc. VAT)
£585.84
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £488.20 |
*price indicative
- RS Stock No.:
- 640-135
- Mfr. Part No.:
- 22319EAKW33C3
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 95 mm | |
| Race Width | 67mm | |
| Bore Type | Tapered | |
| Cage Material | Steel | |
| Bearing Material | Through Hardened Steel | |
| Number of Rows | 2 | |
| Outside Diameter | 200 mm | |
| Internal Clearance | C3 | |
| Series | 223 | |
| Static Load Rating | 750kN | |
| Limiting Speed | 3300rpm | |
| Dynamic Load Rating | 732kN | |
| End Type | Open | |
| Standards/Approvals | No | |
| Maximum Speed - Oil | 2800rpm | |
| Maximum Speed - Grease | 2300rpm | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 95 mm | ||
Race Width 67mm | ||
Bore Type Tapered | ||
Cage Material Steel | ||
Bearing Material Through Hardened Steel | ||
Number of Rows 2 | ||
Outside Diameter 200 mm | ||
Internal Clearance C3 | ||
Series 223 | ||
Static Load Rating 750kN | ||
Limiting Speed 3300rpm | ||
Dynamic Load Rating 732kN | ||
End Type Open | ||
Standards/Approvals No | ||
Maximum Speed - Oil 2800rpm | ||
Maximum Speed - Grease 2300rpm | ||
Non Compliant
- COO (Country of Origin):
- IT
The NTN Spherical Roller Bearing is designed to withstand substantial loads and misalignments, making it ideal for demanding operating conditions. This type of bearing excels in environments such as crushers, vibrating screens, and heavy handling applications. With NTN's ULTAGE design, it delivers exceptional durability and extended service life as a standard feature, offering unparalleled endurance and reliability in harsh conditions.
High impacts resistance
High vibrations resistance
