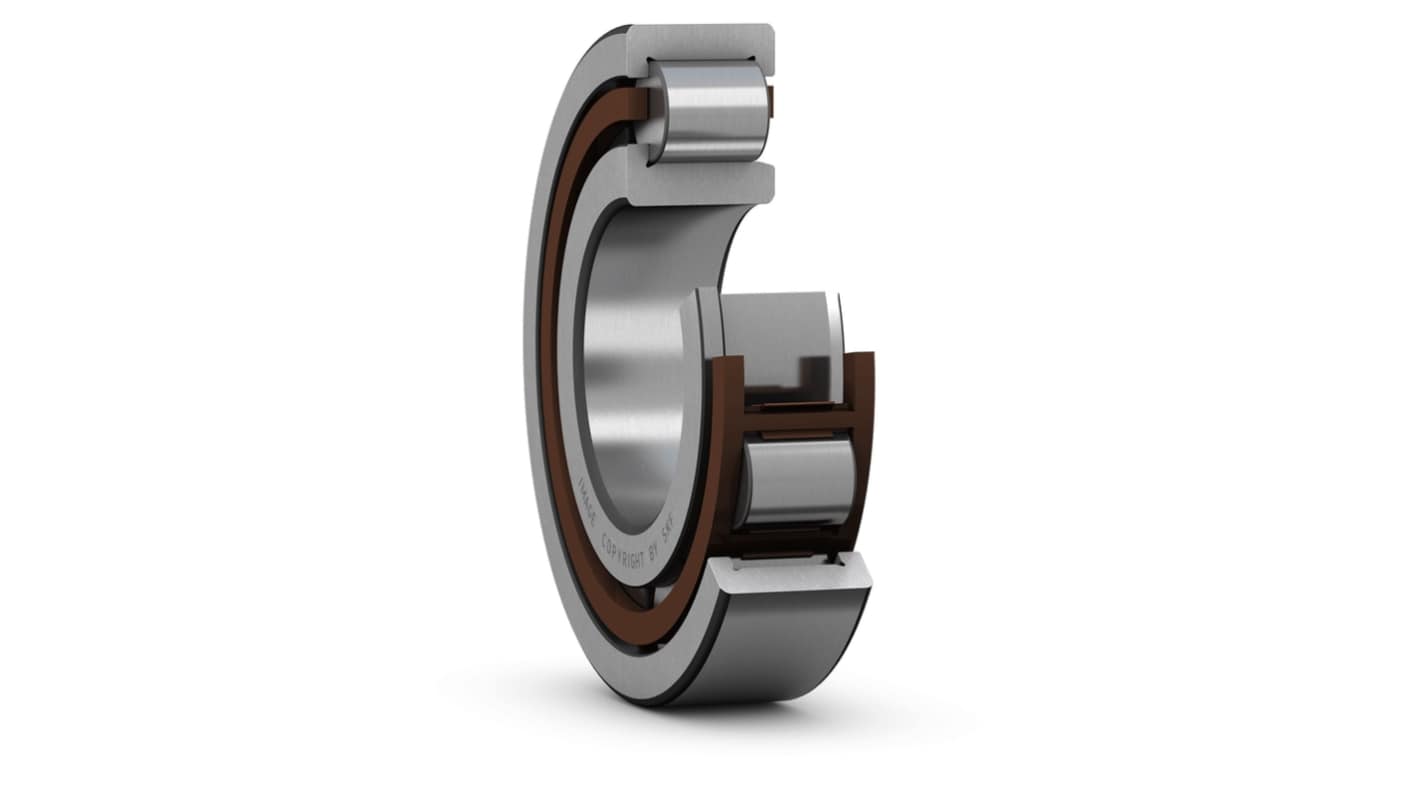

SKF NJ 2305 ECP 25 mm ID Cylindrical Roller Bearing, 62 mm OD
- RS Stock No.:
- 586-919
- Mfr. Part No.:
- NJ 2305 ECP
- Brand:
- SKF
Subtotal (1 pack of 5 units)*
£244.40
(exc. VAT)
£293.28
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 25 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £244.40 | £48.88 |
*price indicative
- RS Stock No.:
- 586-919
- Mfr. Part No.:
- NJ 2305 ECP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 25mm | |
| Race Width | 24mm | |
| Bore Type | Parallel | |
| Cage Material | Non-Metallic | |
| Roller Material | Bearing Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Standards/Approvals | RoHS Compliance | |
| Static Load Rating | 36.5kN | |
| Dynamic Load Rating | 46.5kN | |
| Series | NJ | |
| Limiting Speed | 15000rpm | |
| Outside Diameter | 62mm | |
| Bearing Material | Bearing Steel | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 25mm | ||
Race Width 24mm | ||
Bore Type Parallel | ||
Cage Material Non-Metallic | ||
Roller Material Bearing Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Standards/Approvals RoHS Compliance | ||
Static Load Rating 36.5kN | ||
Dynamic Load Rating 46.5kN | ||
Series NJ | ||
Limiting Speed 15000rpm | ||
Outside Diameter 62mm | ||
Bearing Material Bearing Steel | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design
