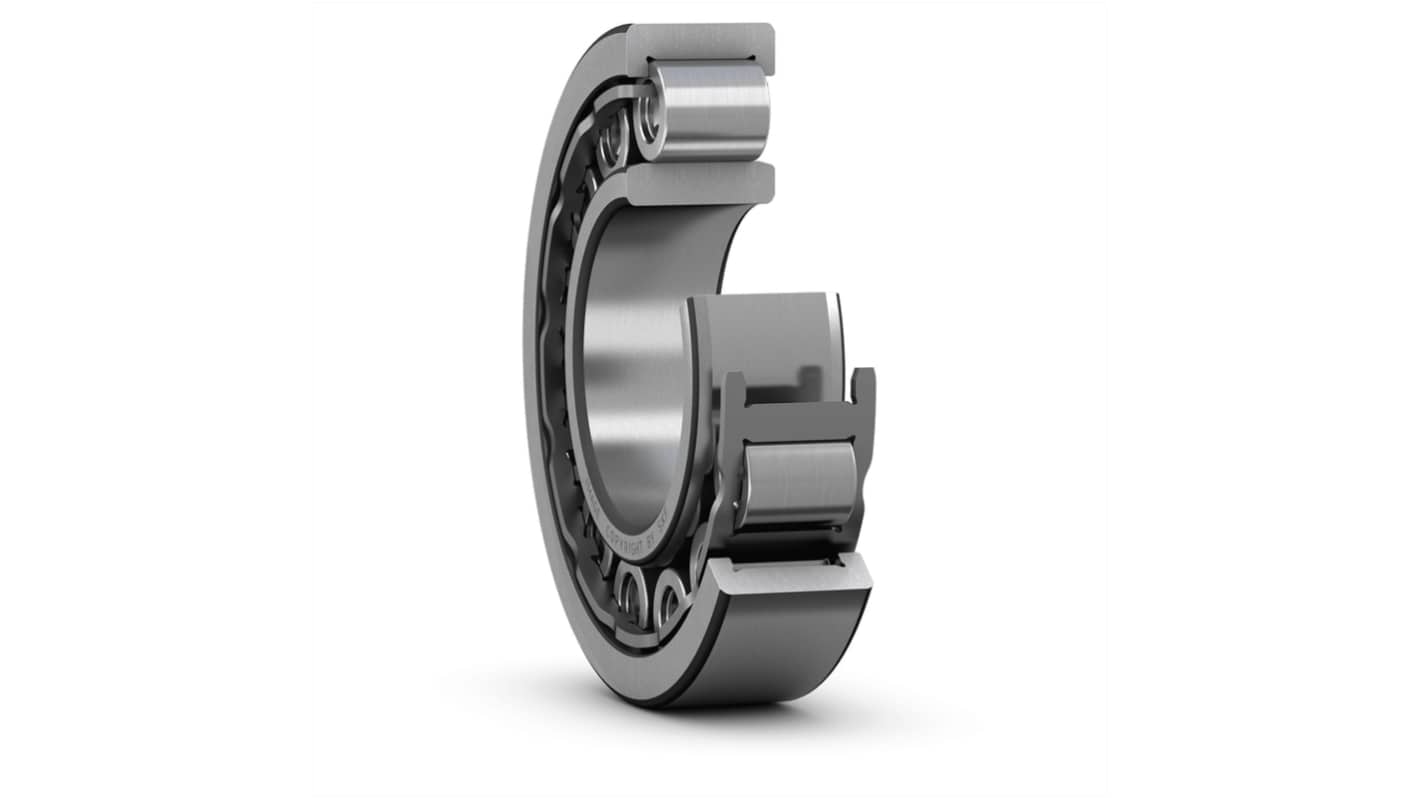

SKF NU 216 ECJ 80 mm ID Cylindrical Roller Bearing, 140 mm OD
- RS Stock No.:
- 586-295
- Mfr. Part No.:
- NU 216 ECJ
- Brand:
- SKF
Subtotal (1 pack of 2 units)*
£229.67
(exc. VAT)
£275.60
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £229.67 | £114.835 |
*price indicative
- RS Stock No.:
- 586-295
- Mfr. Part No.:
- NU 216 ECJ
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 80mm | |
| Race Width | 26mm | |
| Bore Type | Parallel | |
| Roller Material | Bearing Steel | |
| Cage Material | Sheet Metal | |
| Standards/Approvals | RoHS Compliance | |
| Series | NU | |
| End Type | Open | |
| Limiting Speed | 5600rpm | |
| Dynamic Load Rating | 160kN | |
| Outside Diameter | 140mm | |
| Static Load Rating | 166kN | |
| Number of Rows | 1 | |
| Bearing Material | Steel | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 80mm | ||
Race Width 26mm | ||
Bore Type Parallel | ||
Roller Material Bearing Steel | ||
Cage Material Sheet Metal | ||
Standards/Approvals RoHS Compliance | ||
Series NU | ||
End Type Open | ||
Limiting Speed 5600rpm | ||
Dynamic Load Rating 160kN | ||
Outside Diameter 140mm | ||
Static Load Rating 166kN | ||
Number of Rows 1 | ||
Bearing Material Steel | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
