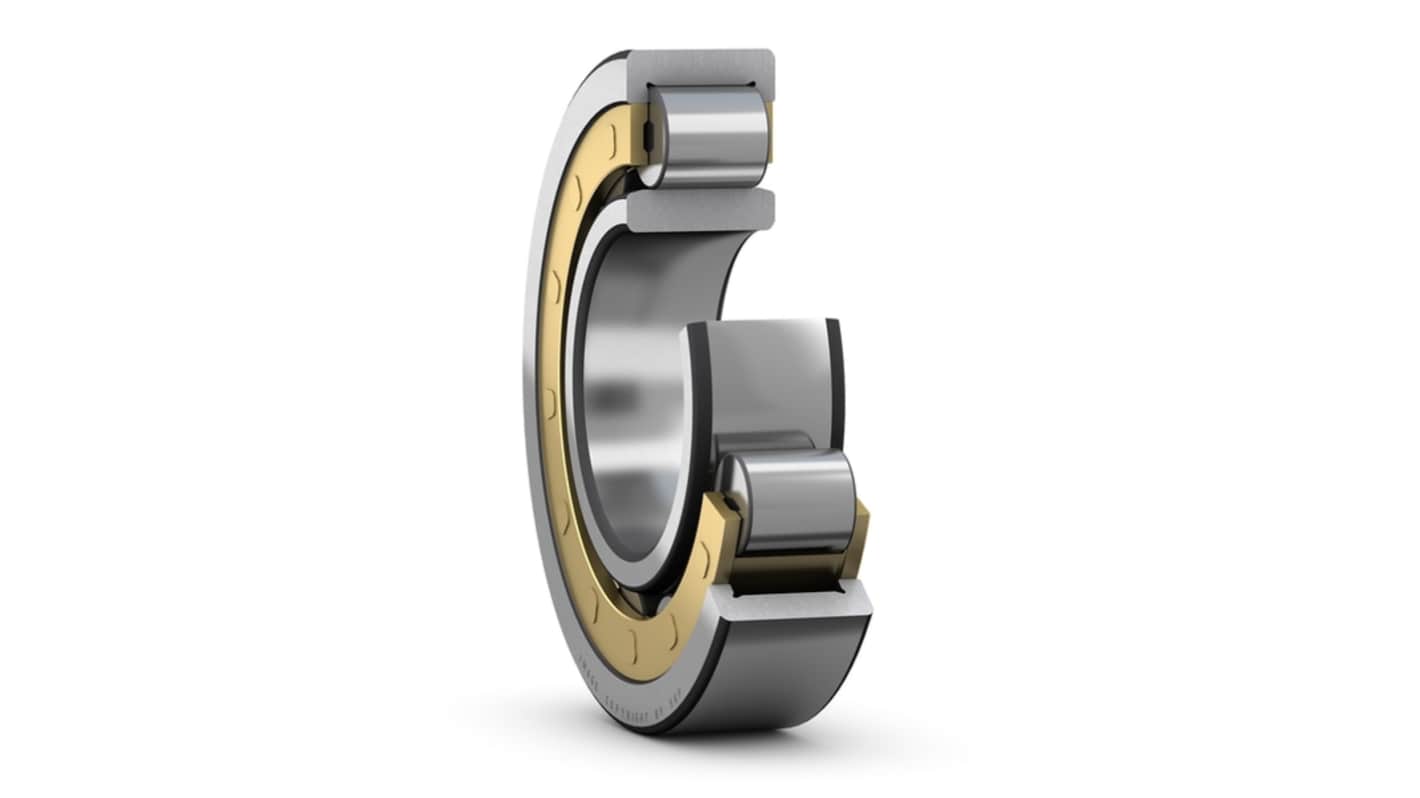

SKF NU 216 ECM/C3 80 mm ID Cylindrical Roller Bearing, 140 mm OD
- RS Stock No.:
- 465-398
- Mfr. Part No.:
- NU 216 ECM/C3
- Brand:
- SKF
Subtotal (1 unit)*
£387.58
(exc. VAT)
£465.10
(inc. VAT)
Add 1 unit to get free delivery
Temporarily out of stock
- Shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £387.58 |
*price indicative
- RS Stock No.:
- 465-398
- Mfr. Part No.:
- NU 216 ECM/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 80 mm | |
| Race Width | 26mm | |
| Bore Type | Cylindrical | |
| Cage Material | Machined Brass | |
| Series | NU | |
| Internal Clearance | C3 | |
| Outside Diameter | 140 mm | |
| Dynamic Load Rating | 160kN | |
| Standards/Approvals | RoHS | |
| Limiting Speed | 5600rpm | |
| Number of Rows | 1 | |
| Static Load Rating | 166kN | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 80 mm | ||
Race Width 26mm | ||
Bore Type Cylindrical | ||
Cage Material Machined Brass | ||
Series NU | ||
Internal Clearance C3 | ||
Outside Diameter 140 mm | ||
Dynamic Load Rating 160kN | ||
Standards/Approvals RoHS | ||
Limiting Speed 5600rpm | ||
Number of Rows 1 | ||
Static Load Rating 166kN | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
