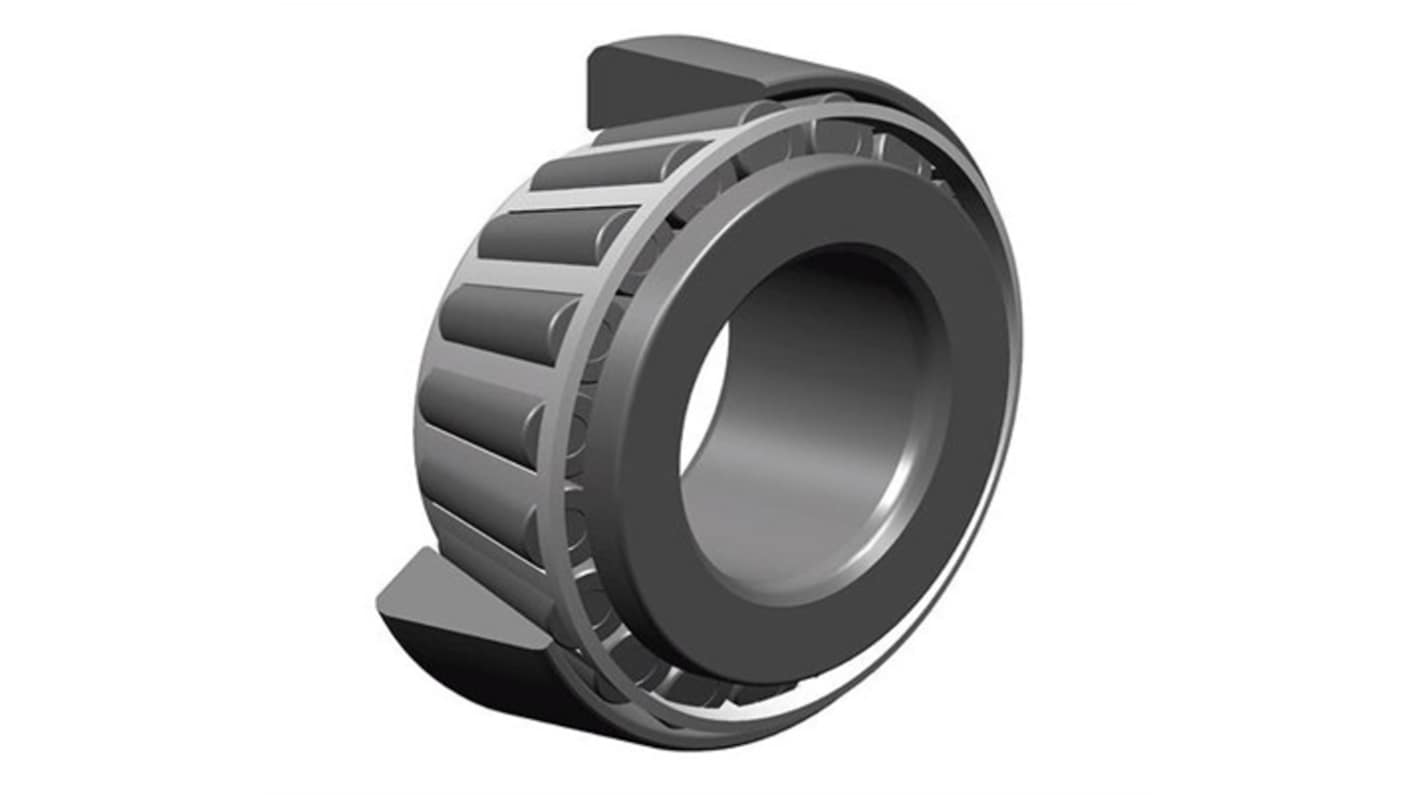

SNR 33109A Single Row Tapered Roller 45 mm ID Roller Bearing, 80 mm OD
- RS Stock No.:
- 576-693
- Mfr. Part No.:
- 33109A
- Brand:
- SNR
Subtotal (1 unit)*
£40.31
(exc. VAT)
£48.37
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £40.31 |
*price indicative
- RS Stock No.:
- 576-693
- Mfr. Part No.:
- 33109A
- Brand:
- SNR
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SNR | |
| Product Type | Roller Bearing | |
| Inside Diameter | 45mm | |
| Bearing Dynamic Load Rating | 91kN | |
| Standards/Approvals | ISO 355 | |
| Outside Diameter | 80mm | |
| Cone Width | 26mm | |
| Limiting Speed | 8800rpm | |
| Series | 33109A | |
| Static Load Rating | 117kN | |
| Cup Width | 20.5mm | |
| Number of Rows | 1 | |
| Bearing Type | Single Row Tapered Roller | |
| Select all | ||
|---|---|---|
Brand SNR | ||
Product Type Roller Bearing | ||
Inside Diameter 45mm | ||
Bearing Dynamic Load Rating 91kN | ||
Standards/Approvals ISO 355 | ||
Outside Diameter 80mm | ||
Cone Width 26mm | ||
Limiting Speed 8800rpm | ||
Series 33109A | ||
Static Load Rating 117kN | ||
Cup Width 20.5mm | ||
Number of Rows 1 | ||
Bearing Type Single Row Tapered Roller | ||
- COO (Country of Origin):
- CN
The SNR Tapered Roller Bearing withstands high radial loads and supports axial loads in one direction. The type of roller bearing is particularly suitable for applications such as rolling mills, rear axles, wheels of road vehicles and agricultural equipment. The single row in tapered roller bearing range, is the most widely used and is generally mounted in opposition.
Pressed steel cage
ISO 355 and JIS B 1512 standard
Axial adjustment enables a high reduction in clearance
