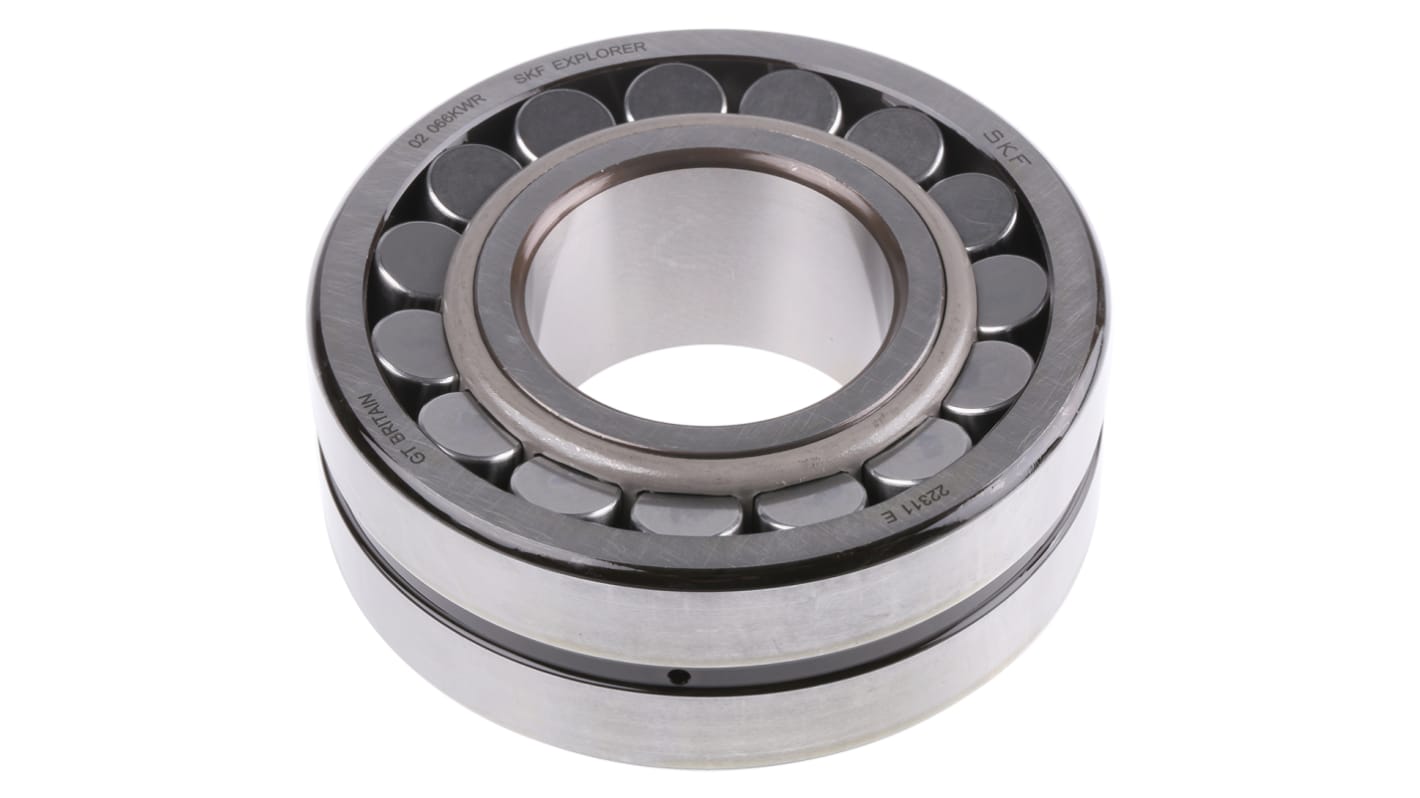

SKF 22311E 55mm I.D Spherical Roller Bearing, 120mm O.D
- RS Stock No.:
- 506-195
- Mfr. Part No.:
- 22311E
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£167.70
(exc. VAT)
£201.24
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £167.70 |
5 - 9 | £163.07 |
10 + | £158.64 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£157.86
(exc. VAT)
£189.43
(inc. VAT)
- RS Stock No.:
- 506-195
- Mfr. Part No.:
- 22311E
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 55mm | |
Outside Diameter | 120mm | |
Roller Bearing Type | Spherical | |
Race Width | 43mm | |
Bore Type | Parallel | |
Material | Metal | |
Static Load Rating | 280kN | |
Cage Material | Steel | |
Number of Rows | 2 | |
Dynamic Load Rating | 270kN | |
End Type | Open | |
Limiting Speed | 5600rpm | |
Reference Speed | 4300rpm | |
Fatigue Limit Load | 30kN | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 55mm | ||
Outside Diameter 120mm | ||
Roller Bearing Type Spherical | ||
Race Width 43mm | ||
Bore Type Parallel | ||
Material Metal | ||
Static Load Rating 280kN | ||
Cage Material Steel | ||
Number of Rows 2 | ||
Dynamic Load Rating 270kN | ||
End Type Open | ||
Limiting Speed 5600rpm | ||
Reference Speed 4300rpm | ||
Fatigue Limit Load 30kN | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
SKF Spherical Roller Bearings
SKF Spherical Roller Bearings offer an attractive combination of design features, which make them irreplaceable in many demanding applications.
Self-aligning - allows misalignment between shaft and housing without increase of friction and without reduction of bearing life
Very high Load Carrying Capacity - Optimum layout inside available cross-section provides maximum radial and axial load carrying capacity
Robust - Insensitive to misalignment caused by shaft or housing deflection due to heavy load
Easily fitted for loads in all directions - The bearings are non-separable and ready to install using a number of mounting methods
Easy bearing application - The favourable design characteristics and mounting enable for a more efficient and compact machine design
Very high Load Carrying Capacity - Optimum layout inside available cross-section provides maximum radial and axial load carrying capacity
Robust - Insensitive to misalignment caused by shaft or housing deflection due to heavy load
Easily fitted for loads in all directions - The bearings are non-separable and ready to install using a number of mounting methods
Easy bearing application - The favourable design characteristics and mounting enable for a more efficient and compact machine design
Spherical Roller Bearings with integral seals BS2 Series offer additional benefits:
Protection against contamination - SKF sealed spherical roller bearings are especially suited for bearing positions where, because of limited space or for cost reasons, effective external seals cannot be provided
Grease Retention - Contact seals on both sides of the bearing retain the factory filled grease where it is required: inside the bearing
Minimum maintenance requirements - Under normal operating conditions, sealed spherical roller bearings are maintenance free, keeping costs and grease consumption low
Grease Retention - Contact seals on both sides of the bearing retain the factory filled grease where it is required: inside the bearing
Minimum maintenance requirements - Under normal operating conditions, sealed spherical roller bearings are maintenance free, keeping costs and grease consumption low
