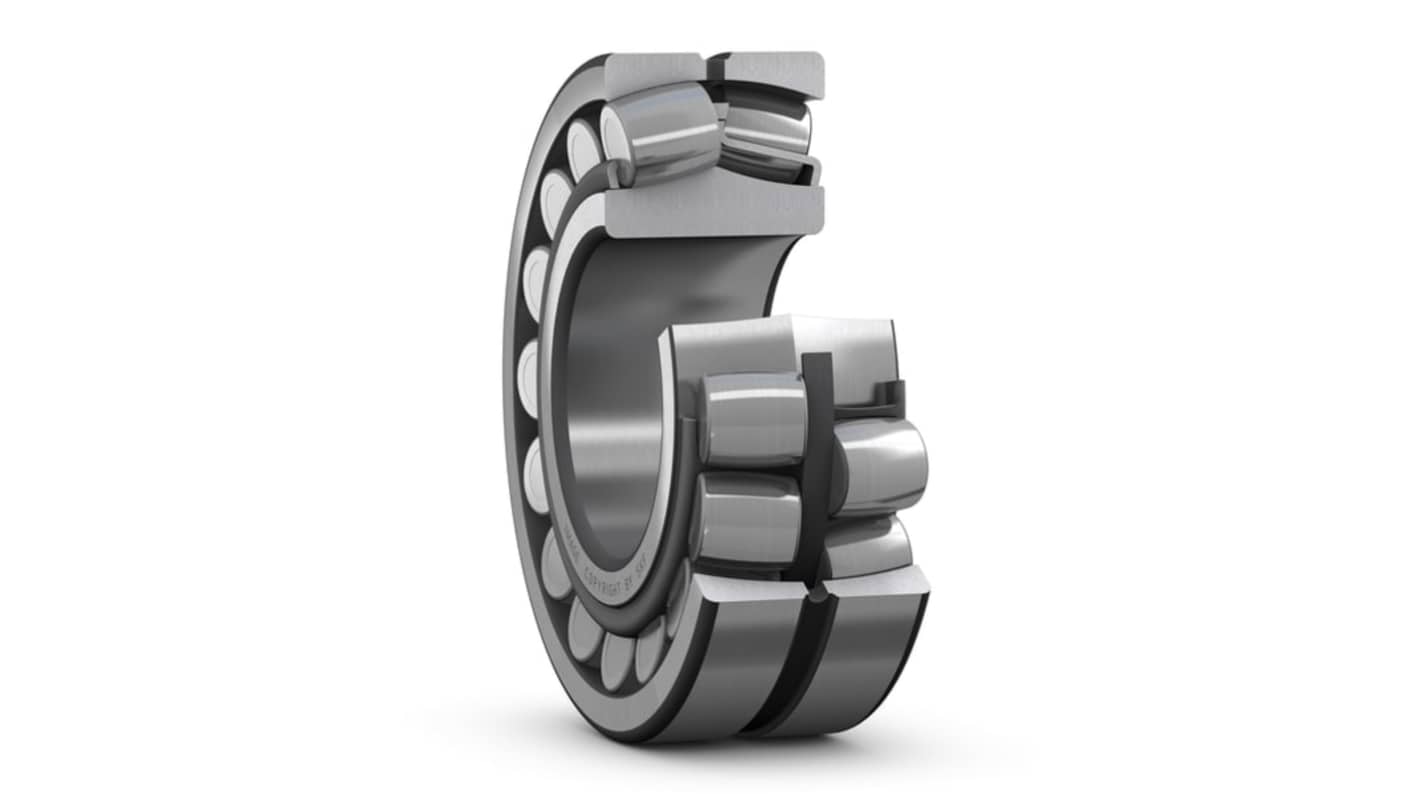

SKF 22311 EK Tapered 1:12 55 mm ID Spherical Roller Bearing, 120 mm OD
- RS Stock No.:
- 588-014
- Mfr. Part No.:
- 22311 EK
- Brand:
- SKF
Subtotal (1 pack of 2 units)*
£247.57
(exc. VAT)
£297.08
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £247.57 | £123.785 |
*price indicative
- RS Stock No.:
- 588-014
- Mfr. Part No.:
- 22311 EK
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 55 mm | |
| Race Width | 43mm | |
| Bore Type | Tapered 1:12 | |
| Cage Material | Sheet Metal | |
| Number of Rows | 2 | |
| Limiting Speed | 5600rpm | |
| Standards/Approvals | No | |
| Outside Diameter | 120 mm | |
| Dynamic Load Rating | 280kN | |
| Internal Clearance | CN | |
| Static Load Rating | 280kN | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 55 mm | ||
Race Width 43mm | ||
Bore Type Tapered 1:12 | ||
Cage Material Sheet Metal | ||
Number of Rows 2 | ||
Limiting Speed 5600rpm | ||
Standards/Approvals No | ||
Outside Diameter 120 mm | ||
Dynamic Load Rating 280kN | ||
Internal Clearance CN | ||
Static Load Rating 280kN | ||
The SKF Spherical roller bearings with tapered bore can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
High load carrying capacity
Relubrication features
Low friction and long service life
Increased wear resistance
