SKF NJ 2312 ECP/C3 60 mm ID Roller Bearing, 130 mm OD
- RS Stock No.:
- 465-364
- Mfr. Part No.:
- NJ 2312 ECP/C3
- Brand:
- SKF
Subtotal (1 unit)*
£296.45
(exc. VAT)
£355.74
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £296.45 |
*price indicative
- RS Stock No.:
- 465-364
- Mfr. Part No.:
- NJ 2312 ECP/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 60mm | |
| Race Width | 46mm | |
| Bore Type | Cylindrical | |
| Cage Material | Sheet Metal | |
| Limiting Speed | 6700rpm | |
| Number of Rows | 1 | |
| Static Load Rating | 265kN | |
| Outside Diameter | 130mm | |
| Standards/Approvals | No | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 260kN | |
| Series | NJ 2312 | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 60mm | ||
Race Width 46mm | ||
Bore Type Cylindrical | ||
Cage Material Sheet Metal | ||
Limiting Speed 6700rpm | ||
Number of Rows 1 | ||
Static Load Rating 265kN | ||
Outside Diameter 130mm | ||
Standards/Approvals No | ||
Internal Clearance C3 | ||
Dynamic Load Rating 260kN | ||
Series NJ 2312 | ||
- COO (Country of Origin):
- DE

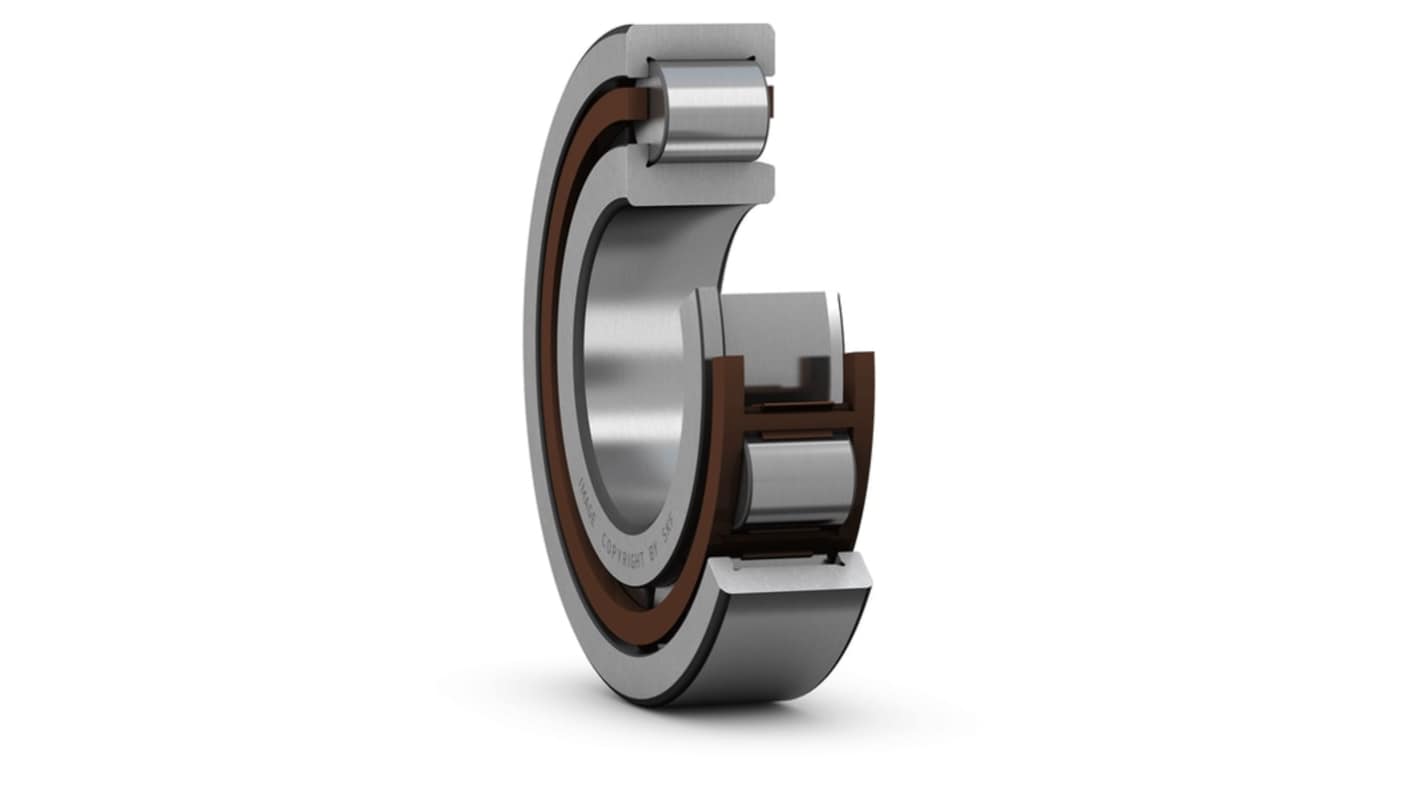

The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design
