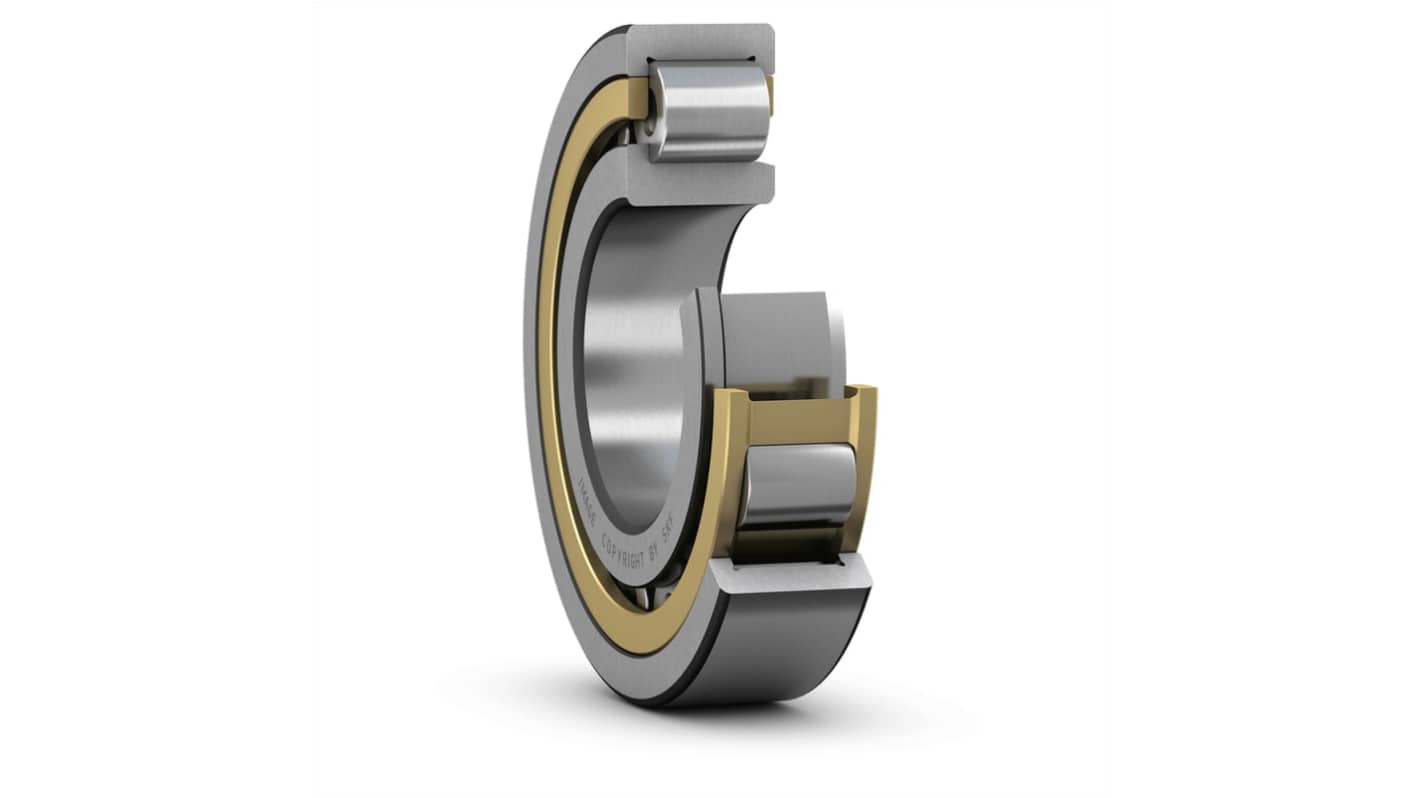

SKF NJ 312 ECP/C3 60 mm ID Cylindrical Roller Bearing, 130 mm OD
- RS Stock No.:
- 585-869
- Mfr. Part No.:
- NJ 312 ECP/C3
- Brand:
- SKF
Subtotal (1 pack of 2 units)*
£225.91
(exc. VAT)
£271.09
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £225.91 | £112.955 |
*price indicative
- RS Stock No.:
- 585-869
- Mfr. Part No.:
- NJ 312 ECP/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 60 mm | |
| Race Width | 31mm | |
| Bore Type | Parallel | |
| Roller Material | Bearing Steel | |
| Cage Material | Non-Metallic | |
| Bearing Material | Bearing Steel | |
| Limiting Speed | 6700rpm | |
| Number of Rows | 1 | |
| Outside Diameter | 130 mm | |
| Dynamic Load Rating | 173kN | |
| Series | NJ | |
| End Type | Open | |
| Standards/Approvals | RoHS Compliance | |
| Static Load Rating | 160kN | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 60 mm | ||
Race Width 31mm | ||
Bore Type Parallel | ||
Roller Material Bearing Steel | ||
Cage Material Non-Metallic | ||
Bearing Material Bearing Steel | ||
Limiting Speed 6700rpm | ||
Number of Rows 1 | ||
Outside Diameter 130 mm | ||
Dynamic Load Rating 173kN | ||
Series NJ | ||
End Type Open | ||
Standards/Approvals RoHS Compliance | ||
Static Load Rating 160kN | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design
