SKF NKX 17 Z 17 mm I.D Needle Roller Bearing Thrust Ball, Needle Roller, 26 mm O.D
- RS Stock No.:
- 464-452
- Mfr. Part No.:
- NKX 17 Z
- Brand:
- SKF
Subtotal (1 unit)*
£63.77
(exc. VAT)
£76.52
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £63.77 |
*price indicative
- RS Stock No.:
- 464-452
- Mfr. Part No.:
- NKX 17 Z
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 17 mm | |
| Race Width | 25mm | |
| Dynamic Load Rating | 12.1kN | |
| Series | NKX 17 Z | |
| Static Load Rating | 16.6kN | |
| Outside Diameter | 26 mm | |
| Limiting Speed | 7000rpm | |
| Standards/Approvals | RoHS | |
| Bearing Material | Bearing Steel | |
| Bearing Type | Thrust Ball, Needle Roller | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 17 mm | ||
Race Width 25mm | ||
Dynamic Load Rating 12.1kN | ||
Series NKX 17 Z | ||
Static Load Rating 16.6kN | ||
Outside Diameter 26 mm | ||
Limiting Speed 7000rpm | ||
Standards/Approvals RoHS | ||
Bearing Material Bearing Steel | ||
Bearing Type Thrust Ball, Needle Roller | ||
- COO (Country of Origin):
- SK

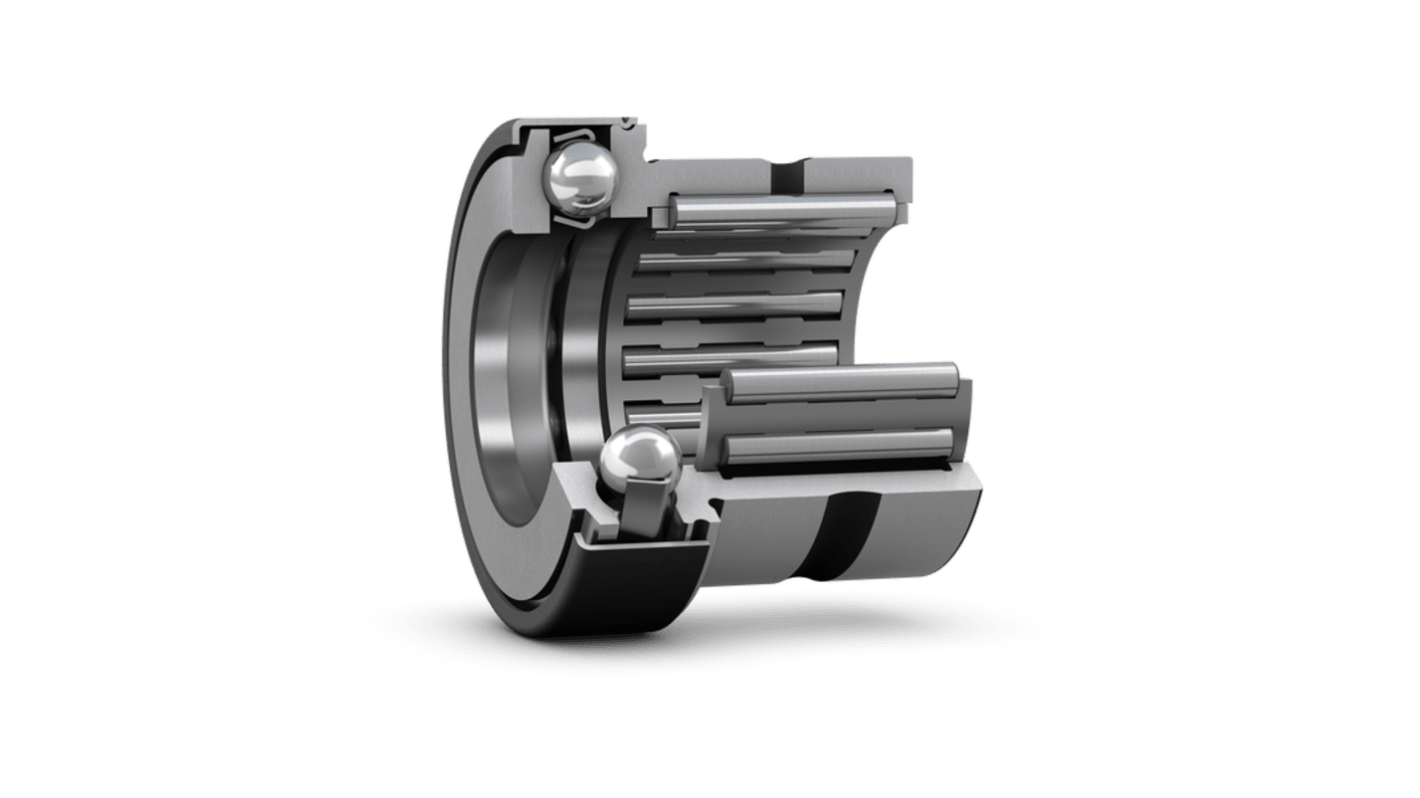

The SKF Bearings consist of a radial needle roller bearing combined with an angular contact ball bearing. Together they can accommodate both heavy radial loads and light axial loads in both directions. In addition, they can operate at high speeds. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space.
Accommodate both radial and axial loads
High load carrying capacity
Relatively high speed capability
