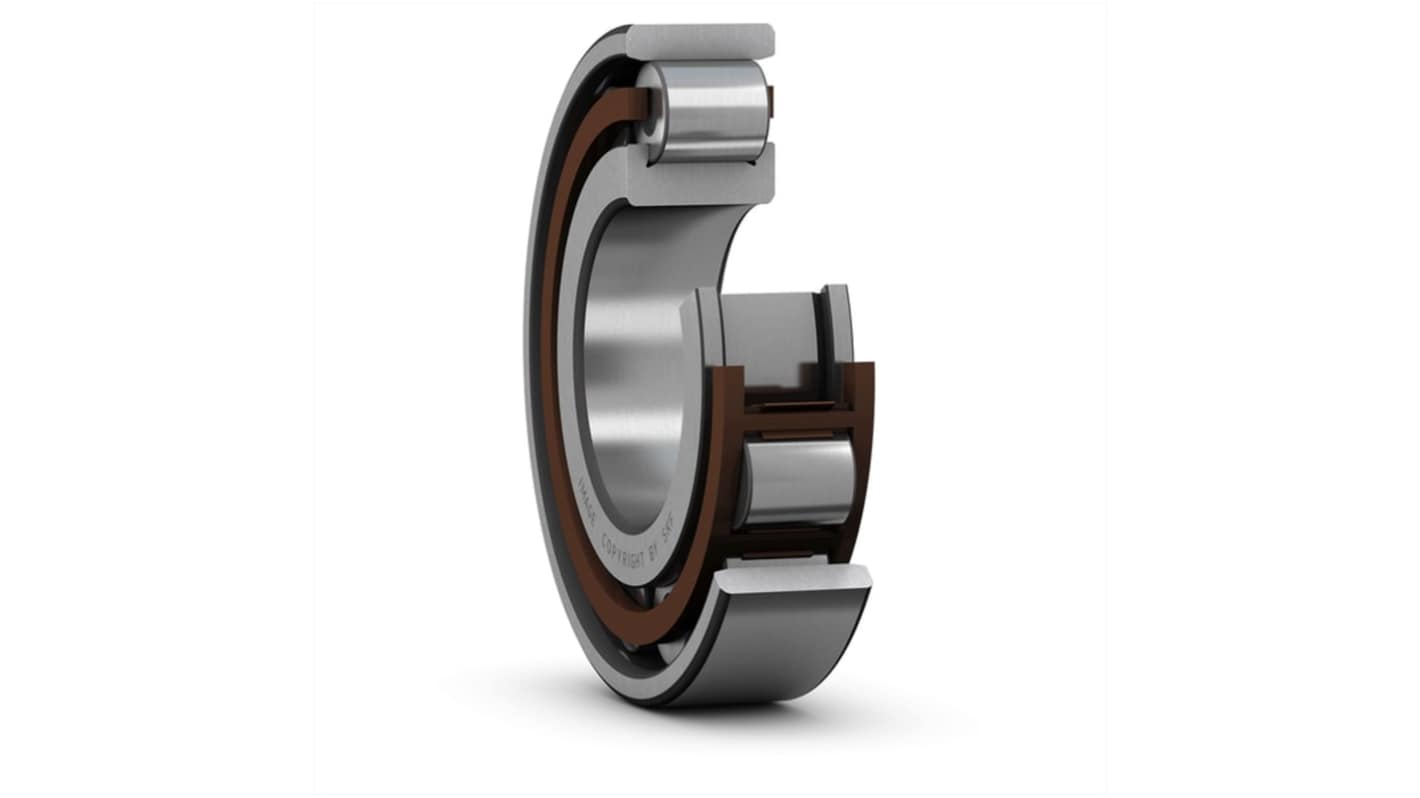

SKF N 203 ECP 17 mm ID Cylindrical Roller Bearing, 40 mm OD
- RS Stock No.:
- 463-764
- Mfr. Part No.:
- N 203 ECP
- Brand:
- SKF
Subtotal (1 unit)*
£89.86
(exc. VAT)
£107.83
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £89.86 |
*price indicative
- RS Stock No.:
- 463-764
- Mfr. Part No.:
- N 203 ECP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 17mm | |
| Race Width | 12mm | |
| Bore Type | Cylindrical | |
| Cage Material | Non-Metallic | |
| Series | N 203 | |
| Number of Rows | 1 | |
| Static Load Rating | 14.3kN | |
| Outside Diameter | 40mm | |
| Dynamic Load Rating | 20kN | |
| Standards/Approvals | No | |
| Limiting Speed | 22000rpm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 17mm | ||
Race Width 12mm | ||
Bore Type Cylindrical | ||
Cage Material Non-Metallic | ||
Series N 203 | ||
Number of Rows 1 | ||
Static Load Rating 14.3kN | ||
Outside Diameter 40mm | ||
Dynamic Load Rating 20kN | ||
Standards/Approvals No | ||
Limiting Speed 22000rpm | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the inner ring and no flanges on the outer ring. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
Low friction
Long service life
Accommodate axial displacement in both directions
