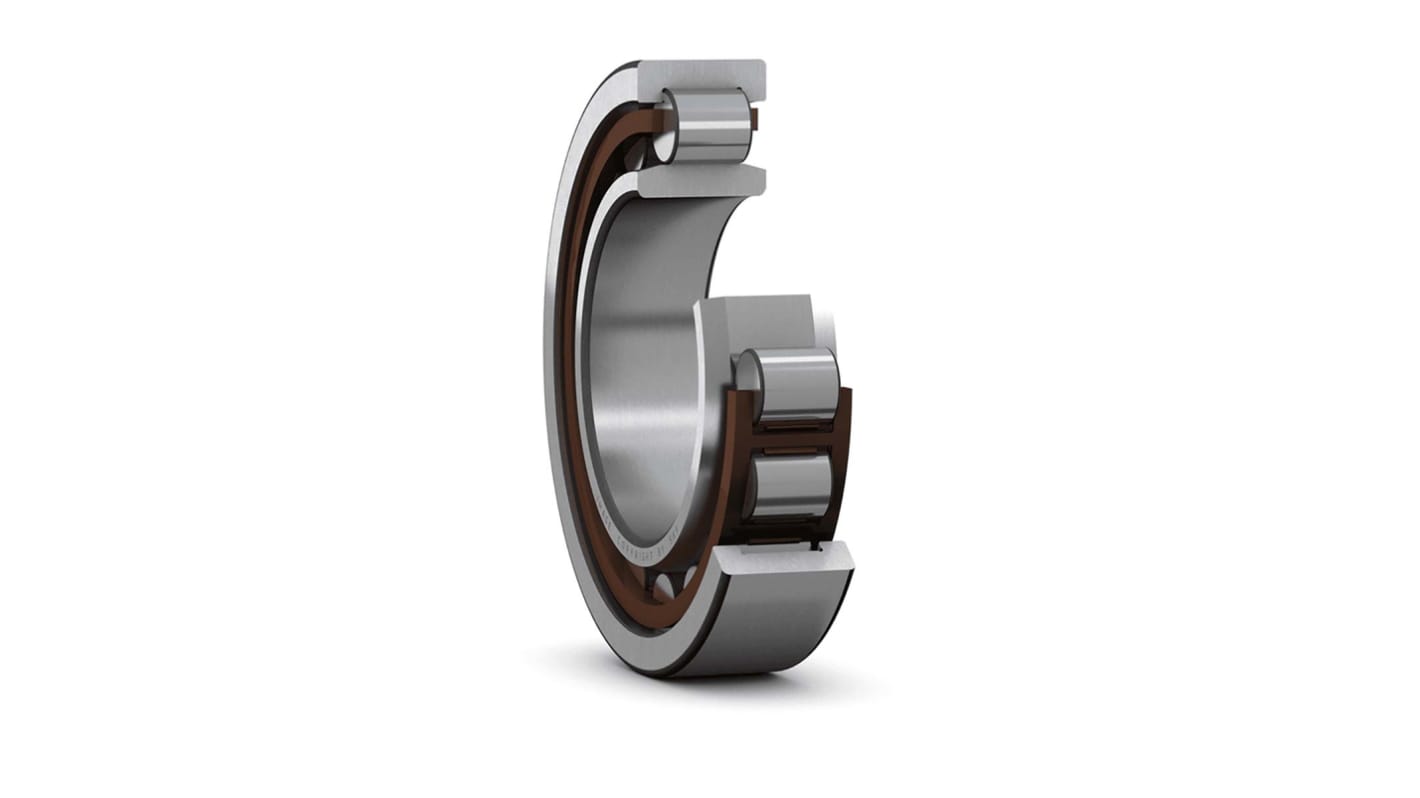

SKF NU 2203 ECP 17mm I.D Cylindrical Cylindrical Roller Bearing, 40mm O.D
- RS Stock No.:
- 209-2018
- Mfr. Part No.:
- NU 2203 ECP
- Brand:
- SKF
Subtotal (1 unit)*
£42.21
(exc. VAT)
£50.65
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 9 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £42.21 |
*price indicative
- RS Stock No.:
- 209-2018
- Mfr. Part No.:
- NU 2203 ECP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 17mm | |
Outside Diameter | 40mm | |
Roller Bearing Type | Cylindrical | |
Race Width | 16mm | |
Bore Type | Parallel | |
Static Load Rating | 21.6kN | |
Cage Material | Non-metallic | |
Number of Rows | 1 | |
Dynamic Load Rating | 27.5kN | |
Limiting Speed | 22000rpm | |
Reference Speed | 20000rpm | |
Fatigue Limit Load | 2.65kN | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 17mm | ||
Outside Diameter 40mm | ||
Roller Bearing Type Cylindrical | ||
Race Width 16mm | ||
Bore Type Parallel | ||
Static Load Rating 21.6kN | ||
Cage Material Non-metallic | ||
Number of Rows 1 | ||
Dynamic Load Rating 27.5kN | ||
Limiting Speed 22000rpm | ||
Reference Speed 20000rpm | ||
Fatigue Limit Load 2.65kN | ||
- COO (Country of Origin):
- DE
SKF NU 2203 ECP Cylindrical Roller Bearing, 17mm Inside Diameter, 40mm Outside Diameter - NU 2203 ECP
This cylindrical roller bearing is designed to provide reliable performance in demanding applications. With an inside diameter of 17mm and an outside diameter of 40mm, it is well-suited for various industrial uses. This single-row design features a non-metallic cage, optimising weight and ensuring smooth operation under dynamic conditions. The bearing is engineered to handle high loads and speeds, making it an essential component for automation and mechanical systems.
Features & Benefits
• Static load rating of 21.6kN supports heavy loads
• Dynamic load capacity of 27.5kN enhances operational capacity
• Non-metallic cage ensures reduced weight and friction
• Optimised for reference speeds of up to 20,000 r/min
• Limiting speed of 22,000 r/min allows for high-speed requirement
• Compact design enables versatility in various mechanisms
• Dynamic load capacity of 27.5kN enhances operational capacity
• Non-metallic cage ensures reduced weight and friction
• Optimised for reference speeds of up to 20,000 r/min
• Limiting speed of 22,000 r/min allows for high-speed requirement
• Compact design enables versatility in various mechanisms
Applications
• Used for automation systems requiring high-speed rotation
• Suitable for electrical and mechanical machinery
• Ideal for equipment in manufacturing and assembly lines
• Used for precision engineering projects to maintain performance
• Suitable for electrical and mechanical machinery
• Ideal for equipment in manufacturing and assembly lines
• Used for precision engineering projects to maintain performance
What are the implications of the static and dynamic load ratings for operational reliability?
The static load rating of 21.6kN indicates the maximum load the bearing can withstand when stationary without permanent deformation. The dynamic load rating of 27.5kN reflects the maximum load during operation, where wear and degradation must be considered over time. Using these ratings ensures the bearing operates efficiently within safe load limits, extending its lifespan.
How does the non-metallic cage contribute to performance?
The non-metallic cage effectively reduces weight while providing effective guidance for the rollers. This design minimises friction between components, thereby enhancing rotational efficiency and reducing heat generation, leading to improved overall performance.
What type of conditions are these bearings suitable for?
These bearings are suitable for both standard and high-speed conditions, performing effectively within a broad range of temperatures. They are particularly effective in environments where reduced maintenance due to lower friction is critical.
