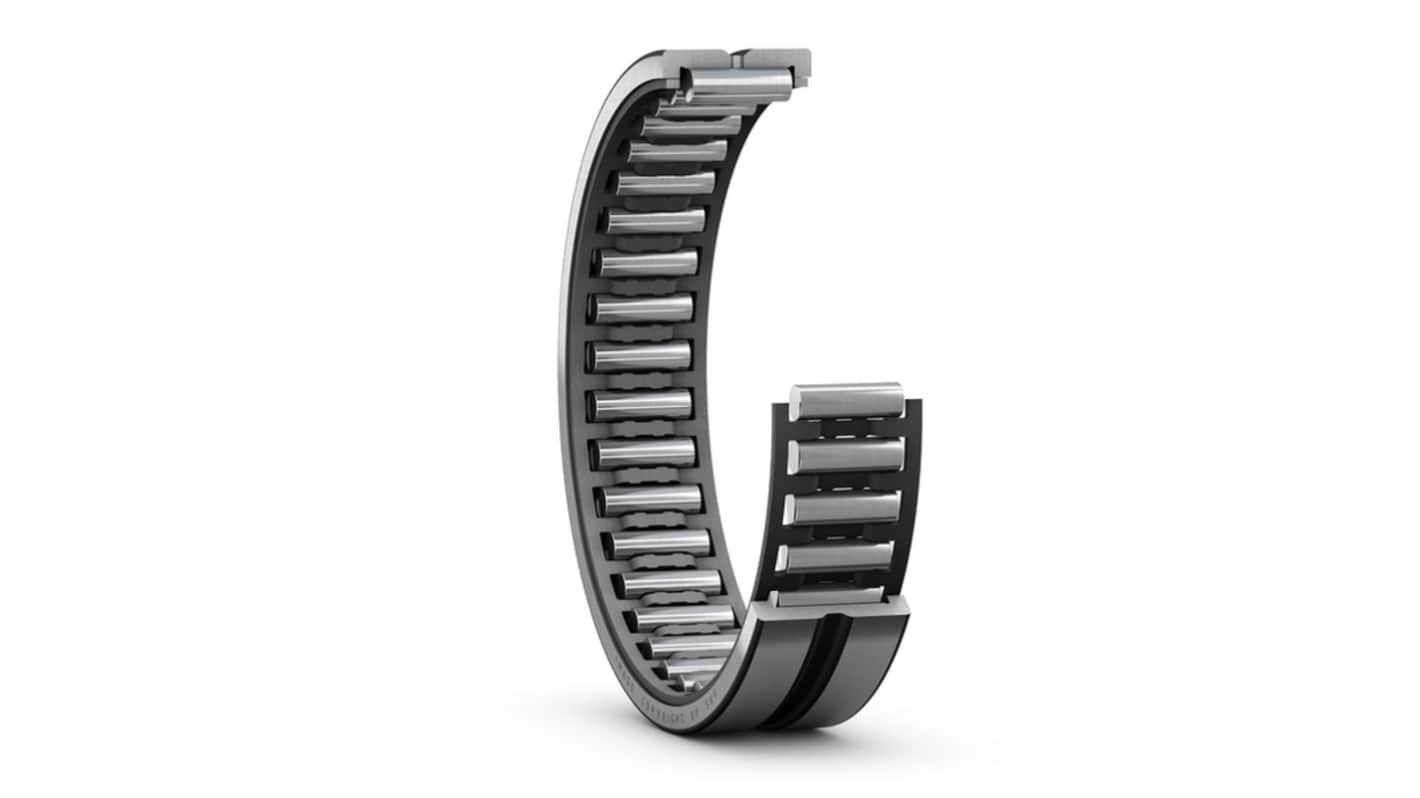

SKF RNA 4906 35 mm ID Roller Bearing Needle, 47 mm OD
- RS Stock No.:
- 463-007
- Mfr. Part No.:
- RNA 4906
- Brand:
- SKF
Subtotal (1 unit)*
£35.67
(exc. VAT)
£42.80
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 3 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £35.67 |
*price indicative
- RS Stock No.:
- 463-007
- Mfr. Part No.:
- RNA 4906
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 35mm | |
| Race Width | 17mm | |
| Cage Material | Sheet Steel | |
| Static Load Rating | 39kN | |
| Number of Rows | 1 | |
| Bearing Material | Steel | |
| Dynamic Load Rating | 30kN | |
| Standards/Approvals | RoHS | |
| Series | RNA 4906 | |
| Limiting Speed | 13000rpm | |
| Outside Diameter | 47mm | |
| Bearing Type | Needle | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 35mm | ||
Race Width 17mm | ||
Cage Material Sheet Steel | ||
Static Load Rating 39kN | ||
Number of Rows 1 | ||
Bearing Material Steel | ||
Dynamic Load Rating 30kN | ||
Standards/Approvals RoHS | ||
Series RNA 4906 | ||
Limiting Speed 13000rpm | ||
Outside Diameter 47mm | ||
Bearing Type Needle | ||
The SKF Single row needle roller bearings without an inner ring consist of an outer ring with a needle roller and cage assembly. They are an excellent choice for compact bearing arrangements in applications where hardened and ground raceways can be provided on the shaft. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.
High radial load carrying capacity
High stiffness
Low cross sectional height
Accommodate axial displacement in both directions
