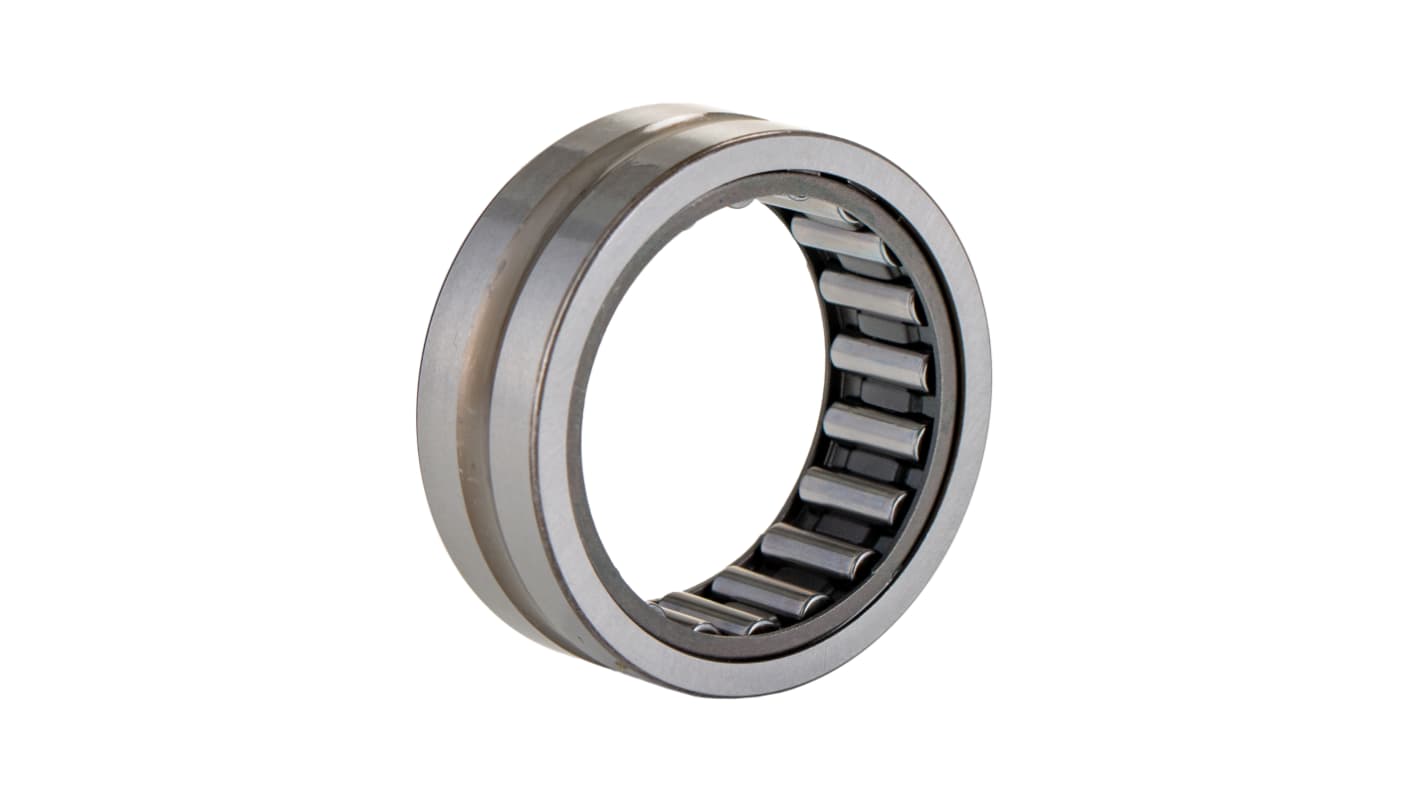

INA RNA4906-XL 35mm I.D Needle Roller Bearing, 47mm O.D
- RS Stock No.:
- 174-1416
- Mfr. Part No.:
- RNA4906-XL
- Brand:
- INA
Bulk discount available
Subtotal (1 unit)*
£31.57
(exc. VAT)
£37.88
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 16 unit(s) shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £31.57 |
5 - 9 | £30.28 |
10 - 24 | £29.67 |
25 + | £29.05 |
*price indicative
- RS Stock No.:
- 174-1416
- Mfr. Part No.:
- RNA4906-XL
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | INA | |
Inside Diameter | 35mm | |
Outside Diameter | 47mm | |
Roller Bearing Type | Needle | |
Race Width | 17mm | |
Bore Type | Parallel | |
Static Load Rating | 35500N | |
Cage Material | Sheet Steel | |
Number of Rows | 1 | |
Dynamic Load Rating | 28500N | |
End Type | Open | |
Reference Speed | 6900rpm | |
Limiting Speed | 12600rpm | |
Maximum Speed - Grease | 7500rpm | |
Fatigue Limit Load | 6600N | |
Maximum Speed - Oil | 13000rpm | |
Select all | ||
---|---|---|
Brand INA | ||
Inside Diameter 35mm | ||
Outside Diameter 47mm | ||
Roller Bearing Type Needle | ||
Race Width 17mm | ||
Bore Type Parallel | ||
Static Load Rating 35500N | ||
Cage Material Sheet Steel | ||
Number of Rows 1 | ||
Dynamic Load Rating 28500N | ||
End Type Open | ||
Reference Speed 6900rpm | ||
Limiting Speed 12600rpm | ||
Maximum Speed - Grease 7500rpm | ||
Fatigue Limit Load 6600N | ||
Maximum Speed - Oil 13000rpm | ||
Schaeffler Roller Bearing, 35mm Inside Diameter, 47mm Outside Diameter - RNA4906-XL
This roller bearing is a high-performance needle roller bearing designed for demanding applications. With an inside diameter of 35mm and an outside diameter of 47mm, it provides robust support for radial loads. The single-row design and parallel bore type make it suitable for various mechanical assemblies. The bearing also offers substantial load ratings, with a basic dynamic load rating of 28,500 N and a static load rating of 35,500N, ensuring reliability in performance.
Features & Benefits
• Needle roller design optimises load distribution and reduces friction
• Open type allows for easy lubrication access
• High static load rating ensures durability under heavy loads
• Dynamic load rating suitable for varied operating conditions
• Capable of operating at a limiting speed of 12,600r/min
• Lightweight design enhances efficiency in rotational applications
• Open type allows for easy lubrication access
• High static load rating ensures durability under heavy loads
• Dynamic load rating suitable for varied operating conditions
• Capable of operating at a limiting speed of 12,600r/min
• Lightweight design enhances efficiency in rotational applications
Applications
• Utilised in systems requiring precise motion
• Ideal for electrical machinery relying on high load capacity
• Suitable for construction equipment where space is limited
• Employed in assemblies with stringent performance needs
• Ideal for electrical machinery relying on high load capacity
• Suitable for construction equipment where space is limited
• Employed in assemblies with stringent performance needs
What are the lubrication options for this bearing?
It can accommodate both grease and oil lubrication, with a recommended maximum speed of 7,500r/min for grease and 13,000r/min for oil, ensuring efficient operation across various applications.
How does the fatigue load limit affect the bearing's lifespan?
The fatigue limit load of 6,600N is critical in predicting the bearing's lifespan under continuous operational conditions by allowing users to assess load management strategies effectively.
What temperature range can it operate under?
This bearing functions effectively within an operating temperature range of -30°C to 120°C, making it suitable for a variety of industrial environments.
How does the design facilitate maintenance?
The open type design enables straightforward access for lubrication and inspection, thus simplifying maintenance routines and extending operational life.
