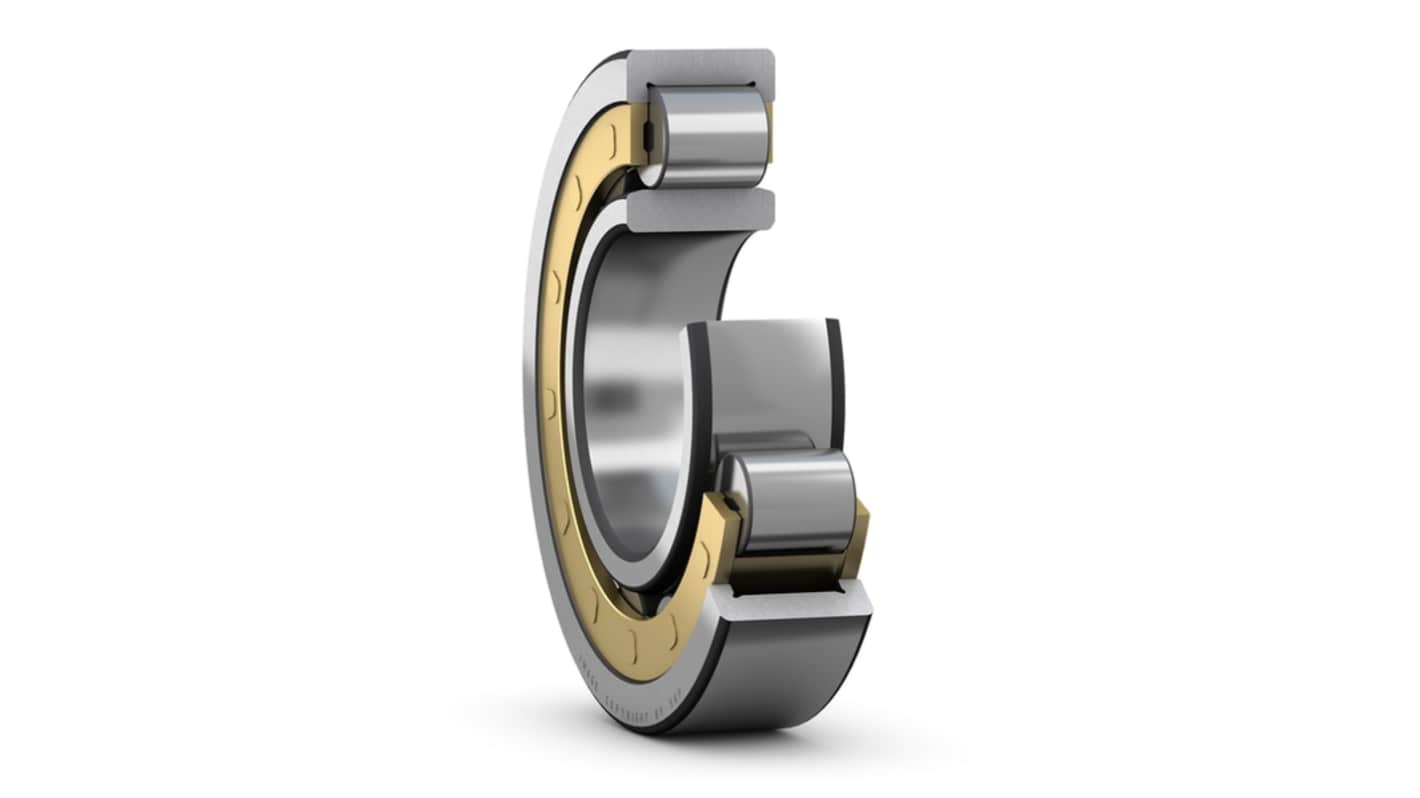

SKF NU 1044 M/C3 220 mm ID Roller Bearing, 340 mm OD
- RS Stock No.:
- 462-787
- Mfr. Part No.:
- NU 1044 M/C3
- Brand:
- SKF
Subtotal (1 unit)*
£2,297.91
(exc. VAT)
£2,757.49
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,297.91 |
*price indicative
- RS Stock No.:
- 462-787
- Mfr. Part No.:
- NU 1044 M/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 220mm | |
| Race Width | 56mm | |
| Bore Type | Cylindrical | |
| Cage Material | Machined Brass | |
| Limiting Speed | 2200rpm | |
| Series | NU | |
| Standards/Approvals | RoHS | |
| Dynamic Load Rating | 570kN | |
| Outside Diameter | 340mm | |
| Internal Clearance | C3 | |
| Static Load Rating | 735kN | |
| Number of Rows | 1 | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 220mm | ||
Race Width 56mm | ||
Bore Type Cylindrical | ||
Cage Material Machined Brass | ||
Limiting Speed 2200rpm | ||
Series NU | ||
Standards/Approvals RoHS | ||
Dynamic Load Rating 570kN | ||
Outside Diameter 340mm | ||
Internal Clearance C3 | ||
Static Load Rating 735kN | ||
Number of Rows 1 | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions.
High radial load carrying capacity
Low friction
Long service life
