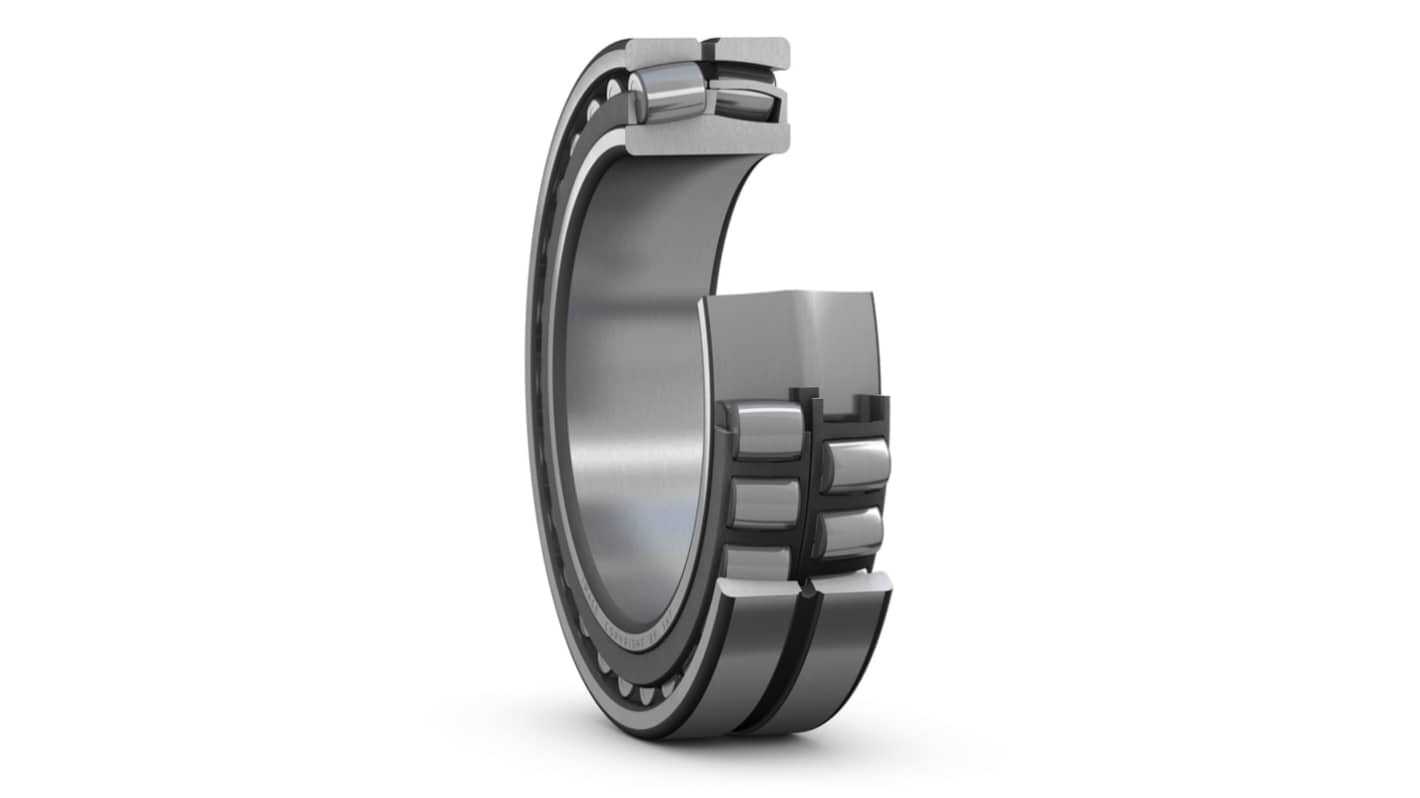

SKF 22232 CCK/W33 Tapered 1:12 160 mm ID Spherical Roller Bearing, 290 mm OD
- RS Stock No.:
- 460-197
- Mfr. Part No.:
- 22232 CCK/W33
- Brand:
- SKF
Subtotal (1 unit)*
£1,511.49
(exc. VAT)
£1,813.79
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 31 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,511.49 |
*price indicative
- RS Stock No.:
- 460-197
- Mfr. Part No.:
- 22232 CCK/W33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 160 mm | |
| Race Width | 80mm | |
| Bore Type | Tapered 1:12 | |
| Cage Material | Sheet Metal | |
| Number of Rows | 2 | |
| Limiting Speed | 2800rpm | |
| Standards/Approvals | RoHS | |
| Static Load Rating | 1290kN | |
| Dynamic Load Rating | 1043kN | |
| Outside Diameter | 290 mm | |
| Internal Clearance | CN | |
| Series | 22232 CCK/W33 | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 160 mm | ||
Race Width 80mm | ||
Bore Type Tapered 1:12 | ||
Cage Material Sheet Metal | ||
Number of Rows 2 | ||
Limiting Speed 2800rpm | ||
Standards/Approvals RoHS | ||
Static Load Rating 1290kN | ||
Dynamic Load Rating 1043kN | ||
Outside Diameter 290 mm | ||
Internal Clearance CN | ||
Series 22232 CCK/W33 | ||
- COO (Country of Origin):
- SE
Omkar
The SKF Spherical roller bearing is engineered for high load capacity and precise performance in demanding applications. This robust component excels in environments requiring exceptional reliability, supporting both radial and axial loads. With a carefully crafted internal design, it ensures stability and optimum alignment, significantly reducing wear and prolonging lifespan. Its enhanced cage design promotes smooth rotation while mitigating friction, making it an essential choice for machinery that operates under heavy loads or high speeds. Whether for industrial or commercial use, this bearing is a cornerstone for efficient machinery operation, ensuring that performance remains uninterrupted even in the most challenging conditions.
Designed to accommodate misalignment for increased reliability
Robust construction enables handling of heavy loads effortlessly
Crafted for minimal friction, enhancing overall efficiency
Optimised for high-speed applications with reduced wear
Equipped with advanced features to extend service life
