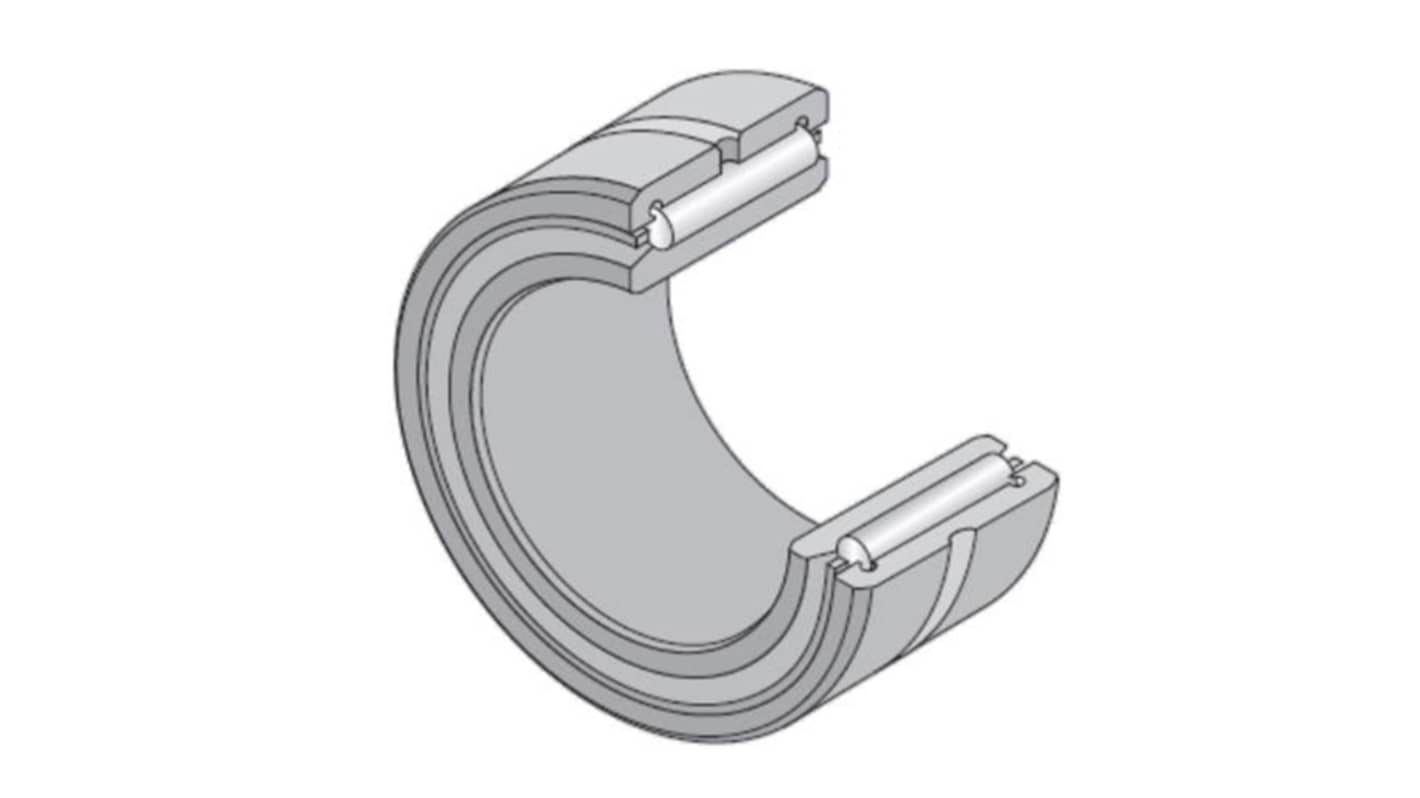

NTN NK85/25R+1R75X85X25 75 mm I.D Needle Roller Bearing Machined-ring, Needle Roller, 105 mm O.D
- RS Stock No.:
- 455-339
- Mfr. Part No.:
- NK85/25R+1R75X85X25
- Brand:
- NTN
Subtotal (1 unit)*
£103.77
(exc. VAT)
£124.52
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £103.77 |
*price indicative
- RS Stock No.:
- 455-339
- Mfr. Part No.:
- NK85/25R+1R75X85X25
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 75 mm | |
| Race Width | 25mm | |
| Bore Type | Round | |
| Roller Material | Steel | |
| Cage Material | Steel | |
| Outside Diameter | 105 mm | |
| Limiting Speed | 4700rpm | |
| Series | NK85/25R+1R75X85X25 | |
| Static Load Rating | 123kN | |
| Number of Rows | 1 | |
| Bearing Material | High Carbon Chrome Steel | |
| Internal Clearance | CN | |
| Maximum Speed - Grease | 3100rpm | |
| Maximum Speed - Oil | 4700rpm | |
| Standards/Approvals | RoHS | |
| End Type | Open | |
| Dynamic Load Rating | 70.5kN | |
| Bearing Type | Machined-ring, Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 75 mm | ||
Race Width 25mm | ||
Bore Type Round | ||
Roller Material Steel | ||
Cage Material Steel | ||
Outside Diameter 105 mm | ||
Limiting Speed 4700rpm | ||
Series NK85/25R+1R75X85X25 | ||
Static Load Rating 123kN | ||
Number of Rows 1 | ||
Bearing Material High Carbon Chrome Steel | ||
Internal Clearance CN | ||
Maximum Speed - Grease 3100rpm | ||
Maximum Speed - Oil 4700rpm | ||
Standards/Approvals RoHS | ||
End Type Open | ||
Dynamic Load Rating 70.5kN | ||
Bearing Type Machined-ring, Needle Roller | ||
- COO (Country of Origin):
- JP
The NTN Needle roller bearing with inner ring is engineered to provide exceptional performance in various industrial applications. Designed with precision, this bearing features a machined-ring structure, ensuring durability and robustness under dynamic loads. The inclusion of double-side ribs and a lubrication hole contributes to smooth operation and longevity, making it an ideal choice for equipment that requires reliable and efficient bearing solutions. With its wide operational temperature range and impressive load ratings, this product stands out in environments demanding high-speed and high-load capabilities.
Incorporates a lubrication hole for easy maintenance and extended service life
Constructed to operate efficiently within a broad temperature spectrum
Offers high dynamic and static load ratings suitable for heavy-duty applications
Compatible with both grease and oil lubrication for versatile use
Designed for minimal axial offset for improved performance
Manufactured from high-quality materials for reliable operation
