SKF NKI 75/35 75 mm I.D Needle Roller Bearing Needle Roller, 105 mm O.D
- RS Stock No.:
- 463-821
- Mfr. Part No.:
- NKI 75/35
- Brand:
- SKF
Subtotal (1 unit)*
£191.15
(exc. VAT)
£229.38
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £191.15 |
*price indicative
- RS Stock No.:
- 463-821
- Mfr. Part No.:
- NKI 75/35
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 75 mm | |
| Race Width | 35mm | |
| Cage Material | Sheet Metal | |
| Limiting Speed | 5300rpm | |
| Outside Diameter | 105 mm | |
| Dynamic Load Rating | 112kN | |
| Standards/Approvals | RoHS | |
| Series | NKI | |
| Static Load Rating | 200kN | |
| Number of Rows | 1 | |
| Bearing Material | Bearing Steel | |
| Internal Clearance | CN | |
| Bearing Type | Needle Roller | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 75 mm | ||
Race Width 35mm | ||
Cage Material Sheet Metal | ||
Limiting Speed 5300rpm | ||
Outside Diameter 105 mm | ||
Dynamic Load Rating 112kN | ||
Standards/Approvals RoHS | ||
Series NKI | ||
Static Load Rating 200kN | ||
Number of Rows 1 | ||
Bearing Material Bearing Steel | ||
Internal Clearance CN | ||
Bearing Type Needle Roller | ||
- COO (Country of Origin):
- SK

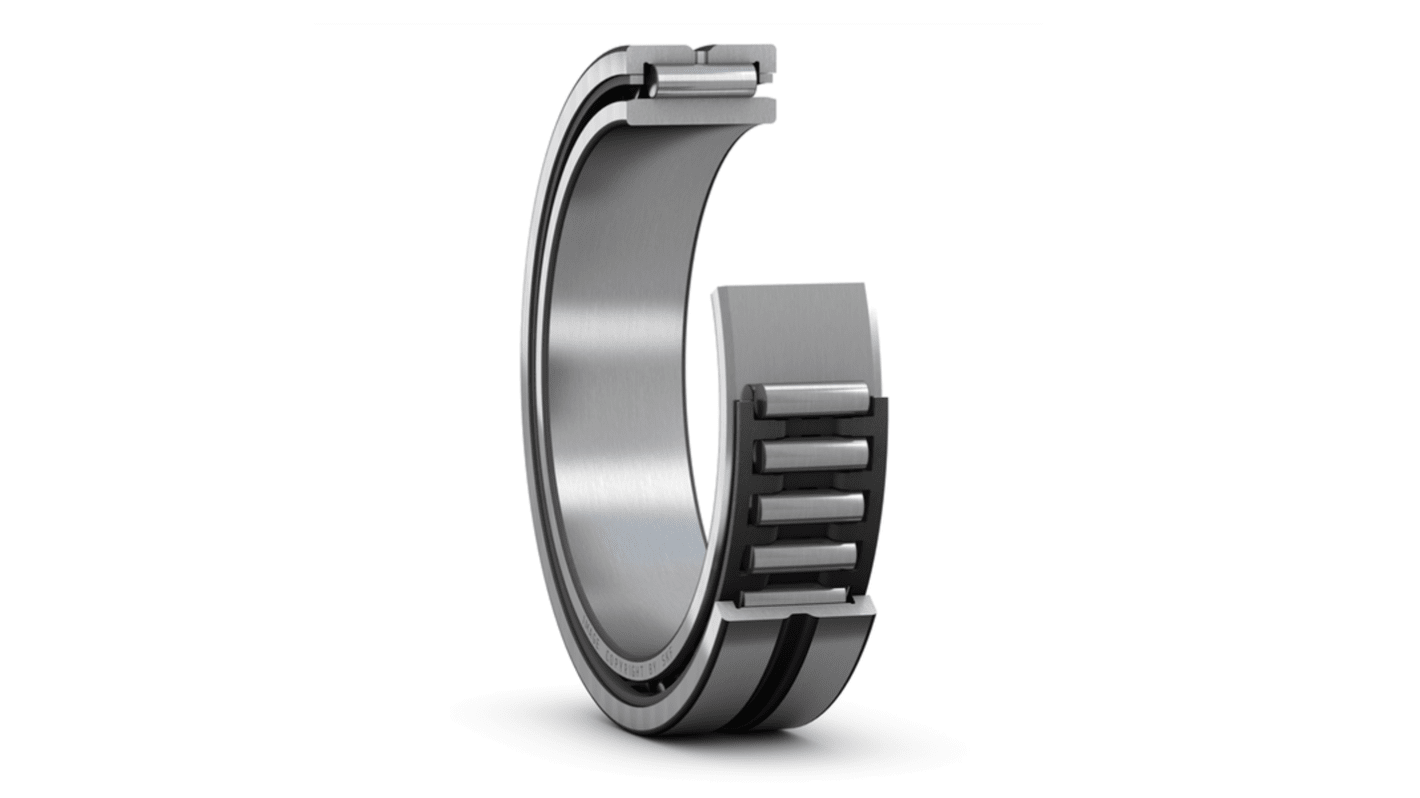

The SKF Bearings consist of a radial needle roller bearing combined with an angular contact ball bearing. Together they can accommodate both heavy radial loads and light axial loads in one direction. In addition, they can operate at high speeds. Their low cross-sectional height makes the bearings particularly suitable for applications where other types of locating bearing arrangements occupy too much space.
Accommodate radial loads and axial loads in one direction
High load carrying capacity
High-speed capability
Low cross section
Separable design
