NTN NK85/35R+1R75X85X35 75 mm I.D Needle Roller Bearing Needle Roller, Machined-ring, 105 mm O.D
- RS Stock No.:
- 455-341
- Mfr. Part No.:
- NK85/35R+1R75X85X35
- Brand:
- NTN
Subtotal (1 unit)*
£121.52
(exc. VAT)
£145.82
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £121.52 |
*price indicative
- RS Stock No.:
- 455-341
- Mfr. Part No.:
- NK85/35R+1R75X85X35
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 75 mm | |
| Race Width | 35mm | |
| Bore Type | Round | |
| Cage Material | Steel | |
| Roller Material | Steel | |
| Bearing Material | High Carbon Chrome Steel | |
| Limiting Speed | 4700rpm | |
| Maximum Speed - Grease | 3100rpm | |
| Number of Rows | 1 | |
| Static Load Rating | 193kN | |
| Series | NK85/35R+1R75X85X35 | |
| Internal Clearance | CN | |
| Outside Diameter | 105 mm | |
| Standards/Approvals | RoHS | |
| End Type | Open | |
| Dynamic Load Rating | 100kN | |
| Maximum Speed - Oil | 4700rpm | |
| Bearing Type | Needle Roller, Machined-ring | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 75 mm | ||
Race Width 35mm | ||
Bore Type Round | ||
Cage Material Steel | ||
Roller Material Steel | ||
Bearing Material High Carbon Chrome Steel | ||
Limiting Speed 4700rpm | ||
Maximum Speed - Grease 3100rpm | ||
Number of Rows 1 | ||
Static Load Rating 193kN | ||
Series NK85/35R+1R75X85X35 | ||
Internal Clearance CN | ||
Outside Diameter 105 mm | ||
Standards/Approvals RoHS | ||
End Type Open | ||
Dynamic Load Rating 100kN | ||
Maximum Speed - Oil 4700rpm | ||
Bearing Type Needle Roller, Machined-ring | ||
- COO (Country of Origin):
- JP

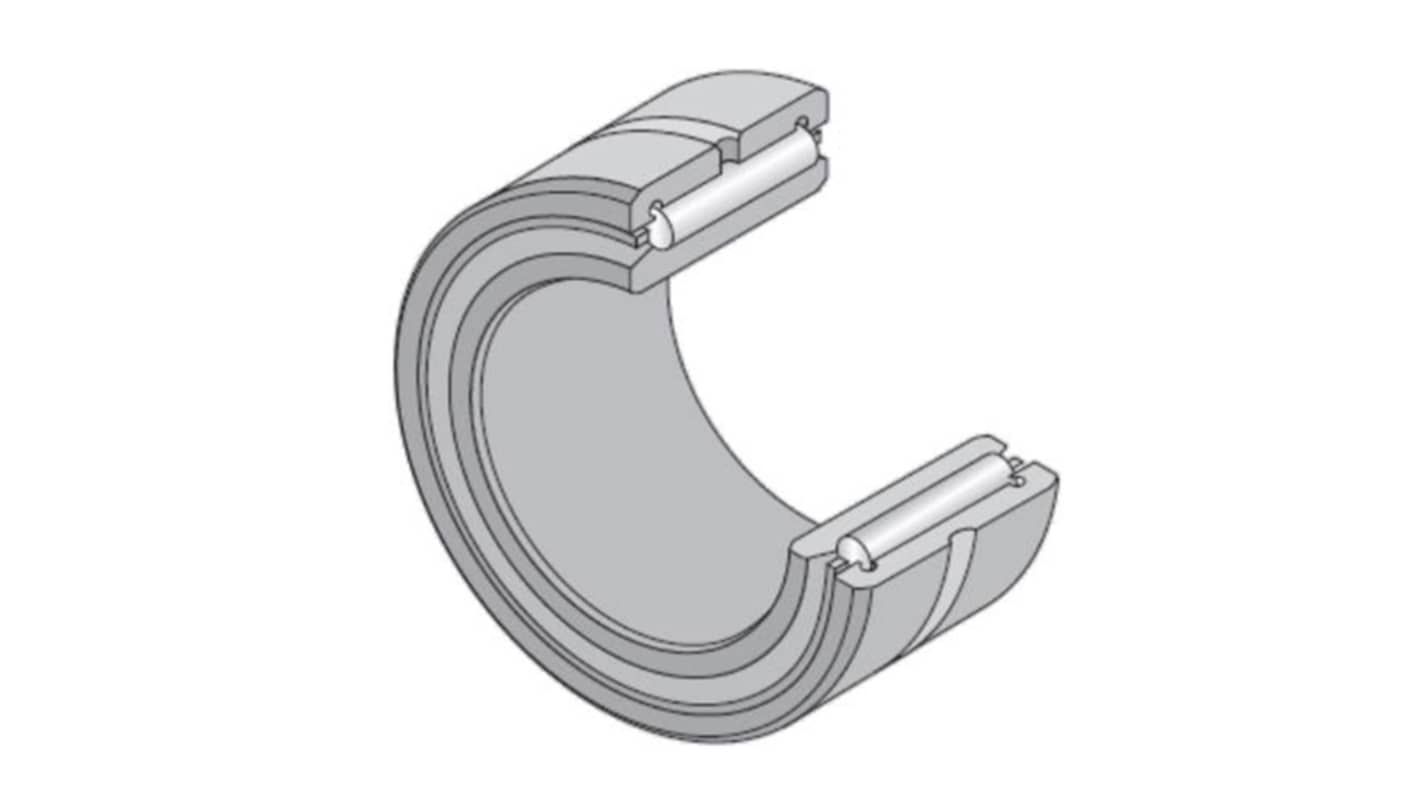

The NTN Needle roller bearing with a machined ring and inner ring is designed for optimal performance in demanding applications. This advanced piece of engineering combines robust construction with precise dimensions to fulfil various industrial needs. Its double-side ribs provide enhanced stability while the lubrication hole ensures effective maintenance. With a focus on reliability, this product excels in both grease and oil lubrication scenarios, making it ideal for environments that require versatility and efficiency. The compact design does not compromise on strength, allowing it to withstand significant loads while maintaining low friction. Trusted by professionals, this bearing stands as a testament to quality and durability in mechanical performance.
Versatile lubrication options cater to diverse operational requirements
Designed to accommodate a wide range of operating temperatures for adaptability
Dynamic load rating optimises longevity under variable loads
Simple maintenance facilitated by strategically placed lubrication holes
Compact design maximises space efficiency without sacrificing performance
