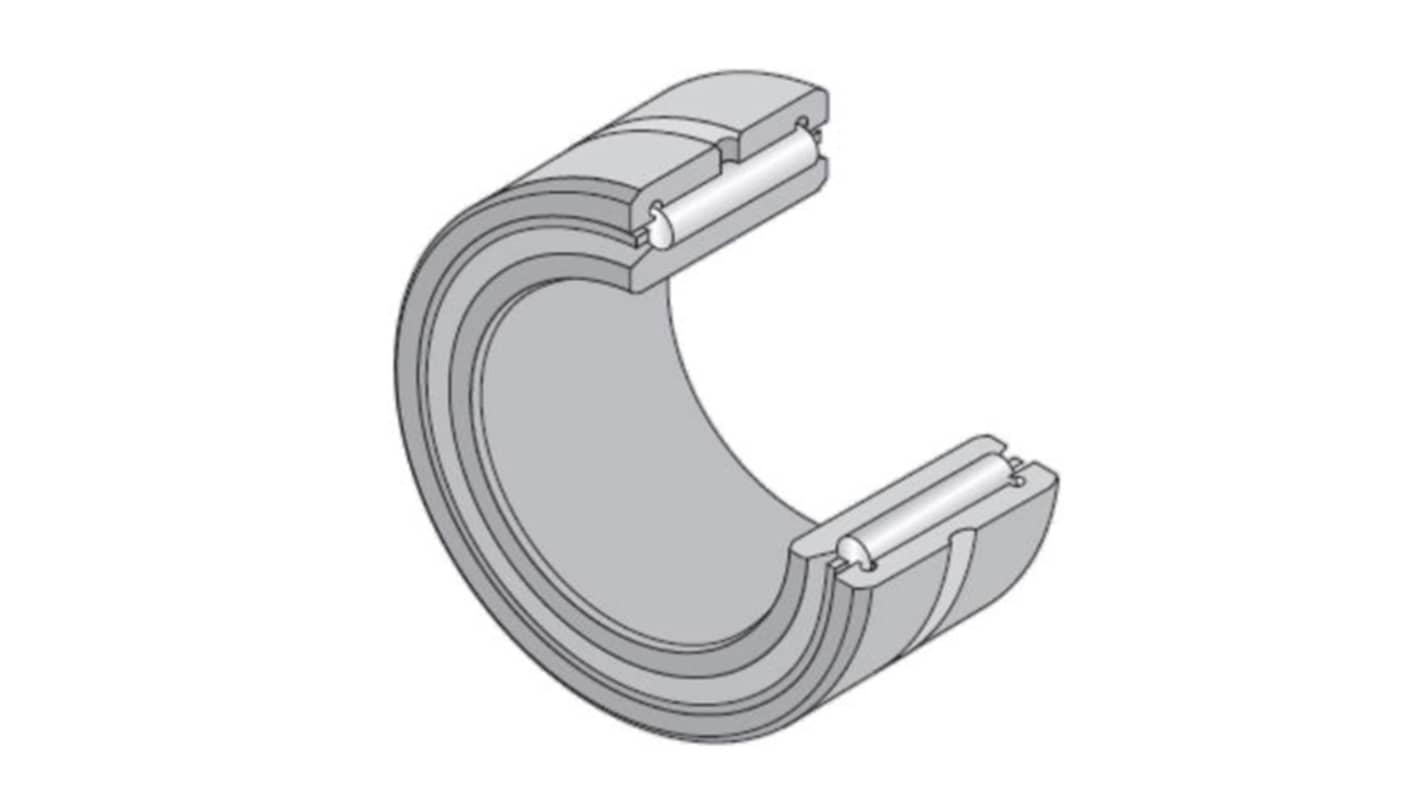

NTN NK80/35R+1R70X80X35 70 mm I.D Needle Roller Bearing Needle Roller, Machined-ring, 95 mm O.D
- RS Stock No.:
- 455-338
- Mfr. Part No.:
- NK80/35R+1R70X80X35
- Brand:
- NTN
Subtotal (1 unit)*
£106.45
(exc. VAT)
£127.74
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £106.45 |
*price indicative
- RS Stock No.:
- 455-338
- Mfr. Part No.:
- NK80/35R+1R70X80X35
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 70 mm | |
| Race Width | 35mm | |
| Bore Type | Round | |
| Cage Material | Steel | |
| Roller Material | Steel | |
| Outside Diameter | 95 mm | |
| Series | NK80/35R+1R70X80X35 | |
| Static Load Rating | 184kN | |
| Number of Rows | 1 | |
| Bearing Material | High Carbon Chrome Steel | |
| Internal Clearance | CN | |
| Limiting Speed | 3300rpm | |
| Maximum Speed - Grease | 3300rpm | |
| Maximum Speed - Oil | 5000rpm | |
| Standards/Approvals | RoHS | |
| End Type | Open | |
| Dynamic Load Rating | 79.5kN | |
| Bearing Type | Needle Roller, Machined-ring | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 70 mm | ||
Race Width 35mm | ||
Bore Type Round | ||
Cage Material Steel | ||
Roller Material Steel | ||
Outside Diameter 95 mm | ||
Series NK80/35R+1R70X80X35 | ||
Static Load Rating 184kN | ||
Number of Rows 1 | ||
Bearing Material High Carbon Chrome Steel | ||
Internal Clearance CN | ||
Limiting Speed 3300rpm | ||
Maximum Speed - Grease 3300rpm | ||
Maximum Speed - Oil 5000rpm | ||
Standards/Approvals RoHS | ||
End Type Open | ||
Dynamic Load Rating 79.5kN | ||
Bearing Type Needle Roller, Machined-ring | ||
- COO (Country of Origin):
- JP
The NTN Needle roller bearing, designed with precision and reliability in mind, is the ideal choice for applications requiring robust performance and durability. Crafted , this product features a machined-ring construction combined with an inner ring, ensuring enhanced stability under load. It is specifically made to accommodate high dynamic and static loads, allowing for seamless operation even in demanding conditions. With its integrated lubrication hole to facilitate proper maintenance, this bearing promises longevity and efficiency. The well-thought-out design incorporates double-side ribs, further elevating its durability and performance metrics. Perfect for a variety of industrial uses, it brings together the perfect blend of quality and innovation.
Features a compact design suitable for tight spaces without compromising strength
Constructed from high-quality material to resist wear and tear
Offers precision engineering that meets industry standards for excellent performance
Maximises operational efficiency with improved speed capabilities
Provides versatility across multiple applications within industrial machinery
