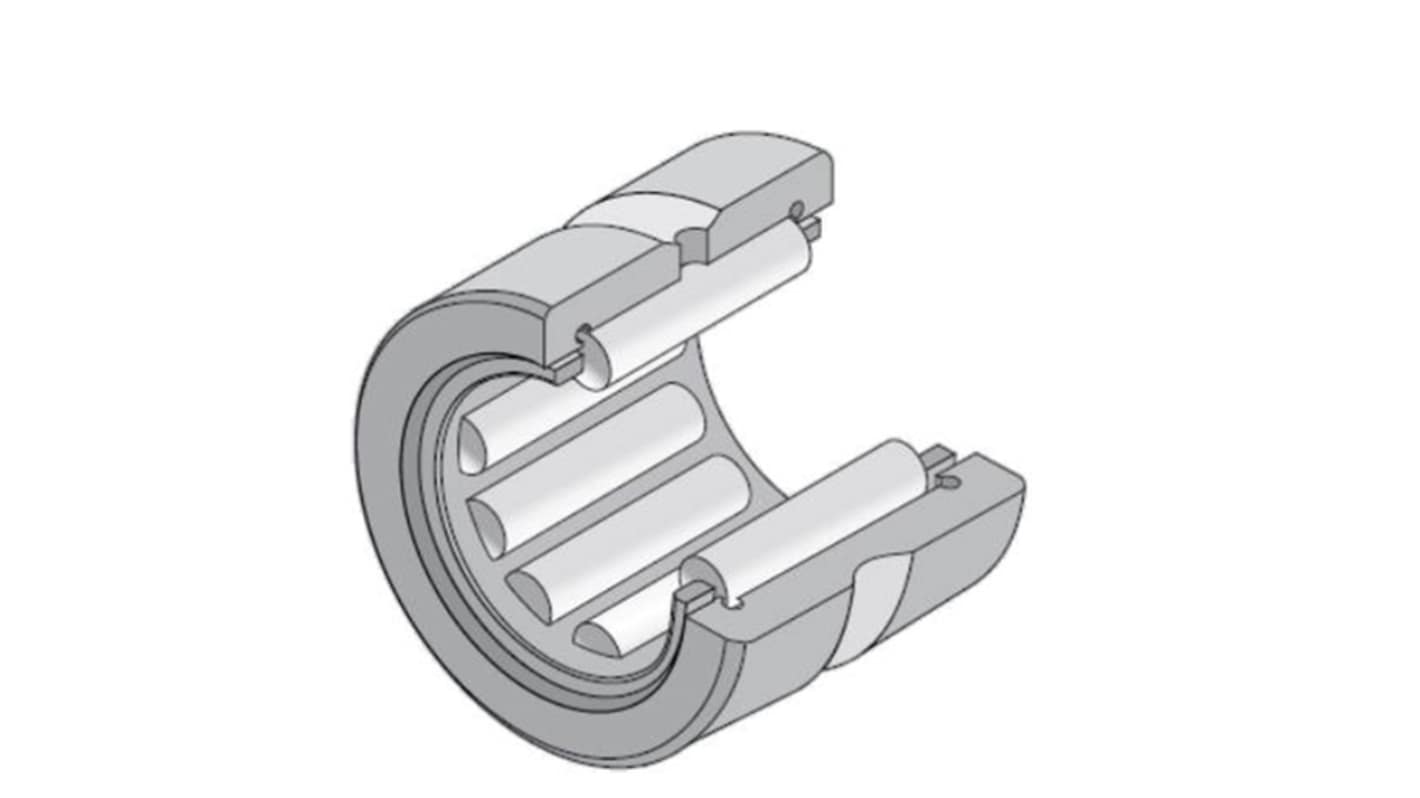

NTN NK80/35R 80 mm I.D Needle Roller Bearing Machined-ring, Needle Roller, 95 mm O.D
- RS Stock No.:
- 453-947
- Mfr. Part No.:
- NK80/35R
- Brand:
- NTN
Subtotal (1 unit)*
£79.01
(exc. VAT)
£94.81
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £79.01 |
*price indicative
- RS Stock No.:
- 453-947
- Mfr. Part No.:
- NK80/35R
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 80 mm | |
| Race Width | 35mm | |
| Bore Type | Round | |
| Cage Material | Steel | |
| Roller Material | Steel | |
| Series | NK80/35R | |
| Internal Clearance | CN | |
| Bearing Material | High Carbon Chrome Steel | |
| Outside Diameter | 95 mm | |
| Dynamic Load Rating | 79.5kN | |
| End Type | Open | |
| Standards/Approvals | RoHS | |
| Maximum Speed - Oil | 5000rpm | |
| Maximum Speed - Grease | 3300rpm | |
| Static Load Rating | 184kN | |
| Number of Rows | 1 | |
| Limiting Speed | 5000rpm | |
| Bearing Type | Machined-ring, Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 80 mm | ||
Race Width 35mm | ||
Bore Type Round | ||
Cage Material Steel | ||
Roller Material Steel | ||
Series NK80/35R | ||
Internal Clearance CN | ||
Bearing Material High Carbon Chrome Steel | ||
Outside Diameter 95 mm | ||
Dynamic Load Rating 79.5kN | ||
End Type Open | ||
Standards/Approvals RoHS | ||
Maximum Speed - Oil 5000rpm | ||
Maximum Speed - Grease 3300rpm | ||
Static Load Rating 184kN | ||
Number of Rows 1 | ||
Limiting Speed 5000rpm | ||
Bearing Type Machined-ring, Needle Roller | ||
- COO (Country of Origin):
- JP
The NTN Needle roller bearing with a machined ring is designed to deliver reliable performance in various applications. This particular model excels in providing robust support while maintaining efficient operation, thanks largely to its double-side ribs and lubrication hole, which ensure proper lubrication for enhanced longevity. Its precision class P0 guarantees that users will experience dependable and consistent performance. With a mass of 0.425 kg, this bearing is lightweight yet sturdy, making it an excellent choice for setups that demand both strength and efficiency. The operating temperature range from -20 °C to 120 °C further signifies its versatility in diverse environments.
Radial clearance class ensures optimal performance under varying loads
Max shaft and housing fillet radius for improved fitting and safety
Designed to perform at high speeds with grease and oil lubrication
Composed of high-quality 100Cr6 steel for superior durability
