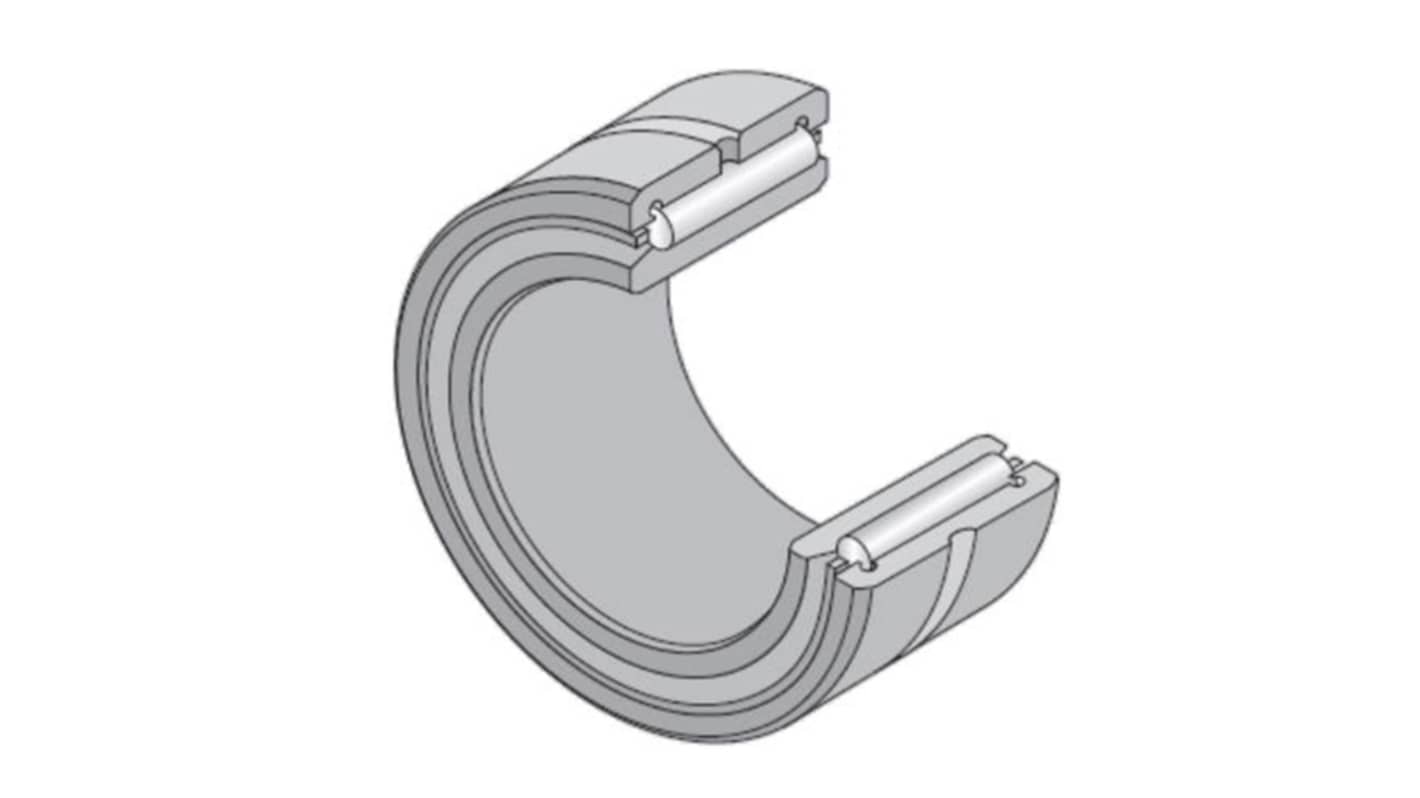

NTN NK80/25R+1R70X80X25 70 mm I.D Needle Roller Bearing Needle Roller, 95 mm O.D
- RS Stock No.:
- 455-336
- Mfr. Part No.:
- NK80/25R+1R70X80X25
- Brand:
- NTN
Subtotal (1 unit)*
£89.05
(exc. VAT)
£106.86
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £89.05 |
*price indicative
- RS Stock No.:
- 455-336
- Mfr. Part No.:
- NK80/25R+1R70X80X25
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 70 mm | |
| Race Width | 25mm | |
| Bore Type | Round | |
| Cage Material | Steel | |
| Roller Material | Steel | |
| Series | NK | |
| Internal Clearance | CN | |
| Static Load Rating | 119kN | |
| Number of Rows | 1 | |
| Bearing Material | High Carbon Chrome Steel | |
| Limiting Speed | 5000rpm | |
| Standards/Approvals | RoHS | |
| Maximum Speed - Oil | 5000rpm | |
| Maximum Speed - Grease | 3300rpm | |
| End Type | Open | |
| Dynamic Load Rating | 57kN | |
| Outside Diameter | 95 mm | |
| Bearing Type | Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 70 mm | ||
Race Width 25mm | ||
Bore Type Round | ||
Cage Material Steel | ||
Roller Material Steel | ||
Series NK | ||
Internal Clearance CN | ||
Static Load Rating 119kN | ||
Number of Rows 1 | ||
Bearing Material High Carbon Chrome Steel | ||
Limiting Speed 5000rpm | ||
Standards/Approvals RoHS | ||
Maximum Speed - Oil 5000rpm | ||
Maximum Speed - Grease 3300rpm | ||
End Type Open | ||
Dynamic Load Rating 57kN | ||
Outside Diameter 95 mm | ||
Bearing Type Needle Roller | ||
- COO (Country of Origin):
- JP
The NTN Needle roller bearing, designed with machined rings and an inner ring, ensures robust performance across various applications. The meticulous construction features double-side ribs for enhanced stability, while the integrated lubrication hole facilitates efficient maintenance. Ideal for demanding environments, this bearing combines precision engineering with practical design, making it a reliable choice for both professional and industrial use. Its compact dimensions allow for easy installation in tight spaces without compromising on strength or durability. With the ability to withstand substantial loads and varying temperature ranges, this needle roller bearing is built to last, ensuring longevity and reliability in your machinery.
Offers a lubrication hole to promote consistent performance
Manufactured with precision for optimal load distribution
Endures extreme temperatures, providing reliability in diverse conditions
Compact design enables seamless integration into your systems
Equipped with double-side ribs for improved stability and support
Rated for both dynamic and static load applications
