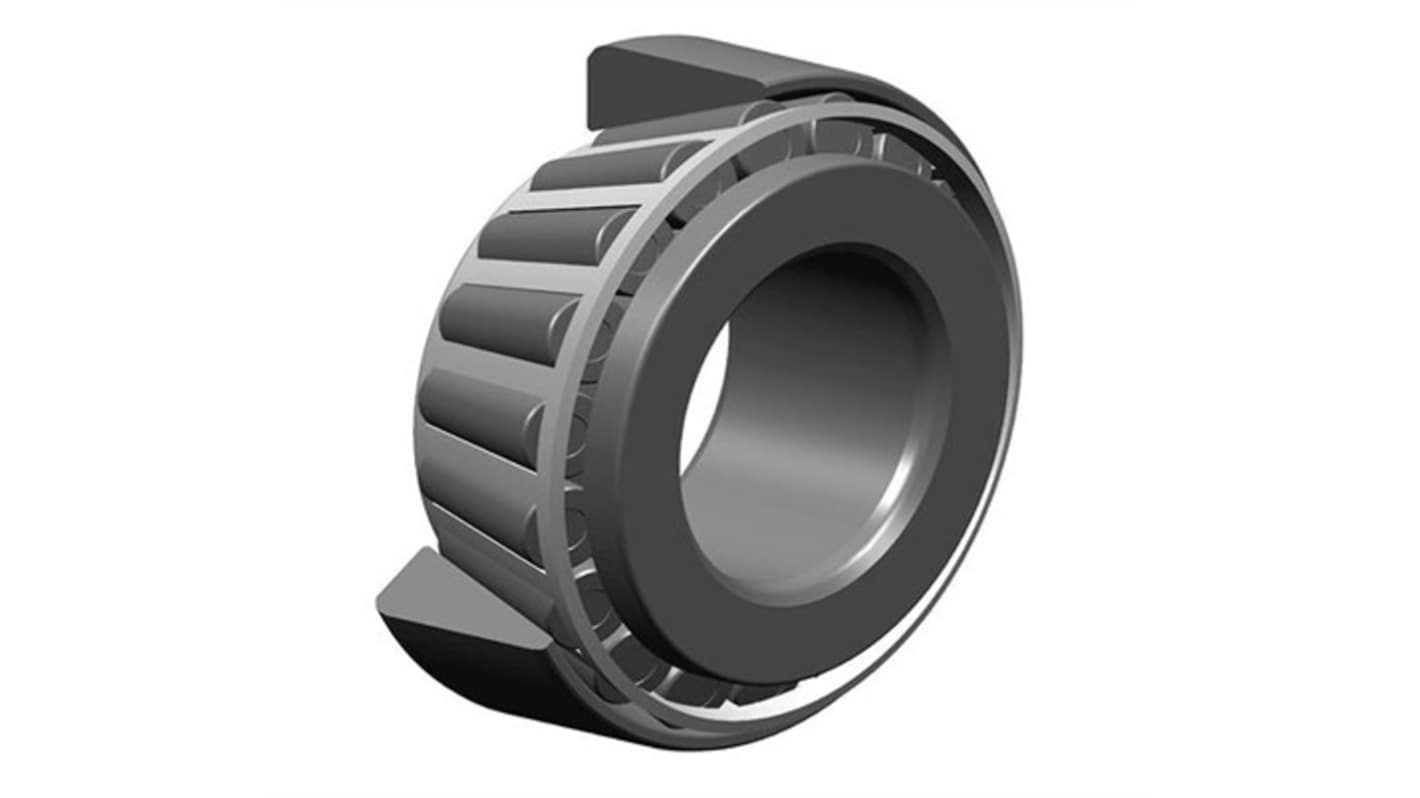

NTN 32212U Taper Roller 60 mm I.D Taper Roller Bearing, 110 mm O.D
- RS Stock No.:
- 454-922
- Mfr. Part No.:
- 32212U
- Brand:
- NTN
Subtotal (1 unit)*
£47.10
(exc. VAT)
£56.52
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £47.10 |
*price indicative
- RS Stock No.:
- 454-922
- Mfr. Part No.:
- 32212U
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Taper Roller Bearing | |
| Inside Diameter | 60 mm | |
| Bore Type | Round | |
| Cage Material | Pressed Steel | |
| Roller Material | Steel | |
| Maximum Speed - Oil | 4500rpm | |
| Maximum Speed - Grease | 3400rpm | |
| Limiting Speed | 4500rpm | |
| Standards/Approvals | ISO 355 | |
| Bearing Dynamic Load Rating | 144 KN | |
| End Type | Open | |
| Outside Diameter | 110 mm | |
| Bearing Material | Through Hardened Steel | |
| Static Load Rating | 164kN | |
| Series | 32212U | |
| Cone Width | 28mm | |
| Number of Rows | 1 | |
| Cup Width | 24mm | |
| Bearing Type | Taper Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Taper Roller Bearing | ||
Inside Diameter 60 mm | ||
Bore Type Round | ||
Cage Material Pressed Steel | ||
Roller Material Steel | ||
Maximum Speed - Oil 4500rpm | ||
Maximum Speed - Grease 3400rpm | ||
Limiting Speed 4500rpm | ||
Standards/Approvals ISO 355 | ||
Bearing Dynamic Load Rating 144 KN | ||
End Type Open | ||
Outside Diameter 110 mm | ||
Bearing Material Through Hardened Steel | ||
Static Load Rating 164kN | ||
Series 32212U | ||
Cone Width 28mm | ||
Number of Rows 1 | ||
Cup Width 24mm | ||
Bearing Type Taper Roller | ||
- COO (Country of Origin):
- JP
The NTN Single Row Tapered Roller Bearing epitomises precision engineering and reliability, designed specifically to withstand the rigours of demanding applications. Crafted with a pressed steel cage, it ensures optimal performance in challenging conditions. The robust internal and external diameter configurations allow for superior load distribution while minimising wear and tear. This bearing is particularly well-suited for heavy-duty machinery, providing a reliable solution that enhances operational efficiency and lifespan. Its incorporation of high-quality materials, including Acier 100Cr6 for the rolling elements, guarantees longevity and effectiveness in both oil and grease lubrication environments. With essential performance characteristics such as a maximum operating temperature of 120°C, this tapered roller bearing is built to perform while delivering precise motion and robust support in various industrial applications.
Optimised for heavy loads, ensuring enhanced durability
Pressed steel cage design for improved stability
Exceptional high-temperature resistance supports varied operating conditions
Designed to reduce friction and wear for longer service life
Efficiently accommodates axial and radial loads in a compact design
Versatile application across numerous machinery sectors
