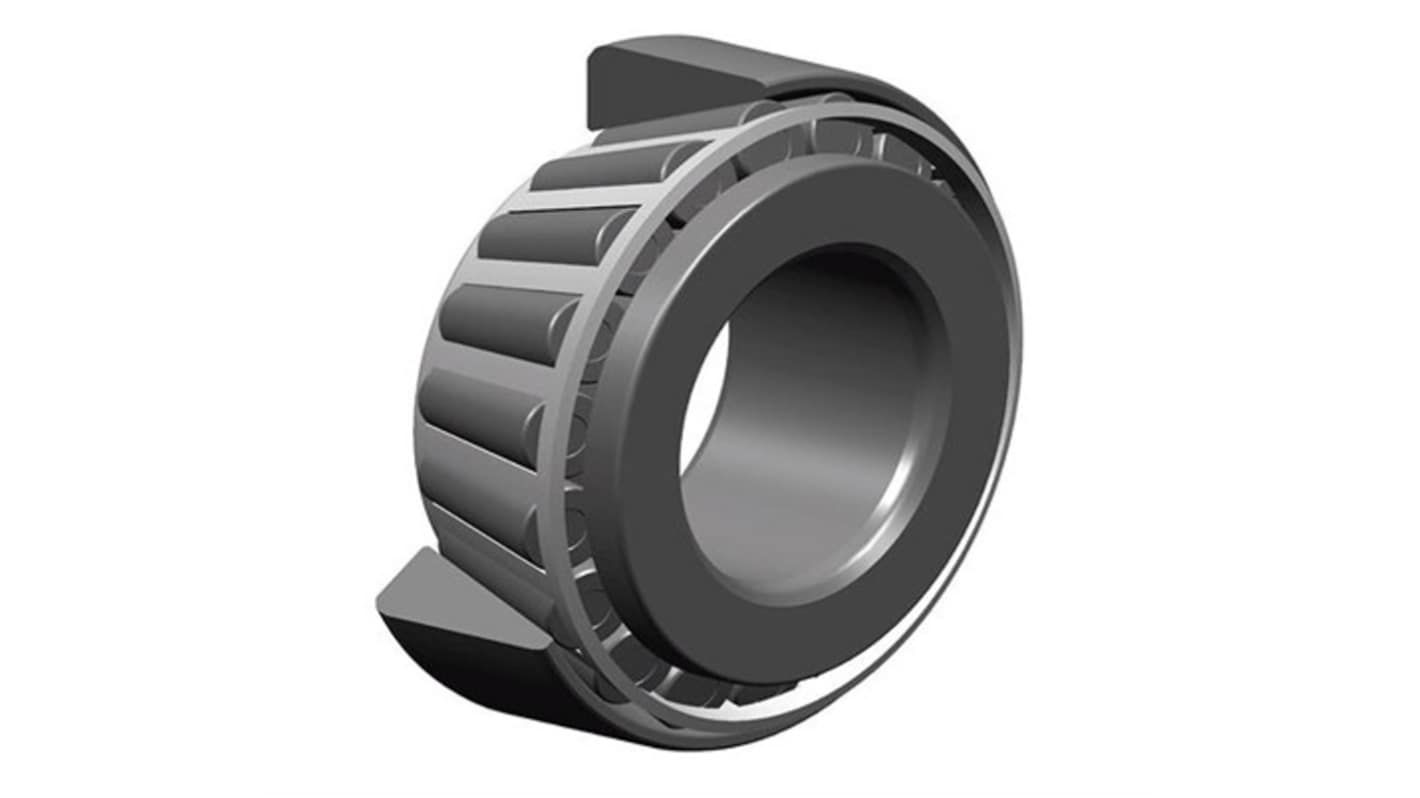

NTN 33212U Taper Roller 60 mm ID Taper Roller Bearing, 110 mm OD
- RS Stock No.:
- 453-412
- Mfr. Part No.:
- 33212U
- Brand:
- NTN
Subtotal (1 unit)*
£76.86
(exc. VAT)
£92.23
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £76.86 |
*price indicative
- RS Stock No.:
- 453-412
- Mfr. Part No.:
- 33212U
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Taper Roller Bearing | |
| Inside Diameter | 60 mm | |
| Bore Type | Round | |
| Roller Material | Steel | |
| Cage Material | Pressed Steel | |
| Number of Rows | 1 | |
| Outside Diameter | 110 mm | |
| Cup Width | 29mm | |
| Static Load Rating | 223kN | |
| Series | 33212U | |
| Bearing Material | Through Hardened Steel | |
| Cone Width | 38mm | |
| Limiting Speed | 4500rpm | |
| Maximum Speed - Grease | 3400rpm | |
| End Type | Open | |
| Maximum Speed - Oil | 4500rpm | |
| Standards/Approvals | ISO 355 | |
| Bearing Dynamic Load Rating | 179 KN | |
| Bearing Type | Taper Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Taper Roller Bearing | ||
Inside Diameter 60 mm | ||
Bore Type Round | ||
Roller Material Steel | ||
Cage Material Pressed Steel | ||
Number of Rows 1 | ||
Outside Diameter 110 mm | ||
Cup Width 29mm | ||
Static Load Rating 223kN | ||
Series 33212U | ||
Bearing Material Through Hardened Steel | ||
Cone Width 38mm | ||
Limiting Speed 4500rpm | ||
Maximum Speed - Grease 3400rpm | ||
End Type Open | ||
Maximum Speed - Oil 4500rpm | ||
Standards/Approvals ISO 355 | ||
Bearing Dynamic Load Rating 179 KN | ||
Bearing Type Taper Roller | ||
- COO (Country of Origin):
- JP
The NTN Single Row Tapered Roller Bearing is engineered to provide robust performance in a variety of industrial applications. With its precision design and superior materials, this bearing guarantees reliability and longevity in demanding environments. The meticulously crafted tapered roller geometry optimally distributes loads, making it ideal for accommodating radial and axial forces in one direction. This product excels in its ability to maintain structural integrity under high-stress situations, ensuring smooth operation and reduced maintenance requirements. Excellent lubrication properties further enhance its performance, allowing for efficiency even at elevated temperatures. Designed for use in diverse machinery, it is an essential component for those seeking durability and effectiveness in their applications.
Optimised design for enhanced load distribution
Robust construction for extended service life
Excellent performance at high operating temperatures
Efficient lubrication capabilities to reduce friction
Compact size allows for versatile installation
Ideal for a multitude of industrial applications
