NTN HK1216LL/2AS 12 mm ID Needle Roller Bearing Drawn Cup Needle Roller, 18 mm OD
- RS Stock No.:
- 454-734
- Mfr. Part No.:
- HK1216LL/2AS
- Brand:
- NTN
Subtotal (1 unit)*
£5.22
(exc. VAT)
£6.26
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5.22 |
*price indicative
- RS Stock No.:
- 454-734
- Mfr. Part No.:
- HK1216LL/2AS
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 12 mm | |
| Race Width | 16mm | |
| Bore Type | Round | |
| Roller Material | Steel | |
| Cage Material | Steel | |
| Dynamic Load Rating | 6.6kN | |
| End Type | Open | |
| Series | HK | |
| Bearing Material | Steel | |
| Number of Rows | 1 | |
| Limiting Speed | 10000rpm | |
| Static Load Rating | 7.3kN | |
| Internal Clearance | CN | |
| Standards/Approvals | RoHS | |
| Maximum Speed - Grease | 10000rpm | |
| Outside Diameter | 18 mm | |
| Bearing Type | Drawn Cup Needle Roller | |
| Race Type | Drawn Cup | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 12 mm | ||
Race Width 16mm | ||
Bore Type Round | ||
Roller Material Steel | ||
Cage Material Steel | ||
Dynamic Load Rating 6.6kN | ||
End Type Open | ||
Series HK | ||
Bearing Material Steel | ||
Number of Rows 1 | ||
Limiting Speed 10000rpm | ||
Static Load Rating 7.3kN | ||
Internal Clearance CN | ||
Standards/Approvals RoHS | ||
Maximum Speed - Grease 10000rpm | ||
Outside Diameter 18 mm | ||
Bearing Type Drawn Cup Needle Roller | ||
Race Type Drawn Cup | ||
- COO (Country of Origin):
- JP

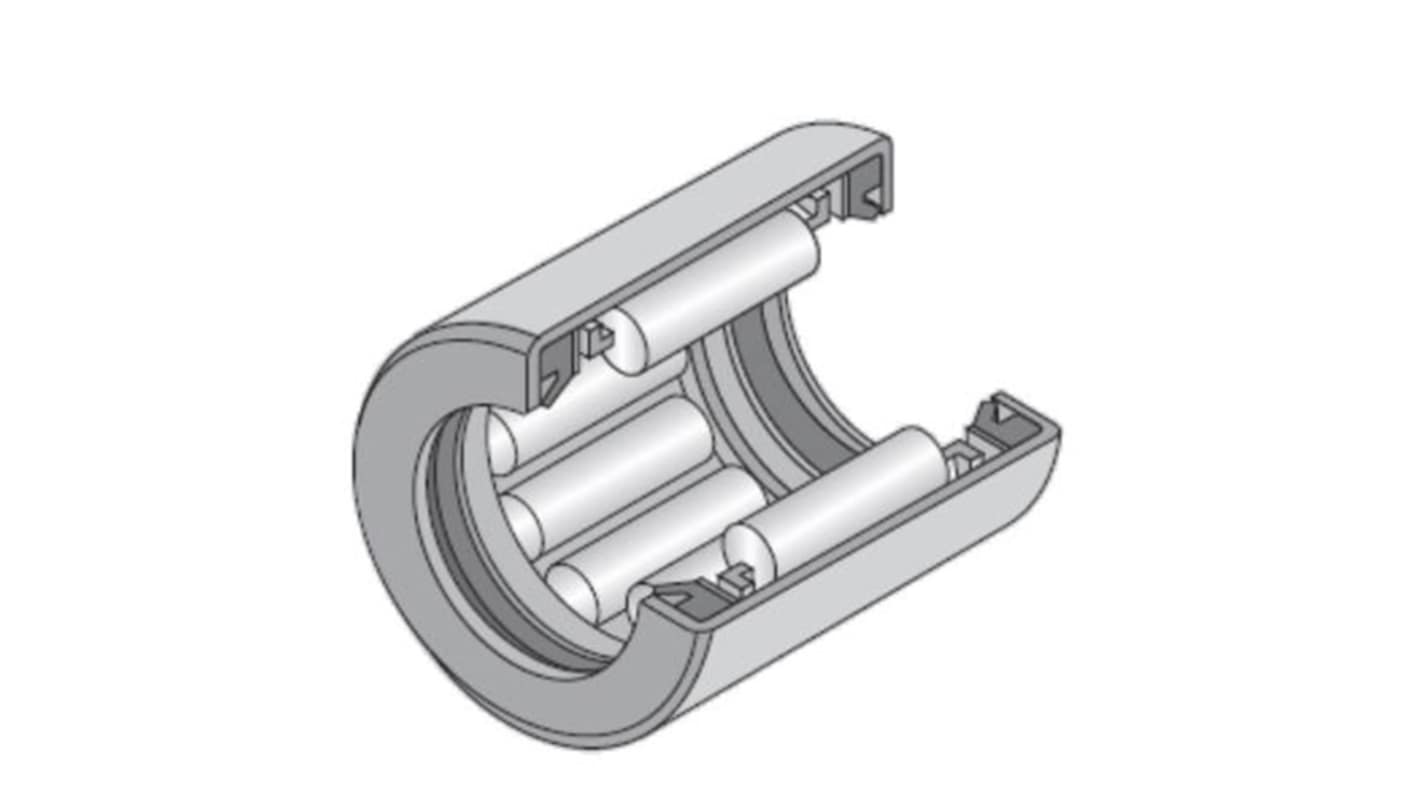

The NTN Drawn Cup Needle Roller Bearing features a thin-walled, high-strength outer ring with open ends, allowing the shaft to pass through. It offers high radial load capacity in a compact design. This bearing is ideal for applications with limited space and where efficient load handling is essential.
Steel 100Cr6 rolling element material
Durable construction
Smooth rotation
High radial load capacity
