NTN HK1814L/3AS 18 mm ID Needle Roller Thrust Bearing Drawn Cup Needle Roller, 24 mm OD
- RS Stock No.:
- 454-753
- Mfr. Part No.:
- HK1814L/3AS
- Brand:
- NTN
Subtotal (1 unit)*
£5.12
(exc. VAT)
£6.14
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5.12 |
*price indicative
- RS Stock No.:
- 454-753
- Mfr. Part No.:
- HK1814L/3AS
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Thrust Bearing | |
| Inside Diameter | 18mm | |
| Race Width | 14mm | |
| Bore Type | Round | |
| Roller Material | Steel | |
| Cage Material | Steel | |
| Outside Diameter | 24mm | |
| Bearing Material | Steel | |
| Number of Rows | 1 | |
| Limiting Speed | 9000rpm | |
| End Type | Open | |
| Standards/Approvals | RoHS | |
| Series | HK1814L/3AS | |
| Maximum Speed - Grease | 9000rpm | |
| Internal Clearance | CN | |
| Static Load Rating | 10.9kN | |
| Dynamic Load Rating | 8.3kN | |
| Bearing Type | Drawn Cup Needle Roller | |
| Race Type | Drawn Cup | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Thrust Bearing | ||
Inside Diameter 18mm | ||
Race Width 14mm | ||
Bore Type Round | ||
Roller Material Steel | ||
Cage Material Steel | ||
Outside Diameter 24mm | ||
Bearing Material Steel | ||
Number of Rows 1 | ||
Limiting Speed 9000rpm | ||
End Type Open | ||
Standards/Approvals RoHS | ||
Series HK1814L/3AS | ||
Maximum Speed - Grease 9000rpm | ||
Internal Clearance CN | ||
Static Load Rating 10.9kN | ||
Dynamic Load Rating 8.3kN | ||
Bearing Type Drawn Cup Needle Roller | ||
Race Type Drawn Cup | ||
- COO (Country of Origin):
- JP

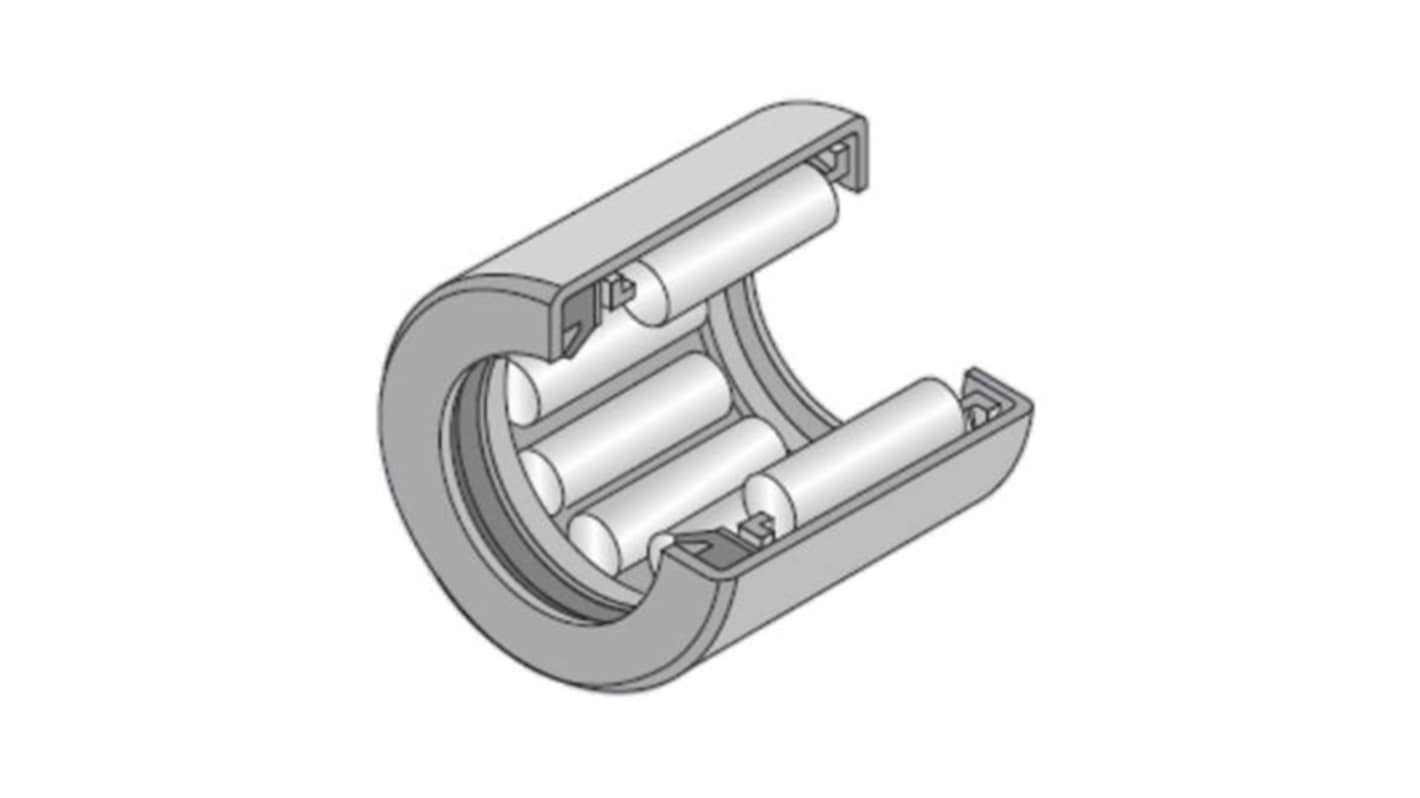

The NTN Drawn Cup Needle Roller Bearing features a thin-walled, high-strength outer ring with open ends, allowing the shaft to pass through. It offers high radial load capacity in a compact design. This bearing is ideal for applications with limited space and where efficient load handling is essential.
Steel 100Cr6 rolling element material
Durable construction
Smooth rotation
High radial load capacity
