NTN HK2020LL/2AS 20 mm I.D Needle Roller Bearing Drawn Cup Needle Roller, 26 mm O.D
- RS Stock No.:
- 453-682
- Mfr. Part No.:
- HK2020LL/2AS
- Brand:
- NTN
Subtotal (1 unit)*
£6.73
(exc. VAT)
£8.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £6.73 |
*price indicative
- RS Stock No.:
- 453-682
- Mfr. Part No.:
- HK2020LL/2AS
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 20 mm | |
| Race Width | 20mm | |
| Bore Type | Open End | |
| Roller Material | Steel | |
| Cage Material | Steel | |
| Outside Diameter | 26 mm | |
| Maximum Speed - Grease | 8000rpm | |
| Dynamic Load Rating | 13kN | |
| Bearing Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 20.1kN | |
| Limiting Speed | 8000rpm | |
| Series | HK | |
| Internal Clearance | CN | |
| Standards/Approvals | RoHS | |
| End Type | Open | |
| Bearing Type | Drawn Cup Needle Roller | |
| Race Type | Drawn Cup | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 20 mm | ||
Race Width 20mm | ||
Bore Type Open End | ||
Roller Material Steel | ||
Cage Material Steel | ||
Outside Diameter 26 mm | ||
Maximum Speed - Grease 8000rpm | ||
Dynamic Load Rating 13kN | ||
Bearing Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 20.1kN | ||
Limiting Speed 8000rpm | ||
Series HK | ||
Internal Clearance CN | ||
Standards/Approvals RoHS | ||
End Type Open | ||
Bearing Type Drawn Cup Needle Roller | ||
Race Type Drawn Cup | ||
- COO (Country of Origin):
- JP

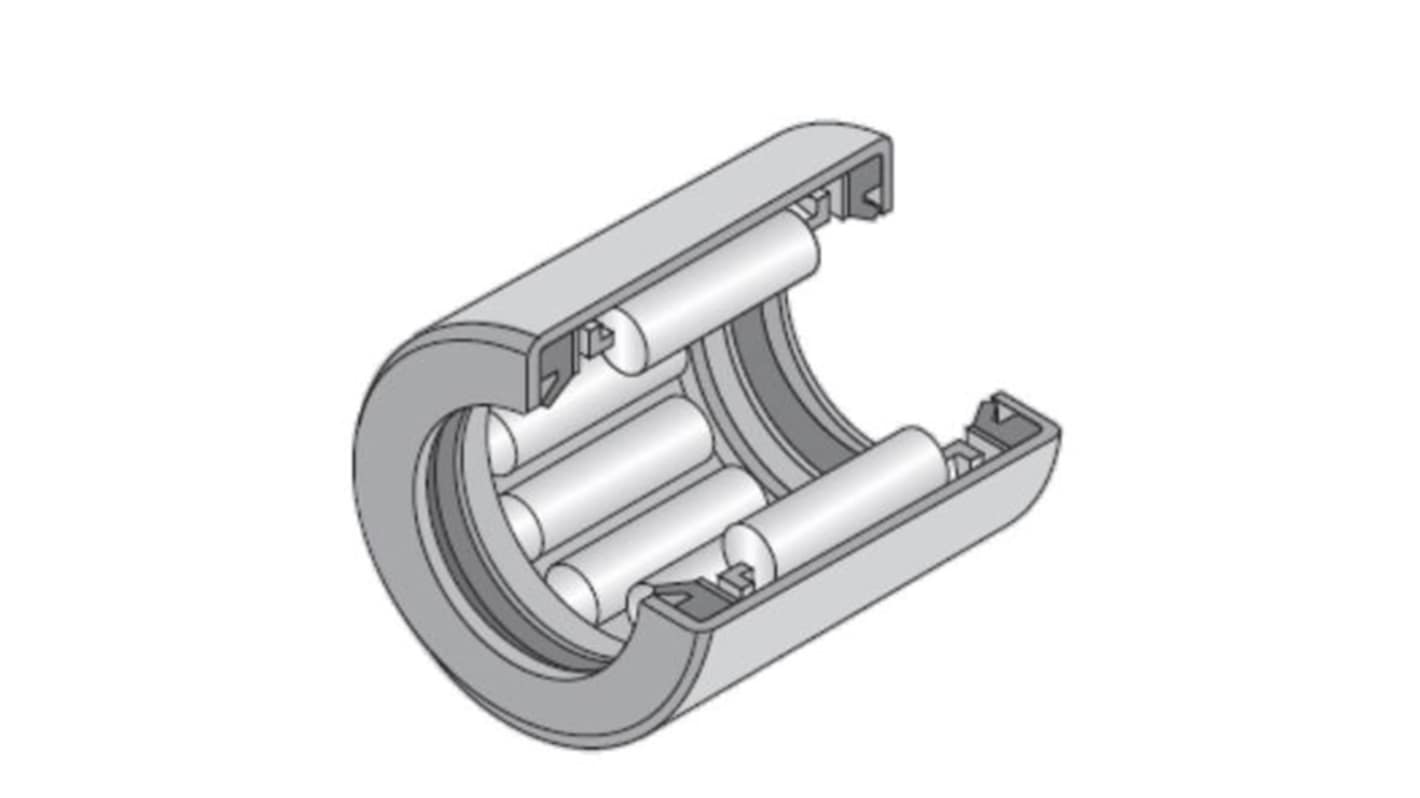

The NTN Drawn Cup Needle Roller Bearing features a thin-walled, high-strength outer ring with open ends, allowing the shaft to pass through. It offers high radial load capacity in a compact design. This bearing is ideal for applications with limited space and where efficient load handling is essential.
Steel 100Cr6 rolling element material
Durable construction
Smooth rotation
High radial load capacity
