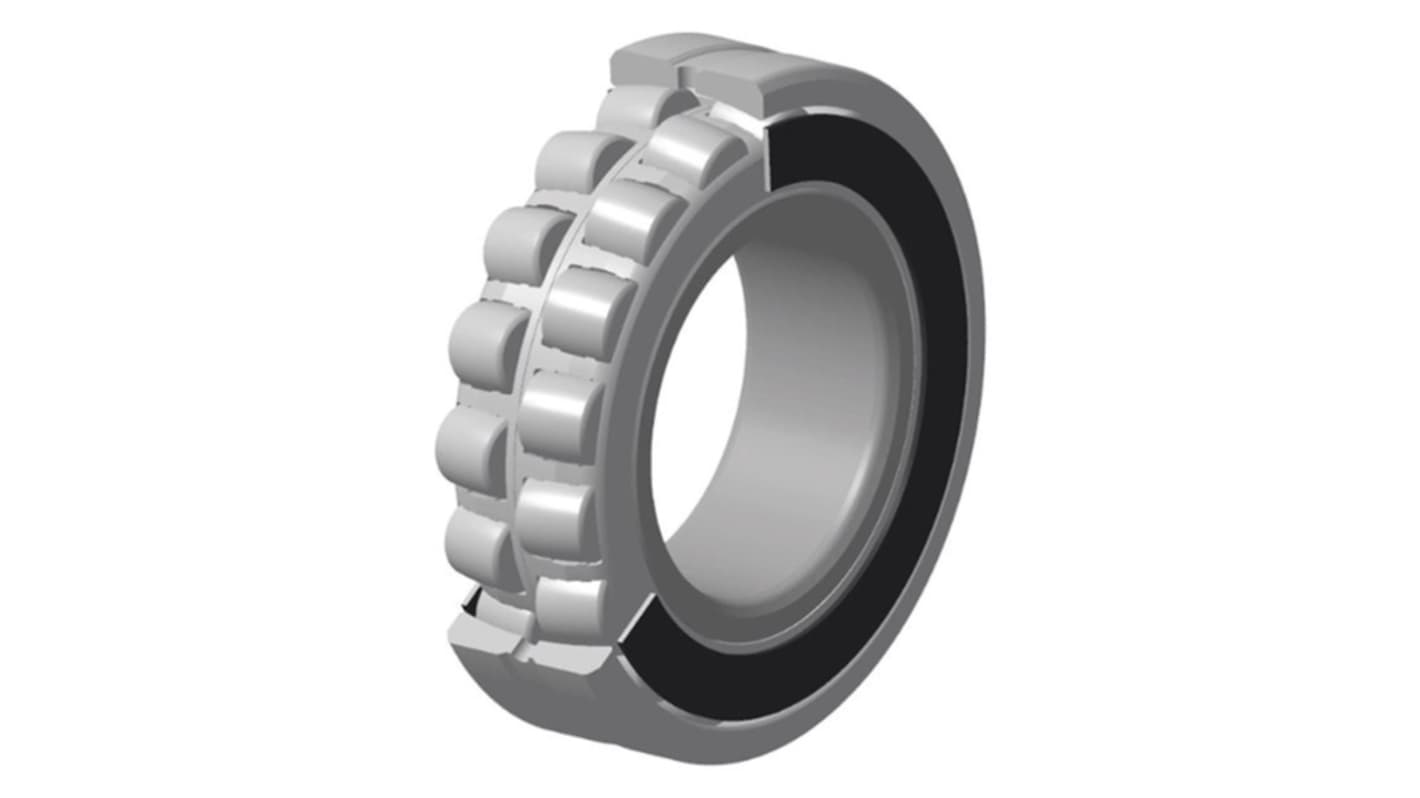

NTN 22218EAW33ZZC3 Cylindrical 90 mm ID Spherical Roller Bearing, 160 mm OD
- RS Stock No.:
- 454-405
- Mfr. Part No.:
- 22218EAW33ZZC3
- Brand:
- NTN
Subtotal (1 unit)*
£281.28
(exc. VAT)
£337.54
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 21 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £281.28 |
*price indicative
- RS Stock No.:
- 454-405
- Mfr. Part No.:
- 22218EAW33ZZC3
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 90mm | |
| Race Width | 40mm | |
| Bore Type | Cylindrical | |
| Series | 22218 | |
| Standards/Approvals | RoHS | |
| Dynamic Load Rating | 384kN | |
| Outside Diameter | 160mm | |
| Limiting Speed | 5100rpm | |
| Number of Rows | 2 | |
| Static Load Rating | 398kN | |
| Internal Clearance | C3 | |
| Race Type | Spherical | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 90mm | ||
Race Width 40mm | ||
Bore Type Cylindrical | ||
Series 22218 | ||
Standards/Approvals RoHS | ||
Dynamic Load Rating 384kN | ||
Outside Diameter 160mm | ||
Limiting Speed 5100rpm | ||
Number of Rows 2 | ||
Static Load Rating 398kN | ||
Internal Clearance C3 | ||
Race Type Spherical | ||
- COO (Country of Origin):
- IT
The NTN Spherical Roller Bearing exemplifies quality engineering and robust construction, designed to ensure reliable performance in demanding applications. With an intricate design, the bearing effectively supports both radial and axial loads, making it ideal for a variety of industrial applications. Its carefully crafted dimensions enhance operational efficiency, while the materials used promise durability and longevity. This bearing caters to the needs of modern machinery, ensuring seamless functionality and minimal maintenance. Additionally, it features a series of lubrication holes, facilitating smooth operation and extending its service life. Take your machinery to the next level with this highly efficient bearing solution, crafted to withstand the rigours of industrial environments.
Provides superior load-carrying capacity for enhanced operational reliability
Designed with three lubrication holes for improved lubrication efficiency
Offers excellent resistance to fatigue, ensuring long-lasting performance
Features a suitable performance range with efficient thermal management capabilities
Optimised for both low and high operating speeds, catering to diverse applications
Ideal for sectors demanding robust and efficient bearing solutions
