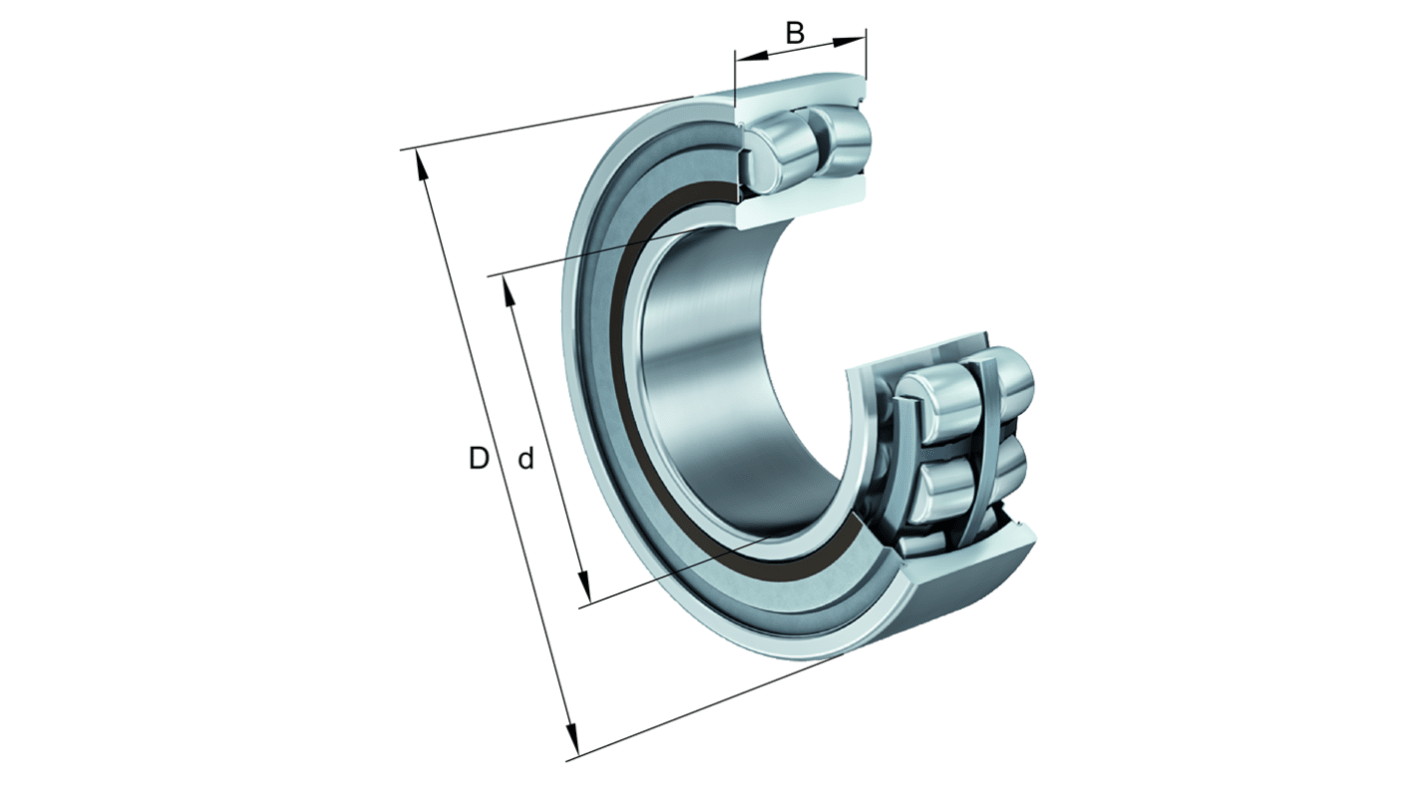

FAG WS22218-E1-XL-2RSR Z Cylindrical 90 mm I.D Spherical Roller Bearing, 160 mm O.D
- RS Stock No.:
- 310-457
- Mfr. Part No.:
- WS22218-E1-XL-2RSR
- Brand:
- FAG
Subtotal (1 unit)*
£391.69
(exc. VAT)
£470.03
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £391.69 |
*price indicative
- RS Stock No.:
- 310-457
- Mfr. Part No.:
- WS22218-E1-XL-2RSR
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 90 mm | |
| Race Width | 48mm | |
| Bore Type | Z Cylindrical | |
| Cage Material | Carbon Steel | |
| Internal Clearance | CN | |
| Series | WS222..-E1 | |
| Static Load Rating | 375000N | |
| Number of Rows | 2 | |
| Bearing Material | Steel | |
| Limiting Speed | 1300rpm | |
| Standards/Approvals | No | |
| Dynamic Load Rating | 345000N | |
| Outside Diameter | 160 mm | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 90 mm | ||
Race Width 48mm | ||
Bore Type Z Cylindrical | ||
Cage Material Carbon Steel | ||
Internal Clearance CN | ||
Series WS222..-E1 | ||
Static Load Rating 375000N | ||
Number of Rows 2 | ||
Bearing Material Steel | ||
Limiting Speed 1300rpm | ||
Standards/Approvals No | ||
Dynamic Load Rating 345000N | ||
Outside Diameter 160 mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The FAG Sealed Spherical Roller Bearing features lip seals on both sides, making it suitable for continuous casting machines. It is equipped with a JPA sheet metal cage and has a normal radial internal clearance (CN, Group N). The operating temperature range extends from -30°C to 100°C.
Lifetime of lubrication ensures freedom from maintenance
Can be grease lubricated
