NTN HK2820LL/3AS 28 mm ID Needle Roller Thrust Bearing Drawn Cup Needle Roller, 35 mm OD
- RS Stock No.:
- 453-701
- Mfr. Part No.:
- HK2820LL/3AS
- Brand:
- NTN
Subtotal (1 unit)*
£7.82
(exc. VAT)
£9.38
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £7.82 |
*price indicative
- RS Stock No.:
- 453-701
- Mfr. Part No.:
- HK2820LL/3AS
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Thrust Bearing | |
| Inside Diameter | 28mm | |
| Race Width | 20mm | |
| Bore Type | Round | |
| Cage Material | Steel | |
| Roller Material | Steel | |
| Outside Diameter | 35mm | |
| Dynamic Load Rating | 17.3kN | |
| End Type | Open | |
| Standards/Approvals | RoHS | |
| Series | HK2820LL/3AS | |
| Bearing Material | Steel | |
| Maximum Speed - Grease | 5500rpm | |
| Limiting Speed | 5500rpm | |
| Number of Rows | 1 | |
| Static Load Rating | 27.6kN | |
| Internal Clearance | CN | |
| Bearing Type | Drawn Cup Needle Roller | |
| Race Type | Drawn Cup | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Thrust Bearing | ||
Inside Diameter 28mm | ||
Race Width 20mm | ||
Bore Type Round | ||
Cage Material Steel | ||
Roller Material Steel | ||
Outside Diameter 35mm | ||
Dynamic Load Rating 17.3kN | ||
End Type Open | ||
Standards/Approvals RoHS | ||
Series HK2820LL/3AS | ||
Bearing Material Steel | ||
Maximum Speed - Grease 5500rpm | ||
Limiting Speed 5500rpm | ||
Number of Rows 1 | ||
Static Load Rating 27.6kN | ||
Internal Clearance CN | ||
Bearing Type Drawn Cup Needle Roller | ||
Race Type Drawn Cup | ||
- COO (Country of Origin):
- JP

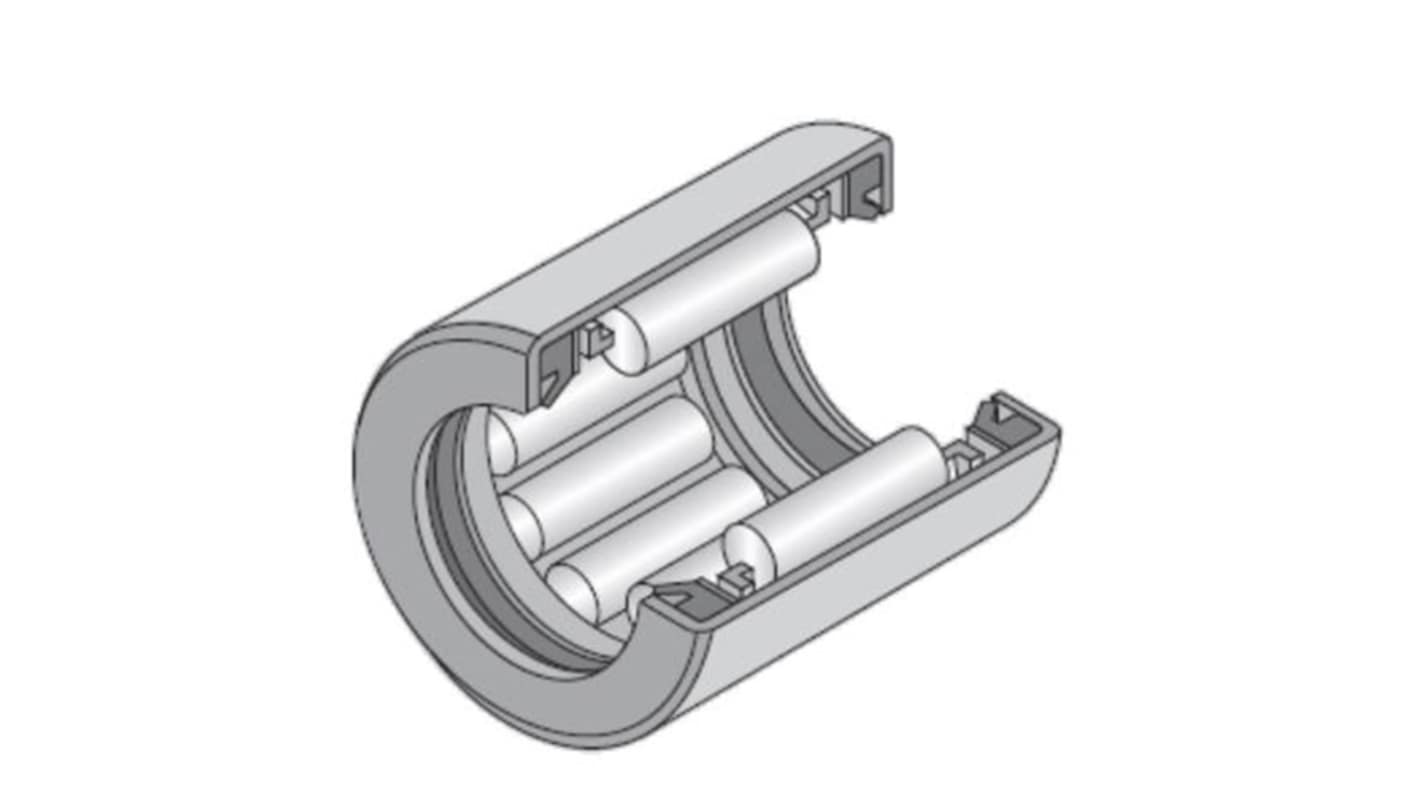

The NTN Drawn Cup Needle Roller Bearing features a thin-walled, high-strength outer ring with open ends, allowing the shaft to pass through. It offers high radial load capacity in a compact design. This bearing is ideal for applications with limited space and where efficient load handling is essential.
Steel 100Cr6 rolling element material
Durable construction
Smooth rotation
High radial load capacity
