NTN HK3516LL/3AS 35 mm ID Needle Roller Thrust Bearing Drawn Cup Needle Roller, 42 mm OD
- RS Stock No.:
- 453-711
- Mfr. Part No.:
- HK3516LL/3AS
- Brand:
- NTN
Subtotal (1 unit)*
£8.78
(exc. VAT)
£10.54
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £8.78 |
*price indicative
- RS Stock No.:
- 453-711
- Mfr. Part No.:
- HK3516LL/3AS
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Thrust Bearing | |
| Inside Diameter | 35mm | |
| Race Width | 16mm | |
| Bore Type | Round | |
| Roller Material | Steel | |
| Cage Material | Steel | |
| Outside Diameter | 42mm | |
| Internal Clearance | CN | |
| Static Load Rating | 22.8kN | |
| Number of Rows | 1 | |
| Bearing Material | Steel | |
| Dynamic Load Rating | 14kN | |
| Maximum Speed - Grease | 4600rpm | |
| Series | HK3516LL/3AS | |
| Standards/Approvals | RoHS | |
| End Type | Open | |
| Limiting Speed | 4600rpm | |
| Bearing Type | Drawn Cup Needle Roller | |
| Race Type | Drawn Cup | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Thrust Bearing | ||
Inside Diameter 35mm | ||
Race Width 16mm | ||
Bore Type Round | ||
Roller Material Steel | ||
Cage Material Steel | ||
Outside Diameter 42mm | ||
Internal Clearance CN | ||
Static Load Rating 22.8kN | ||
Number of Rows 1 | ||
Bearing Material Steel | ||
Dynamic Load Rating 14kN | ||
Maximum Speed - Grease 4600rpm | ||
Series HK3516LL/3AS | ||
Standards/Approvals RoHS | ||
End Type Open | ||
Limiting Speed 4600rpm | ||
Bearing Type Drawn Cup Needle Roller | ||
Race Type Drawn Cup | ||
- COO (Country of Origin):
- JP

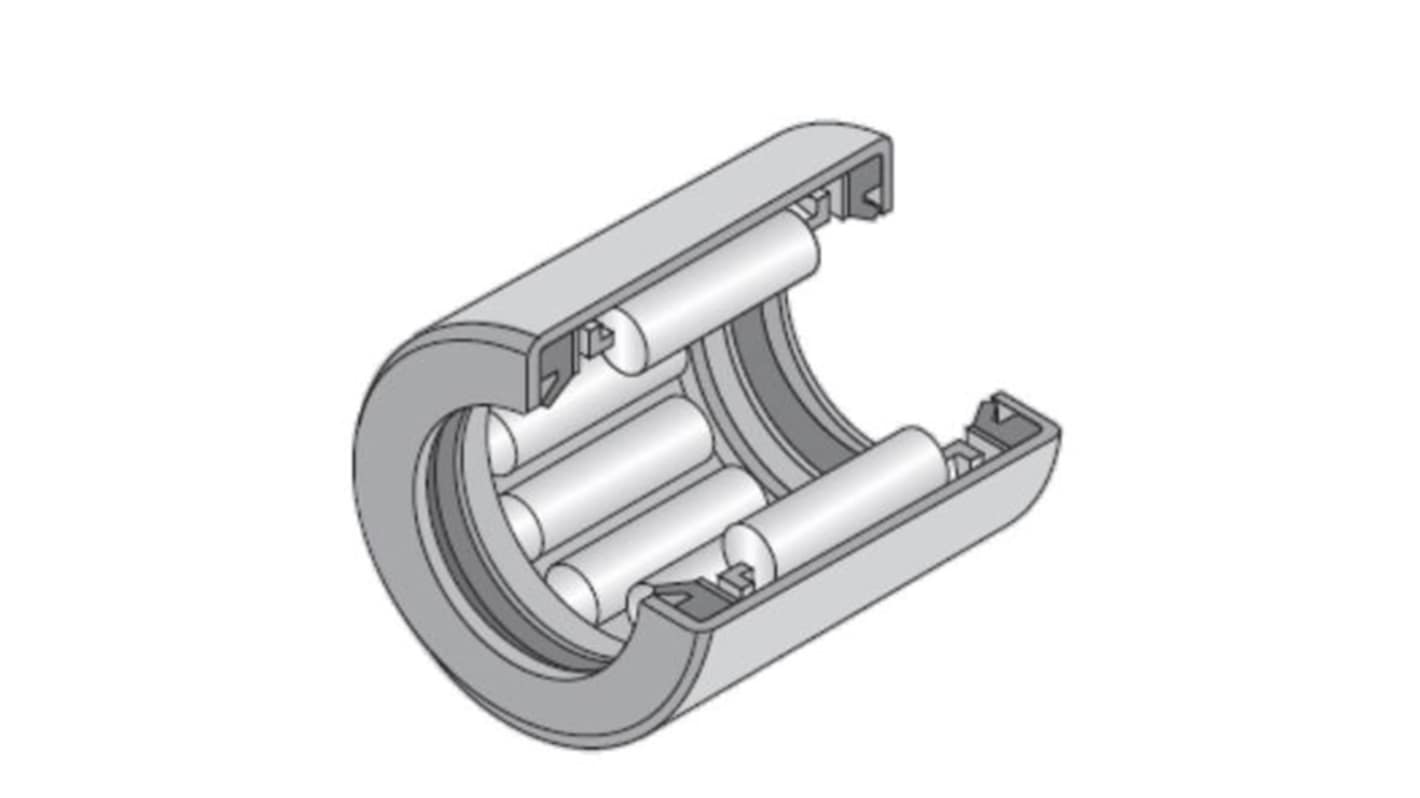

The NTN Drawn Cup Needle Roller Bearing features a thin-walled, high-strength outer ring with open ends, allowing the shaft to pass through. It offers high radial load capacity in a compact design. This bearing is ideal for applications with limited space and where efficient load handling is essential.
Steel 100Cr6 rolling element material
Durable construction
Smooth rotation
High radial load capacity
