NTN HK2816F 28 mm ID Needle Roller Thrust Bearing Drawn Cup Needle Roller, 35 mm OD
- RS Stock No.:
- 453-698
- Mfr. Part No.:
- HK2816F
- Brand:
- NTN
Subtotal (1 unit)*
£5.19
(exc. VAT)
£6.23
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5.19 |
*price indicative
- RS Stock No.:
- 453-698
- Mfr. Part No.:
- HK2816F
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Thrust Bearing | |
| Inside Diameter | 28mm | |
| Race Width | 16mm | |
| Bore Type | Round | |
| Roller Material | Steel | |
| Cage Material | Steel | |
| Static Load Rating | 26.4kN | |
| Internal Clearance | CN | |
| Outside Diameter | 35mm | |
| Dynamic Load Rating | 16.7kN | |
| End Type | Open | |
| Maximum Speed - Grease | 5500rpm | |
| Bearing Material | Steel | |
| Standards/Approvals | RoHS | |
| Series | HK | |
| Maximum Speed - Oil | 8500rpm | |
| Bearing Type | Drawn Cup Needle Roller | |
| Race Type | Drawn Cup | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Thrust Bearing | ||
Inside Diameter 28mm | ||
Race Width 16mm | ||
Bore Type Round | ||
Roller Material Steel | ||
Cage Material Steel | ||
Static Load Rating 26.4kN | ||
Internal Clearance CN | ||
Outside Diameter 35mm | ||
Dynamic Load Rating 16.7kN | ||
End Type Open | ||
Maximum Speed - Grease 5500rpm | ||
Bearing Material Steel | ||
Standards/Approvals RoHS | ||
Series HK | ||
Maximum Speed - Oil 8500rpm | ||
Bearing Type Drawn Cup Needle Roller | ||
Race Type Drawn Cup | ||
- COO (Country of Origin):
- JP

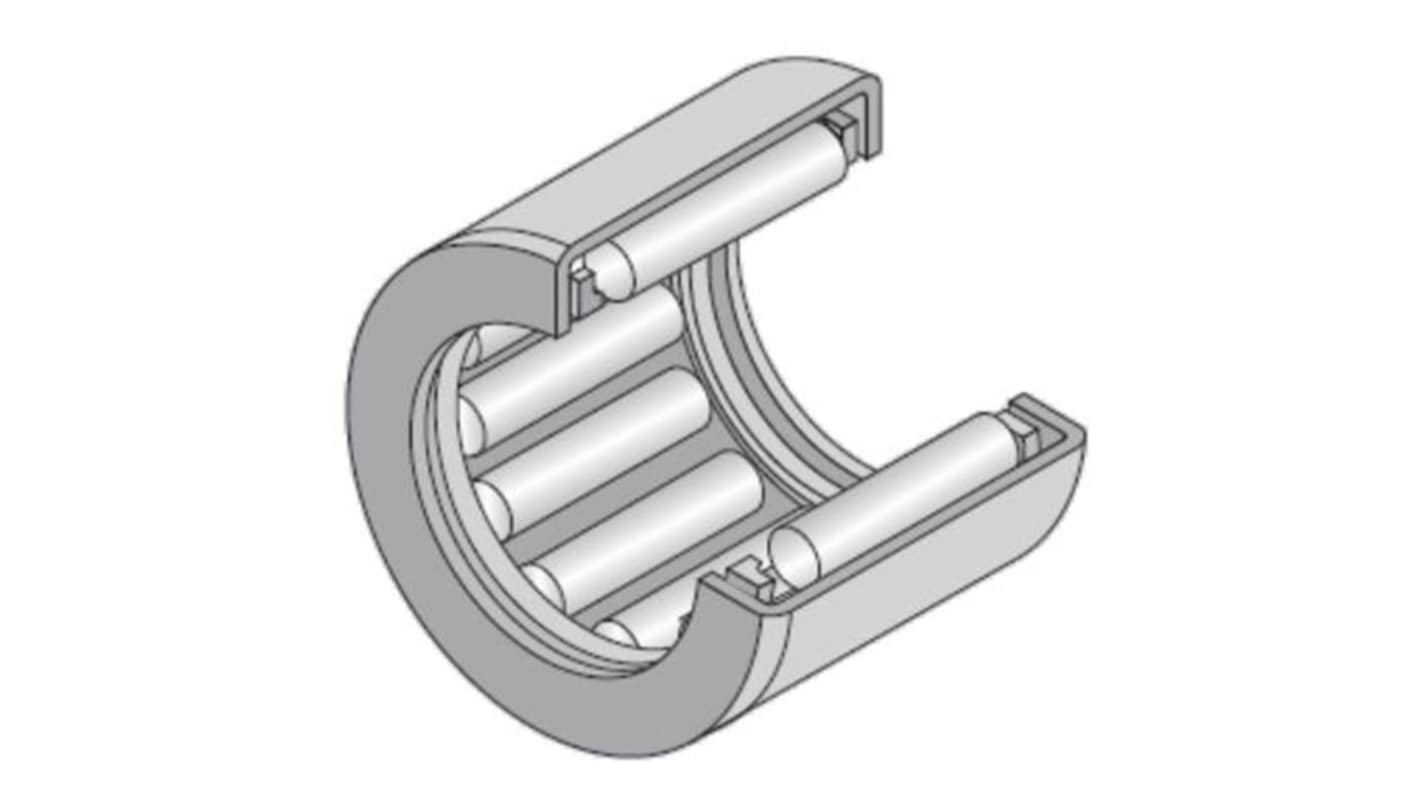

The NTN Drawn Cup Needle Roller Bearing features a thin-walled, high-strength outer ring with open ends, allowing the shaft to pass through. It offers high radial load capacity in a compact design. This bearing is ideal for applications with limited space and where efficient load handling is essential.
Steel 100Cr6 rolling element material
Durable construction
Smooth rotation
High radial load capacity
