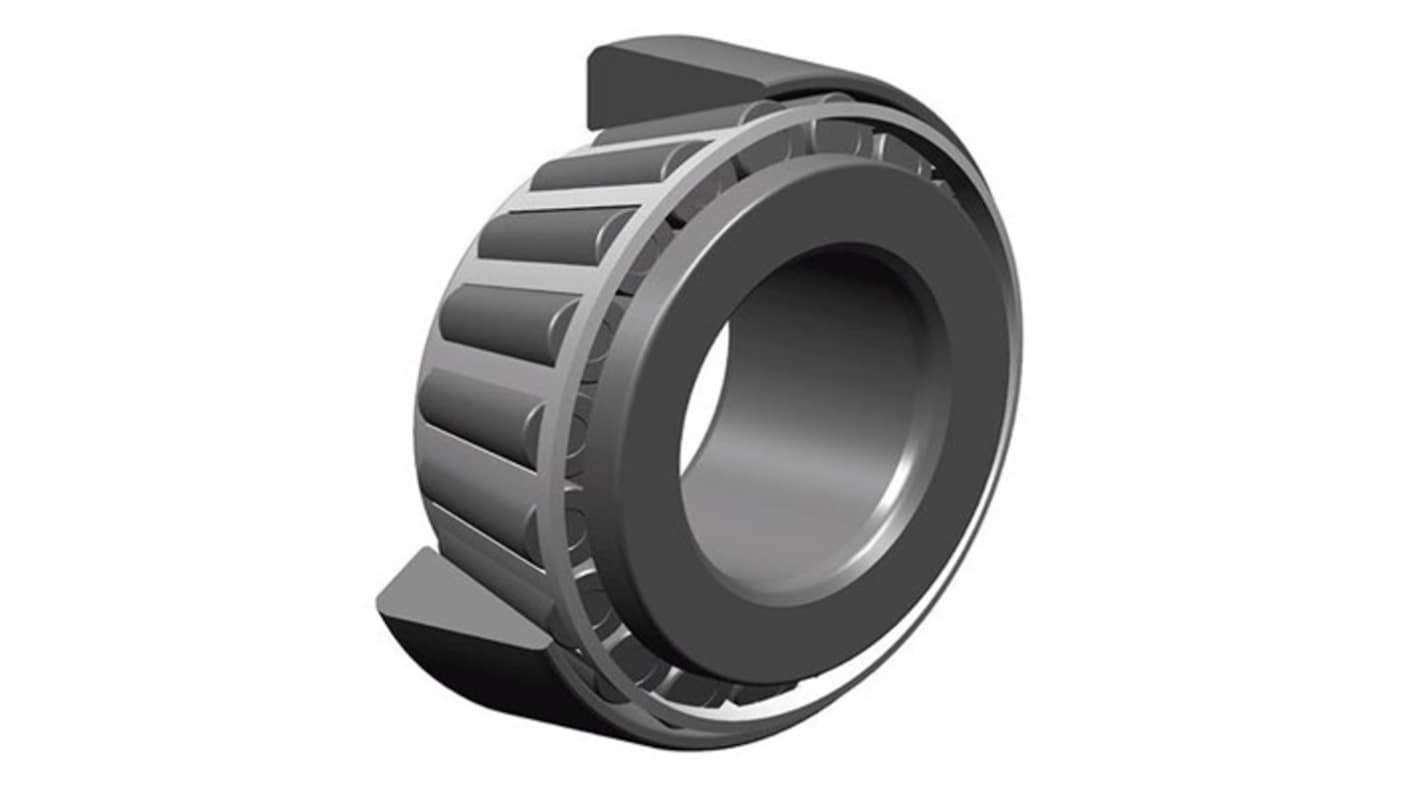

NTN 30314U Taper Roller 70 mm I.D Taper Roller Bearing, 150 mm O.D
- RS Stock No.:
- 453-284
- Mfr. Part No.:
- 30314U
- Brand:
- NTN
Subtotal (1 unit)*
£118.60
(exc. VAT)
£142.32
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £118.60 |
*price indicative
- RS Stock No.:
- 453-284
- Mfr. Part No.:
- 30314U
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Taper Roller Bearing | |
| Inside Diameter | 70 mm | |
| Bore Type | Round | |
| Cage Material | Pressed Steel | |
| Roller Material | Steel | |
| Static Load Rating | 272kN | |
| Series | 30314U | |
| Outside Diameter | 150 mm | |
| Cup Width | 30mm | |
| Number of Rows | 1 | |
| Cone Width | 35mm | |
| Bearing Material | Steel | |
| Maximum Speed - Grease | 2600rpm | |
| Limiting Speed | 3500rpm | |
| End Type | Open | |
| Bearing Dynamic Load Rating | 255 KN | |
| Standards/Approvals | ISO 355 | |
| Maximum Speed - Oil | 3500rpm | |
| Bearing Type | Taper Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Taper Roller Bearing | ||
Inside Diameter 70 mm | ||
Bore Type Round | ||
Cage Material Pressed Steel | ||
Roller Material Steel | ||
Static Load Rating 272kN | ||
Series 30314U | ||
Outside Diameter 150 mm | ||
Cup Width 30mm | ||
Number of Rows 1 | ||
Cone Width 35mm | ||
Bearing Material Steel | ||
Maximum Speed - Grease 2600rpm | ||
Limiting Speed 3500rpm | ||
End Type Open | ||
Bearing Dynamic Load Rating 255 KN | ||
Standards/Approvals ISO 355 | ||
Maximum Speed - Oil 3500rpm | ||
Bearing Type Taper Roller | ||
- COO (Country of Origin):
- JP
The NTN Single Row Tapered Roller Bearing is expertly engineered to deliver exceptional performance in demanding applications. Designed with precision, the bearing features a pressed steel cage that enhances load distribution while ensuring durability. Its robust construction makes it ideal for supporting radial and axial loads, and it operates efficiently in extreme conditions. This product is particularly suitable for various industries requiring reliability and high performance, including automotive and machinery sectors. With impressive dynamic and static load capacities, it guarantees longevity and reduced maintenance, making it an excellent choice for those seeking a long-lasting solution.
Optimised for smooth operation under heavy loads
Designed to withstand a broad range of temperatures
Features a minimum clearance to ensure effective performance
Manufactured with high-quality materials for enhanced reliability
Supports both oil and grease lubrication methods for versatility
Provides excellent fatigue limit load capabilities for extended use
Requires minimal maintenance due to its robust design
Meets stringent industry standards for performance and quality
