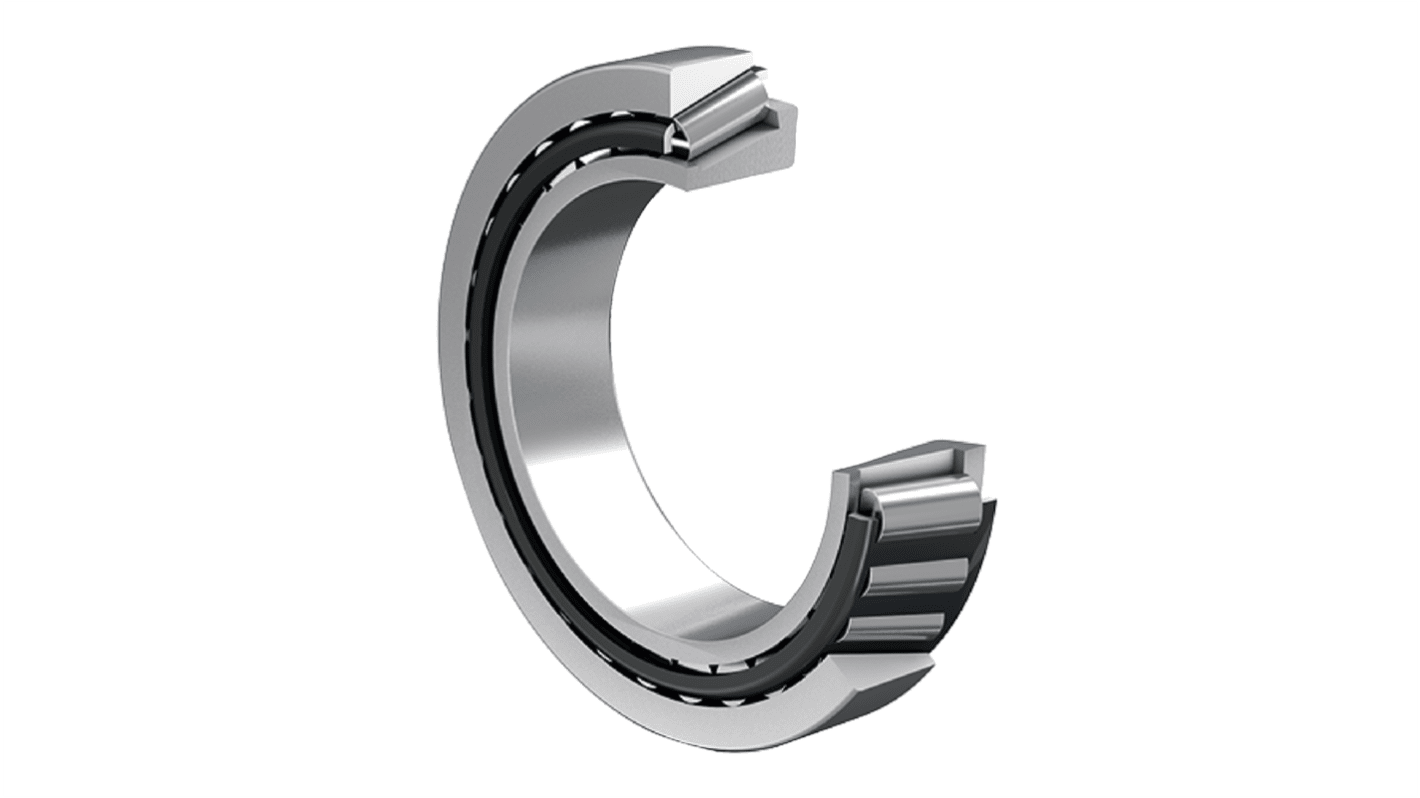

FAG 32314-A Taper Roller 70 mm ID Tapered Roller Bearing, 150 mm OD
- RS Stock No.:
- 310-496
- Mfr. Part No.:
- 32314-A
- Brand:
- FAG
Subtotal (1 unit)*
£193.93
(exc. VAT)
£232.72
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £193.93 |
*price indicative
- RS Stock No.:
- 310-496
- Mfr. Part No.:
- 32314-A
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Tapered Roller Bearing | |
| Inside Diameter | 70 mm | |
| Cage Material | Sheet Steel | |
| Cone Width | 54mm | |
| Bearing Dynamic Load Rating | 310000 N | |
| Static Load Rating | 405000N | |
| Outside Diameter | 150 mm | |
| Bearing Material | Steel | |
| Limiting Speed | 4750rpm | |
| Standards/Approvals | DIN ISO 355/DIN 720 | |
| Number of Rows | 1 | |
| Bearing Type | Taper Roller | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Tapered Roller Bearing | ||
Inside Diameter 70 mm | ||
Cage Material Sheet Steel | ||
Cone Width 54mm | ||
Bearing Dynamic Load Rating 310000 N | ||
Static Load Rating 405000N | ||
Outside Diameter 150 mm | ||
Bearing Material Steel | ||
Limiting Speed 4750rpm | ||
Standards/Approvals DIN ISO 355/DIN 720 | ||
Number of Rows 1 | ||
Bearing Type Taper Roller | ||
- COO (Country of Origin):
- AT
The FAG Tapered Roller Bearing represents a fusion of robust engineering and precision functionality. Designed for reliability, it caters to critical applications where performance cannot be compromised. With its separable design, the bearing can easily be adjusted or paired, ensuring versatility for various machinery needs. The combination of standard heat treatment and a sheet steel cage enhances durability, providing superior performance under demanding conditions.
Standardised dimensions conform to DIN ISO standards for easy integration
Dynamic axial load factor ensures reliable performance under varying loads
Compatible with various machinery designs offering flexibility in application
