FAG 22320-E1-XL Cylindrical 100 mm ID Roller Bearing, 215 mm OD
- RS Stock No.:
- 311-047
- Mfr. Part No.:
- 22320-E1-XL
- Brand:
- FAG
Subtotal (1 unit)*
£634.86
(exc. VAT)
£761.83
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £634.86 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 311-047
- Mfr. Part No.:
- 22320-E1-XL
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Roller Bearing | |
| Inside Diameter | 100mm | |
| Race Width | 73mm | |
| Bore Type | Cylindrical | |
| Cage Material | Carbon Steel | |
| Number of Rows | 2 | |
| Limiting Speed | 3300rpm | |
| Series | 223E1 | |
| Static Load Rating | 920000N | |
| Internal Clearance | CN | |
| Bearing Material | Steel | |
| Outside Diameter | 215mm | |
| Dynamic Load Rating | 810000N | |
| Standards/Approvals | DIN 635-2, RoHS | |
| Better World Claim | Extended Product Life, Saves Energy | |
| Better World Product | Yes | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Roller Bearing | ||
Inside Diameter 100mm | ||
Race Width 73mm | ||
Bore Type Cylindrical | ||
Cage Material Carbon Steel | ||
Number of Rows 2 | ||
Limiting Speed 3300rpm | ||
Series 223E1 | ||
Static Load Rating 920000N | ||
Internal Clearance CN | ||
Bearing Material Steel | ||
Outside Diameter 215mm | ||
Dynamic Load Rating 810000N | ||
Standards/Approvals DIN 635-2, RoHS | ||
Better World Claim Extended Product Life, Saves Energy | ||
Better World Product Yes | ||
- COO (Country of Origin):
- DE

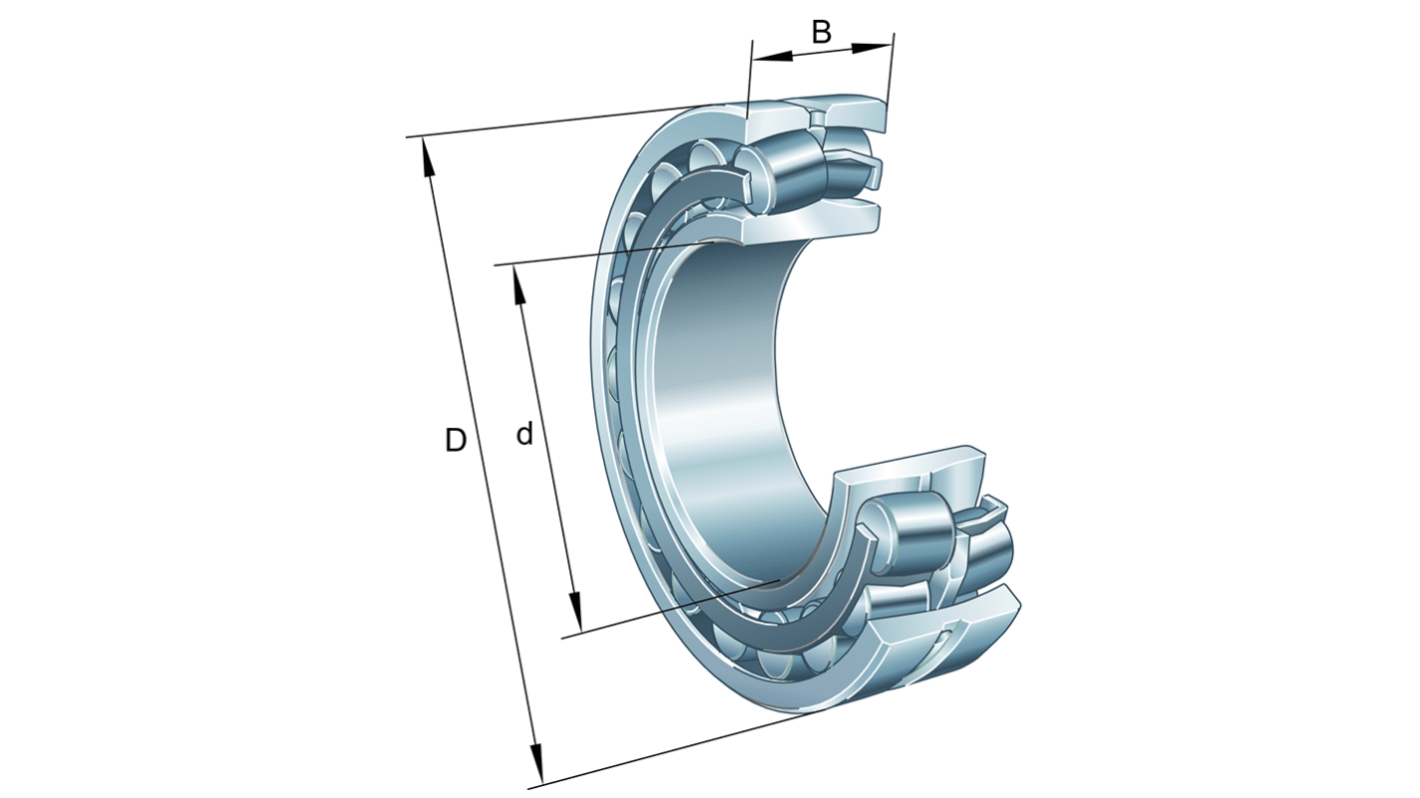

The FAG Spherical Roller Bearing is expertly designed to meet the demands of various industrial applications. With its robust construction and innovative design, it plays a crucial role in ensuring reliable performance and longevity. The bore diameter provides optimal fitting for various machinery, while the advanced radial load capabilities support substantial loads with ease.
Dynamic axial load factors support complex applications
Wide operating temperature range accommodates diverse environments
Not sealed allowing for flexible lubrication options
Facilitates both grease and oil lubrication for adaptability
Minimum diameters and chamfer dimensions are carefully crafted for installation ease
